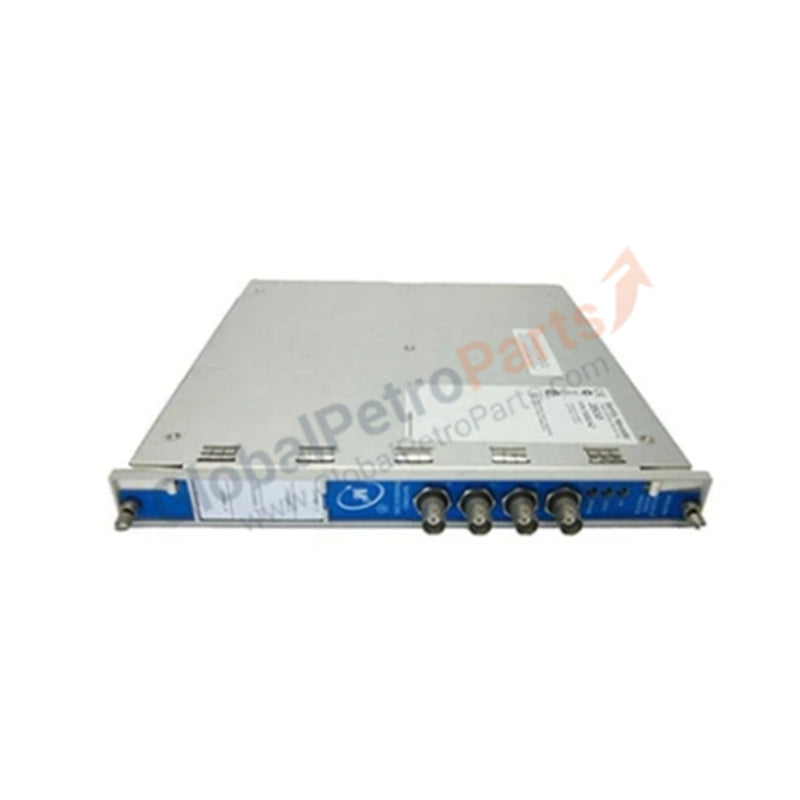

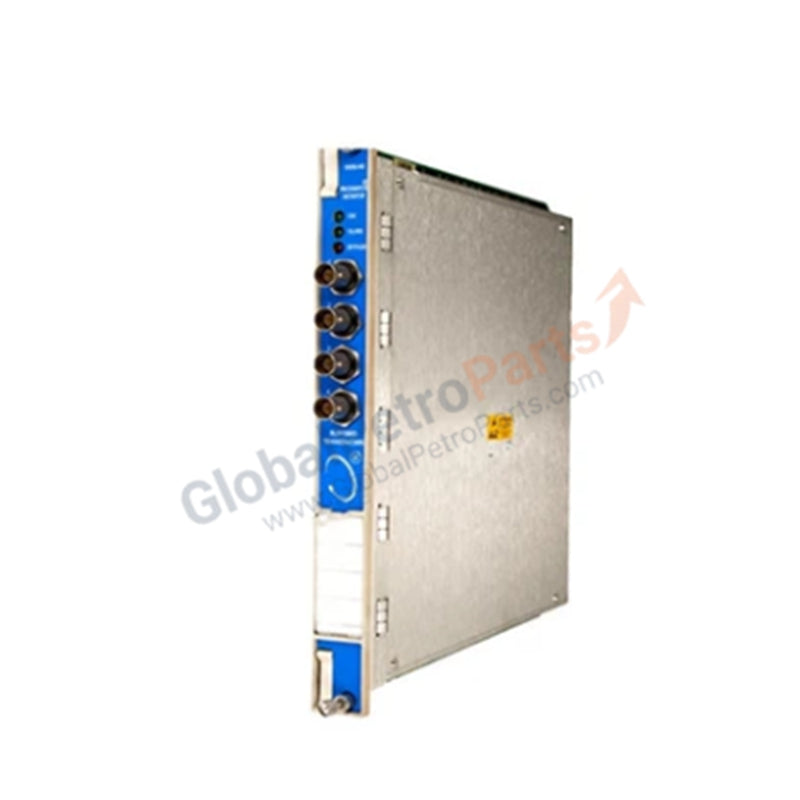

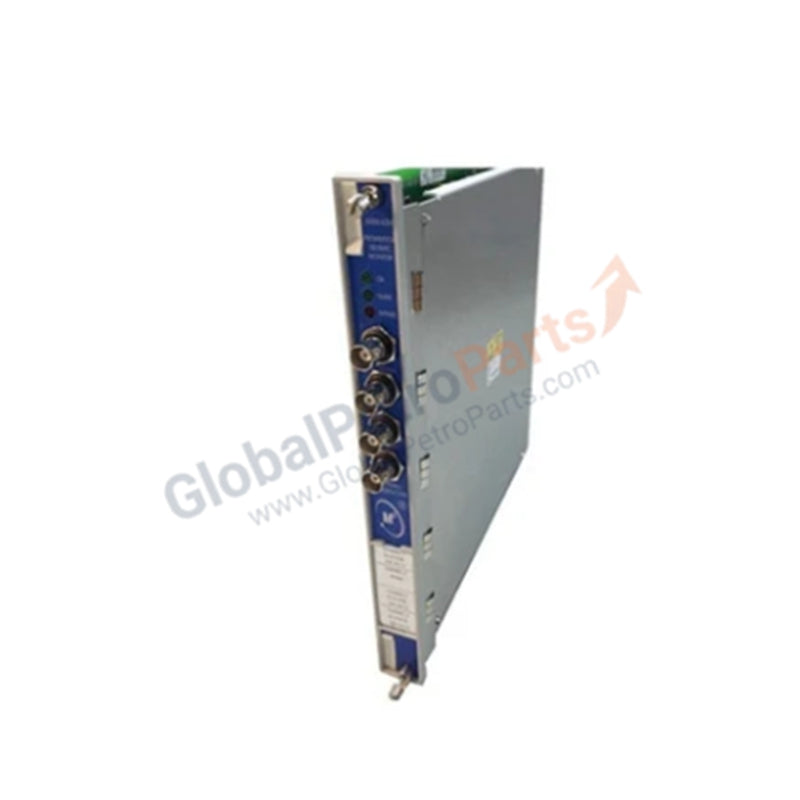

Bently Nevada 3500/40-03-01 4-Channel Proximitor Monitor

Overview

The Bently Nevada 3500/40-03-01 Proximitor Monitor provides accurate vibration and position measurements for critical rotating machinery. Engineered for integration into the 3500 Series rack, it supports real-time monitoring, advanced diagnostics, and configurable alarms to safeguard industrial equipment.

Key Features

• Four independent monitoring channels for simultaneous measurement

• Supports proximity transducers and compatible extension cables

• Outputs 4–20 mA proportional signals and buffered transducer signals

• Advanced self-check and fault detection for system reliability

• Configurable alarm thresholds to protect machinery from faults

• Designed for continuous operation in demanding industrial environments

• Simple integration into the 3500 rack system for rapid installation

Technical Specifications

• Manufacturer: Bently Nevada

• Model: 3500/40-03-01

• Module Type: Proximitor Monitor

• Channels: 4 independent monitoring channels

• Inputs: Proximity transducers, extension cables

• Outputs: 4–20 mA proportional, buffered transducer outputs

• Power Supply: Provided via 3500 rack system

• Operating Temperature: –30°C to +65°C

• Storage Temperature: –40°C to +85°C

• Dimensions: 241 mm × 24.4 mm × 99 mm

• Weight: ~0.45 kg

• Rack Space: Fits in 3500 Series rack

Applications

• Vibration monitoring of shafts and bearings

• Position tracking for rotors and turbines

• Integration into machinery protection systems in compressors, generators, and pumps

• Preventive maintenance and fault detection in high-speed rotating equipment

FAQ

Q1: How many channels does this monitor support?
A1: It supports four independent channels.

Q2: Can it be installed directly in a 3500 Series rack?
A2: Yes, it is fully compatible and integrates seamlessly.

Q3: What outputs are available for signal monitoring?
A3: It provides 4–20 mA proportional outputs and buffered transducer signals.
