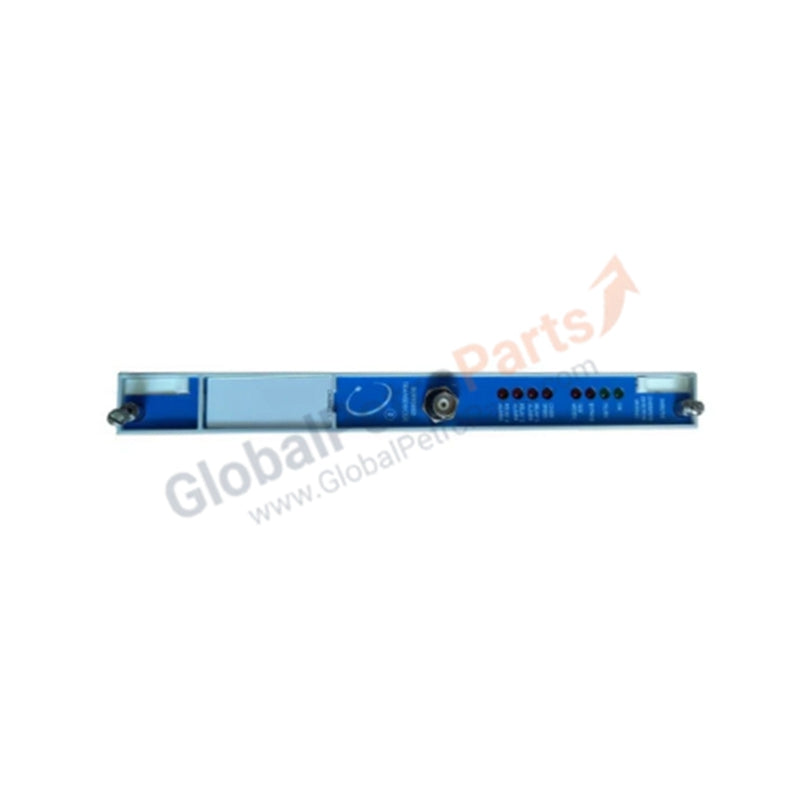

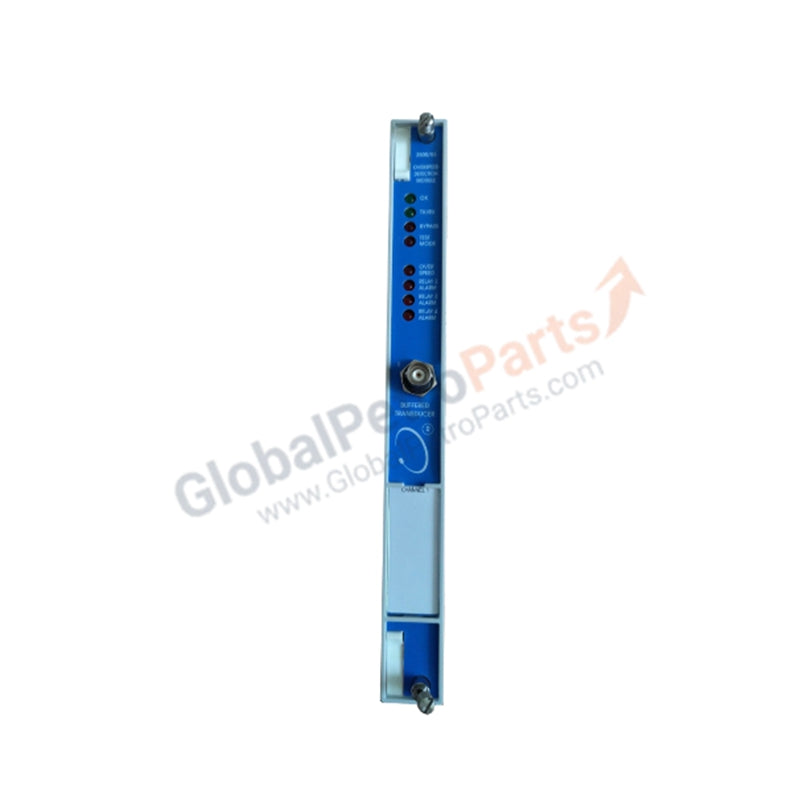

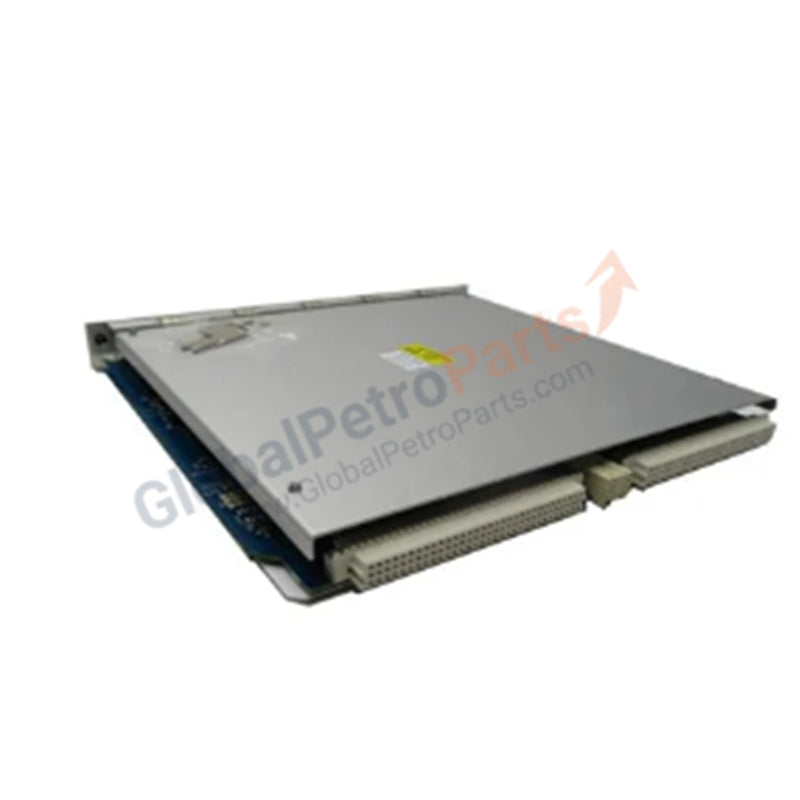

Bently Nevada 3500/77M 140734-07 Cylinder Pressure Monitor Module

Product Overview

The Bently Nevada 3500/77M 140734-07 functions as a high-performance, four-channel monitor that accepts input from pressure transducers. It specifically monitors reciprocating compressor performance by measuring cylinder pressure and calculating real-time combustion or compression metrics. This module integrates seamlessly into the 3500 Machinery Protection System, providing critical data to PLC/DCS systems to prevent catastrophic mechanical failure in industrial environments.

Part Number Breakdown: 3500/77M

Technical Specifications

We provide this module in 100% brand new, original condition with the following technical parameters:

• Manufacturer: Bently Nevada (Baker Hughes)

• Origin: USA

• Module Type: Cylinder Pressure Monitor

• Signal Input: Pressure Transducers (Reciprocating machinery)

• Communication Protocol: Internal 3500 Backplane / PLC DCS Integration

• Weight: 0.82 kg

• Dimensions: 2.5 cm x 25.5 cm x 24.5 cm

• Warranty: 1 Year

Engineering Advantages

The 3500/77M 140734-07 addresses specific challenges in reciprocating machinery monitoring:

• Peak Pressure Precision: The module captures instantaneous pressure changes during the compression cycle. This allows engineers to identify valve leaks or piston ring wear before they cause unplanned downtime.

• EMI Shielding: Bently Nevada engineers this I/O module to resist heavy electromagnetic interference commonly found in large-scale motor-driven compressor stations.

• Simplified Integration: The 140734-07 I/O module mounts in the rear of the 3500 rack, reducing front-panel wiring clutter and simplifying transducer termination.

• Rugged Durability: Designed for extreme industrial temperatures, the unit maintains signal integrity without drifting, ensuring consistent safety SIL (Safety Integrity Level) compliance.

FAQs

1. Is this 3500/77M unit brand new or refurbished?

We supply only 100% brand new, original Bently Nevada factory equipment. Each unit ships in its original Amikon protective packaging with the factory seal intact.

2. Does this module include the I/O termination?

Yes, the part number 140734-07 refers specifically to the I/O module that pairs with the 3500/77M monitor. This combination allows for direct connection to your pressure transducers.

3. How does this module communicate with my existing DCS?

The module communicates through the 3500 rack's backplane. You can access data via the 3500/92 Communication Gateway or via buffered outputs on the I/O module for local analysis tools.

4. What is the typical lead time for the 140734-07?

We currently maintain this item In Stock. We typically ship within 1-3 business days via DHL, UPS, or FedEx to ensure rapid delivery to your facility.
