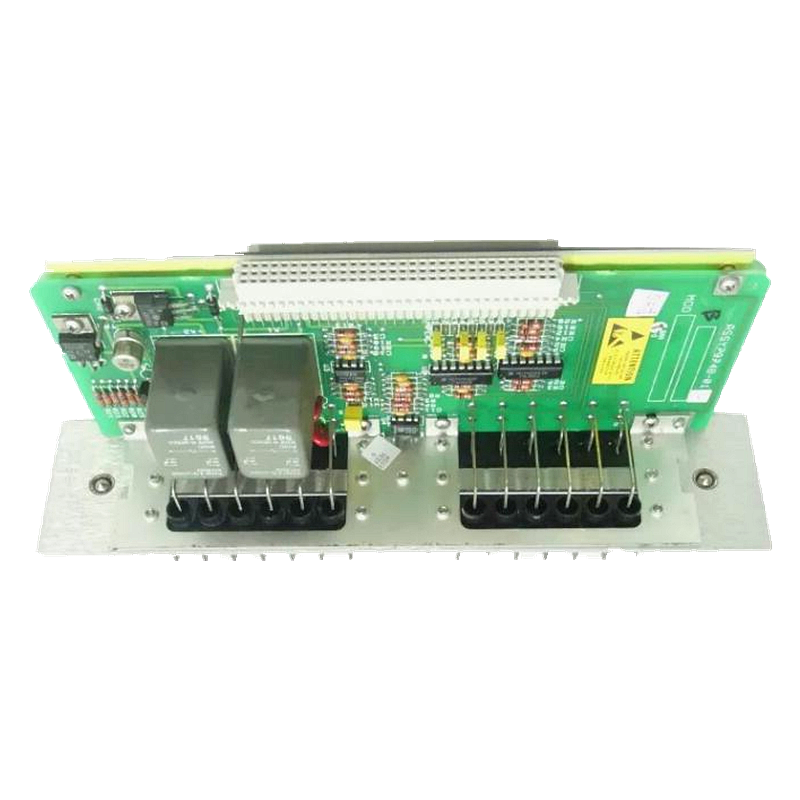

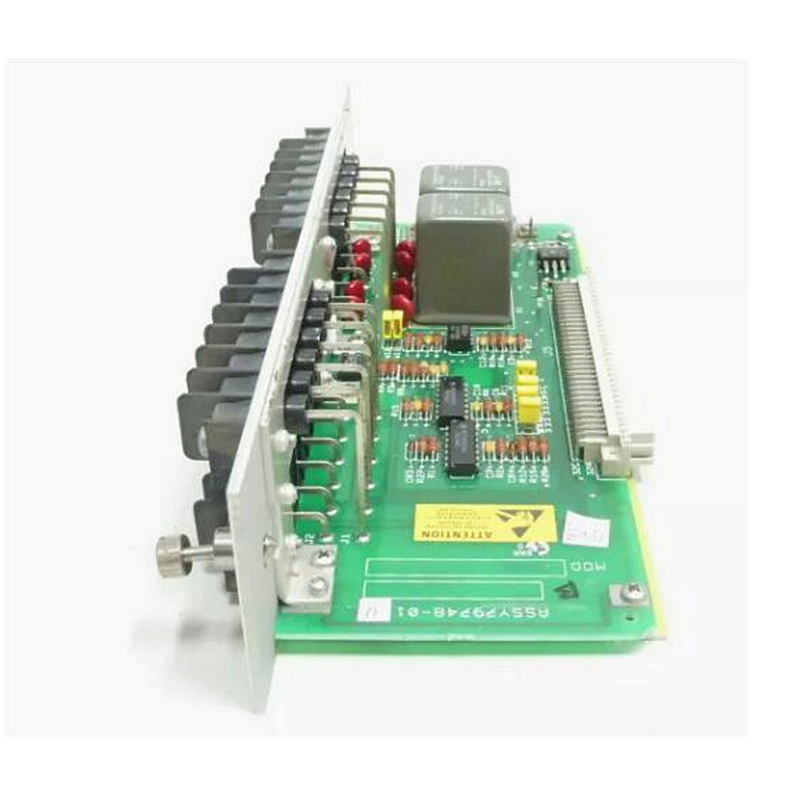

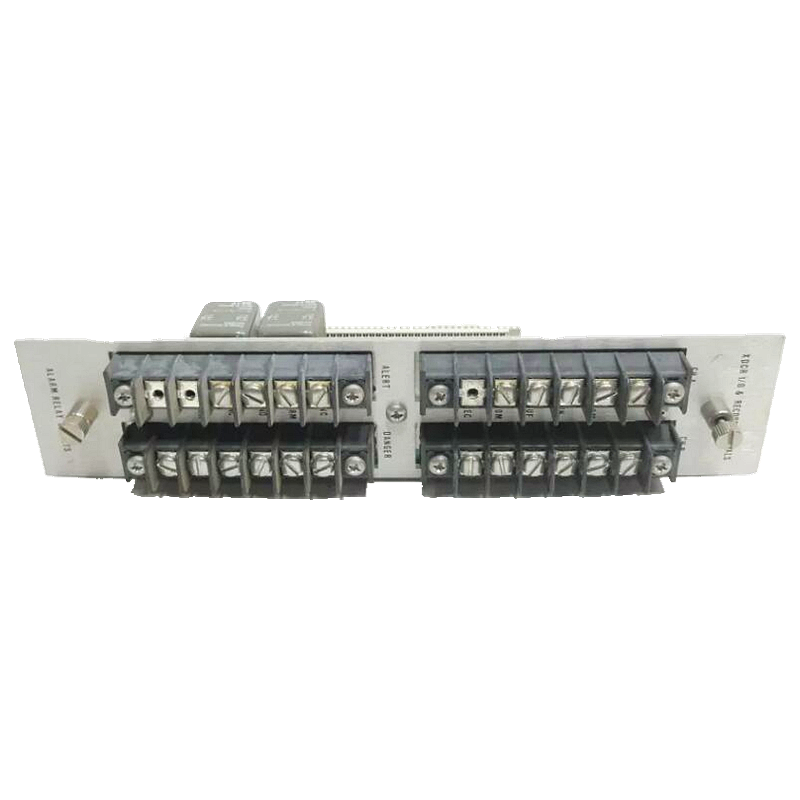

Bently Nevada 80074-01 XDCR I/O And Recod Terminal Module

Product Overview

The Bently Nevada 80074-01 is a XDCR I/O and Record Terminal Module designed for the 3500/42M Proximitor/Seismic Monitor within the Bently Nevada 3500 Series Machinery Protection System.

Key Specifications

• Manufacturer: Bently Nevada
• Product Family: 3500 Series Machinery Protection System
• Type: XDCR I/O and Record Terminal Module
• Part Number: 80074-01
• Compatibility: 3500/42M Proximitor/Seismic Monitor
• Number of Channels: Up to 4 channels
• Function: Passive connection block for transducer I/O and record terminals
• Physical Dimensions (H × W × D): 241 mm × 24.4 mm × 99.1 mm (9.50 in × 0.96 in × 3.90 in)
• Weight: 0.45 kg (0.99 lb)
• Operating Temperature: -20°C to +60°C (-4°F to +140°F)
• Mounting: 3500 rack rear slot (1 full-height rear slot)
• Power Supply: Draws power directly from the 3500 rack through the connected monitor module
• Transducer Types Supported: Proximity probes (Proximitor), seismic sensors, velocity transducers
• I/O Module Type: Non-barrier external termination

Installation Guide

1. Rack Preparation: Ensure the Bently Nevada 3500 monitoring system rack is properly installed, grounded, and powered. Verify the 3500/42M Proximitor/Seismic Monitor is installed in the front slot.
2. I/O Module Installation: Insert the 80074-01 into the corresponding rear slot directly behind the 3500/42M monitor module. The 80074-01 occupies one full-height rear slot. Ensure the module is fully seated and the retaining screws are tightened.
3. Transducer Wiring: Connect field transducer cables to the 80074-01 input terminals:
   • Proximity probe signals: Connect probe coaxial cables to the designated Proximitor input terminals.
   • Seismic/velocity sensor signals: Connect sensor signal wires to the designated seismic input terminals.
   • Ensure proper polarity and shield connections per the Bently Nevada 3500/42M installation manual.
4. Record Output Wiring: Connect external recording equipment or data acquisition systems to the record output terminals. Ensure recording devices present appropriate input impedance to avoid signal loading.
5. Shield Grounding: Ground transducer cable shields at the 80074-01 terminal block per the system grounding plan. Typically, shields are grounded at the monitoring system end only to prevent ground loops.
6. Transducer Jumper Configuration: Verify the transducer jumper settings on the I/O module match the transducer type being used (Proximitor vs. seismic). Refer to Section 4.1 of the 3500/42M Operation and Maintenance Manual for jumper setting procedures.
7. Configuration Verification: Use the 3500 Rack Configuration Software to verify the 3500/42M monitor recognizes the 80074-01 I/O module and all channels are configured correctly.
8. Signal Verification: After power-up, verify signal presence at each channel by measuring the DC bias voltage at the monitor's buffered transducer output connectors. Stable readings indicate proper transducer and I/O module operation.

FAQ

Q: What is the difference between 80074-01 and 80074-02?
A: The 80074-01 and 80074-02 are variants of the XDCR I/O and Record Terminal Module. The suffix difference may indicate barrier vs. non-barrier configuration, approval option, or minor revision. For exact differences, consult the Bently Nevada 3500/42M ordering information or contact technical support.

Q: Is the 80074-01 compatible with monitors other than the 3500/42M?
A: The 80074-01 is specifically designed for the 3500/42M Proximitor/Seismic Monitor. For other 3500 monitor modules (e.g., 3500/40M, 3500/45), use the I/O modules specified in those monitor's datasheets.

Q: Does the 80074-01 require external power?
A: No. The 80074-01 is a passive connection block that draws power directly from the 3500 rack backplane through the connected 3500/42M monitor module. No separate power wiring is required.

Q: Can I use the 80074-01 with the 3300 monitoring system?
A: No. The 80074-01 is designed for the 3500 series monitoring system only. For 3300 systems, use the appropriate 3300-series I/O terminal boards.

Q: What is the maximum number of transducers per 80074-01?
A: The 80074-01 supports up to 4 transducer channels, matching the 4-channel capacity of the 3500/42M monitor module.

Q: What cable type should I use for transducer connections?
A: Use shielded coaxial cables for proximity probe connections and shielded twisted-pair cables for seismic/velocity sensor connections. Follow the Bently Nevada 3500/42M installation manual for specific cable recommendations and grounding requirements.

Selection Tips

• Verify your monitor module is the 3500/42M Proximitor/Seismic Monitor before ordering the 80074-01. This I/O module is specifically designed for that monitor.
• Confirm your transducer types (proximity probes, seismic sensors, or velocity transducers) are compatible with the 3500/42M monitor configuration.
• Ensure adequate rear slot space is available in your 3500 chassis. The 80074-01 occupies one full-height rear slot.
• When replacing a failed I/O module, match the exact part number (80074-01) to ensure identical terminal layout and electrical characteristics.
• For hazardous area applications, verify whether a barrier I/O module is required instead of the standard 80074-01. The 3500/42M supports internal barrier I/O modules for Class I, Division 1 installations.
• Consider ordering spare I/O modules to minimize downtime during maintenance.
• Document all transducer wiring assignments during installation to simplify future troubleshooting and module replacement.
