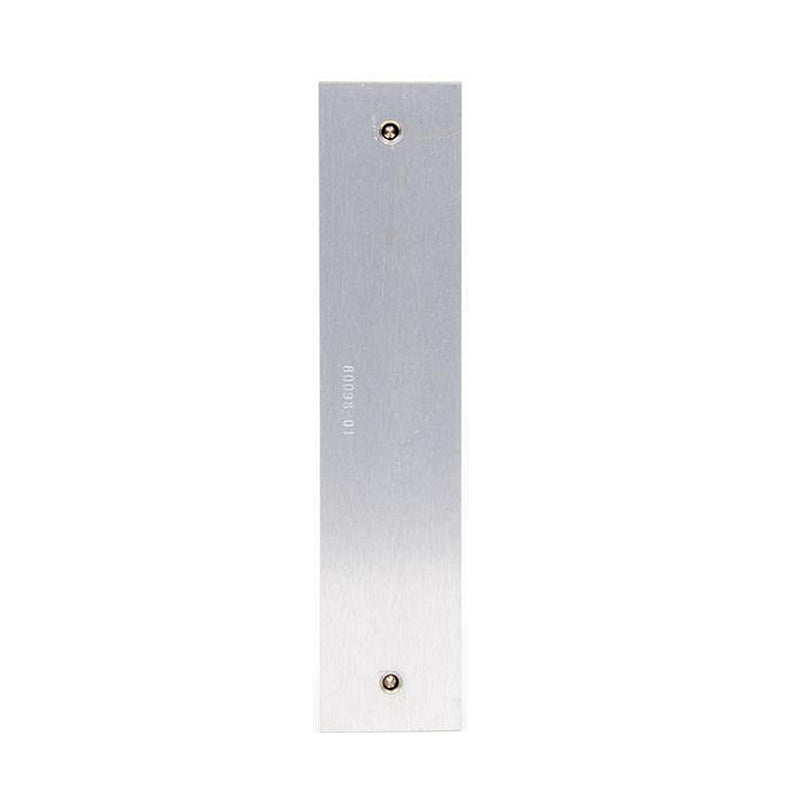

Bently Nevada 80098-01 Monitor Module - 3300 Series

Product Summary

The Bently Nevada 80098-01 is a 3300 Series Monitor Module engineered for continuous machinery protection. Operating within the modular 3300 Series architecture, this module processes inputs from industrial transducers to perform direct machinery safety monitoring, executing hardwired alarm and shutdown trip logic in compliance with API 670 machinery protection standards.

Core Specifications

• Model Number: 80098-01
• Product Type: 3300 Series Monitor Module
• Internal Coating: Conformal coated circuit board assembly
• System Compatibility: Bently Nevada 3300 Series Monitoring System Chassis
• Input Compatibility: Compatible with 3300 and 3300 XL Proximity Transducer Systems or seismic sensors
• Output Interfaces: Front-panel buffered transducer outputs and discrete Alert/Danger relay driving capabilities
• Agency Approval Option: 01 (Multiple Hazardous Area Approvals including ATEX, IECEx, and CSA certifications)

Functional Features

• Environmental Protection: Factory-applied conformal coating isolates electronic components from moisture, conductive particulate dust, and corrosive industrial atmospheres
• Machinery Protection Logic: Processes high-frequency dynamic signals to implement instantaneous trip logic, preventing catastrophic failures in rotating machinery
• Signal Diagnostics: Integrated front-panel coaxial connectors provide unisolated raw signals for external diagnostics and dynamic troubleshooting instrumentation
• Modular Architecture: Hot-swappable installation design into any standard monitor slot of a 3300 rack assembly

Installation & Environmental Limits

• Operating Temperature: -10°C to +60°C (+14°F to +140°F)
• Storage Temperature Range: -40°C to +85°C (-40°F to +185°F)
• Mounting Configuration: Installs into a single dedicated rack slot, securing via dual front-panel captive screws
• Field Wiring Termination: Connects to field wiring via the corresponding 3300 backplane I/O module termination block
