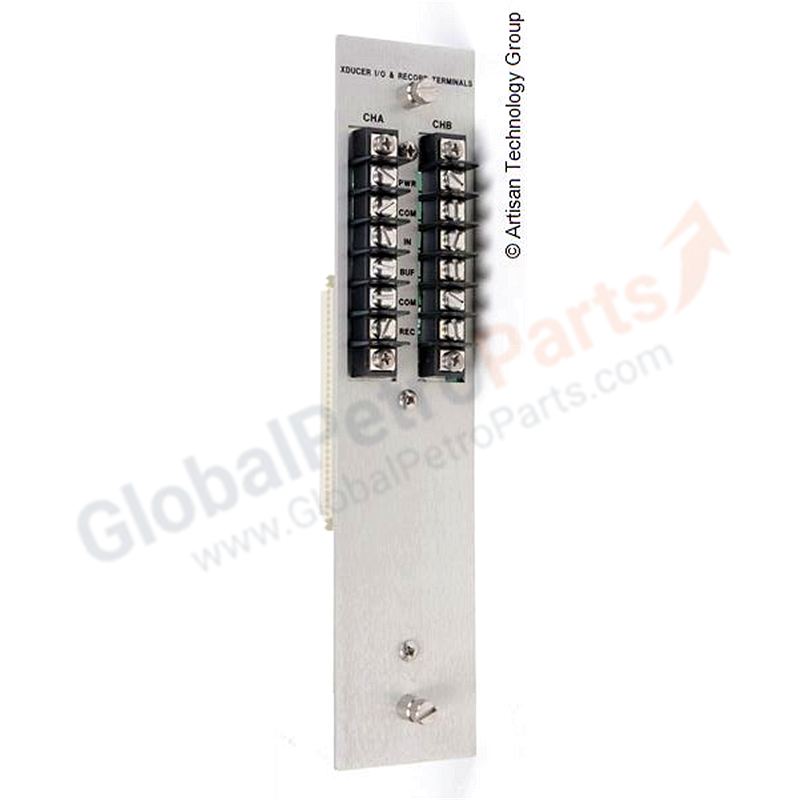

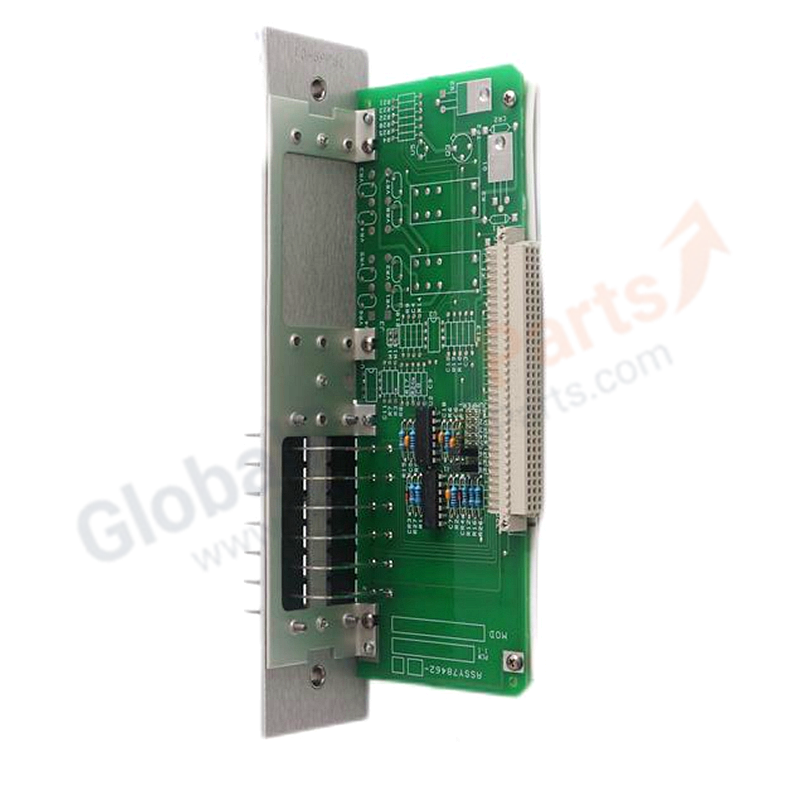

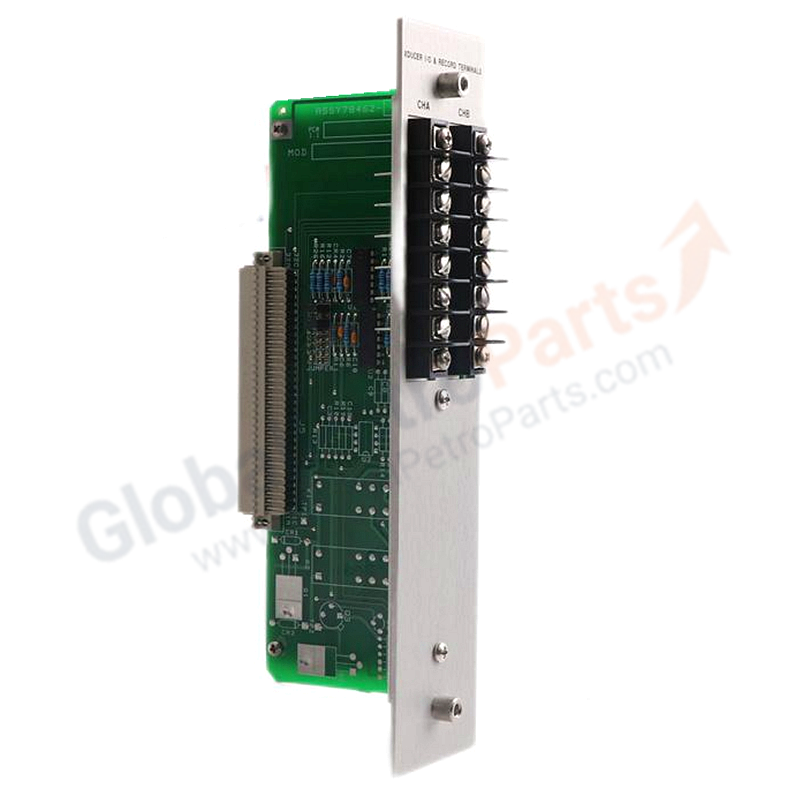

Bently Nevada 81544-01 I/O Module Signal & Record Terminal

Product Overview

The Bently Nevada 81544-01 is an I/O Module / Terminal Board designed for the 3300 Series and 3500 Series machinery protection systems. This module serves as the physical interface for transducer I/O and record terminals, providing secure electrical connections between field sensors and the monitoring system. The 81544-01 is specifically associated with Dual Differential Expansion Monitor functions and Keyphasor I/O applications, supporting 2 channels of signal input and output.

Key Specifications

• Manufacturer: Bently Nevada (Baker Hughes)
• Product Family: 3300 Series
• Type: I/O Module / Terminal Board / Xducer I/O & Record Terminals
• Part Number: 81544-01
• Function: Transducer I/O and Record Terminals
• Channels: 2 channels
• Associated Monitors: 3300/25 (Dual Accelerometer), 3300/45 (Dual Differential Expansion), 3300/48 (Dual Thrust), 3300/20 (Dual Thrust)
• Frequency Range: 0 to 20 kHz
• Max Input Voltage: 250 V AC/DC
• Max Input Current: 10 A
• Termination Temperature Range: -55°C to +125°C (-67°F to +257°F)
• Dimensions: 23 × 6 × 11 cm (packaging)
• Weight: 0.26 kg (0.8 kg per some sources)
• Origin: United States
• HS Code: 85389091

Features & Benefits

• Dual Channel Design: Supports 2 channels of transducer I/O, enabling differential expansion or dual thrust monitoring from a single terminal board.
• High Voltage Input Capability: Accepts up to 250 V AC/DC input voltage, providing robust protection against transient overvoltages.
• Wide Temperature Range: Operates from -55°C to +125°C, suitable for extreme industrial environments.
• Multi-Monitor Compatibility: Compatible with multiple 3300 series monitor modules including 3300/25, 3300/45, 3300/48, and 3300/20.
• Secure Terminal Connections: Provides robust screw terminal connections for field wiring, ensuring reliable long-term signal integrity.
• Signal Recording Outputs: Dedicated record terminals enable connection to external data acquisition or recording equipment.

Typical Applications

• Differential expansion monitoring on steam turbines
• Dual thrust position measurement
• Keyphasor signal I/O for phase reference
• Dual accelerometer signal termination
• External recording equipment interface
• Signal conditioning and distribution

Installation Guide

1. System Verification: Confirm your monitoring system uses one of the compatible monitor modules: 3300/25, 3300/45, 3300/48, or 3300/20.
2. Mounting: Install the 81544-01 terminal board in the designated location within the 3300/3500 rack or external enclosure. Secure with appropriate hardware.
3. Transducer Wiring: Connect field transducer cables to the input terminals. Follow the wiring diagram in the official Bently Nevada installation manual for proper polarity and shield connections.
4. Record Output Wiring: Connect recording equipment to the dedicated record output terminals. Ensure recording devices present appropriate input impedance to avoid signal loading.
5. Shield Grounding: Ground cable shields at the terminal board per the system grounding plan. Typically, shields are grounded at the monitoring system end only.
6. CE Installation: For CE-compliant installations, use the specified interconnect cables (0.963 mm² / 18 AWG or 0.382 mm² / 22 AWG shielded twisted pair) as referenced in the Bently Nevada CE installation documentation.
7. Verification: After wiring, verify signal continuity and measure input signals at the monitor module to confirm proper transducer operation.

FAQ

Q: What is the difference between 81544-01 and 81544-02?
A: The 81544-01 and 81544-02 are variants of the same Xducer I/O terminal board. The suffix difference may indicate connector type, approval option, or minor configuration variation.

Q: What monitor modules is the 81544-01 compatible with?
A: The 81544-01 is compatible with 3300/25 (Dual Accelerometer), 3300/45 (Dual Differential Expansion), 3300/48 (Dual Thrust), and 3300/20 (Dual Thrust) monitor modules.

Q: Can I use the 81544-01 with the 3500 system?
A: The 81544-01 is primarily designed for the 3300 series. For 3500 systems, Bently Nevada offers updated I/O modules with improved connectivity. Verify compatibility with your specific 3500 rack configuration before installation.

Q: What wire gauge should I use for connections?
A: For CE-compliant installations, Bently Nevada specifies 0.963 mm² (18 AWG) or 0.382 mm² (22 AWG) shielded twisted-pair cables. For non-CE installations, follow local electrical codes and the Bently Nevada installation manual.

Selection Tips

• Verify your monitor module model number (3300/25, 3300/45, 3300/48, or 3300/20) before ordering the 81544-01 to ensure compatibility.
• When replacing a failed terminal board, match the exact part number (81544-01) to ensure identical terminal layout and electrical characteristics.
• For new installations, consider the 3500 series with modern I/O modules for improved diagnostics and Ethernet connectivity.
• Ensure adequate cable gland or conduit entry provisions in your enclosure for the number of transducer cables.
• Document all terminal assignments during installation to simplify future maintenance and troubleshooting.
