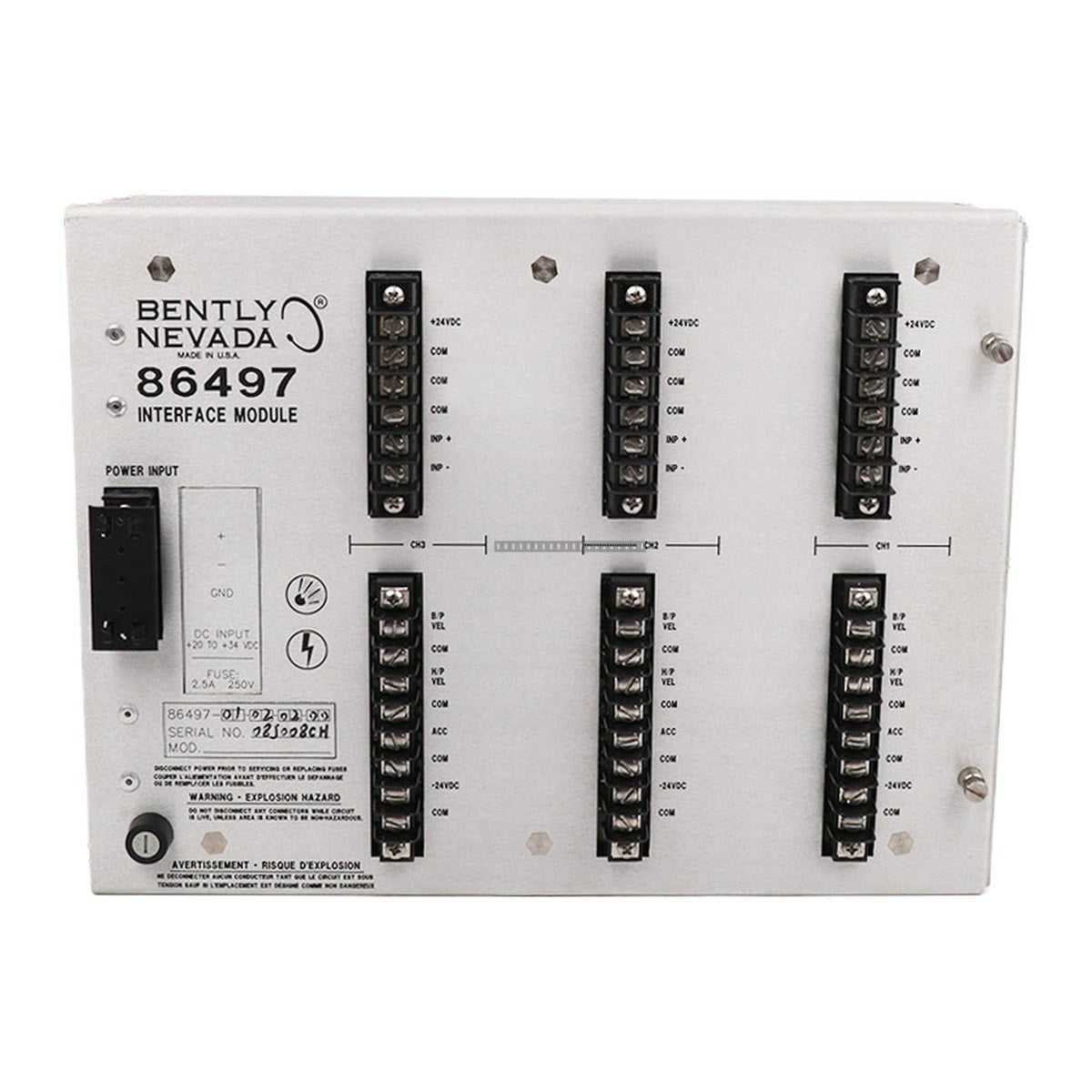

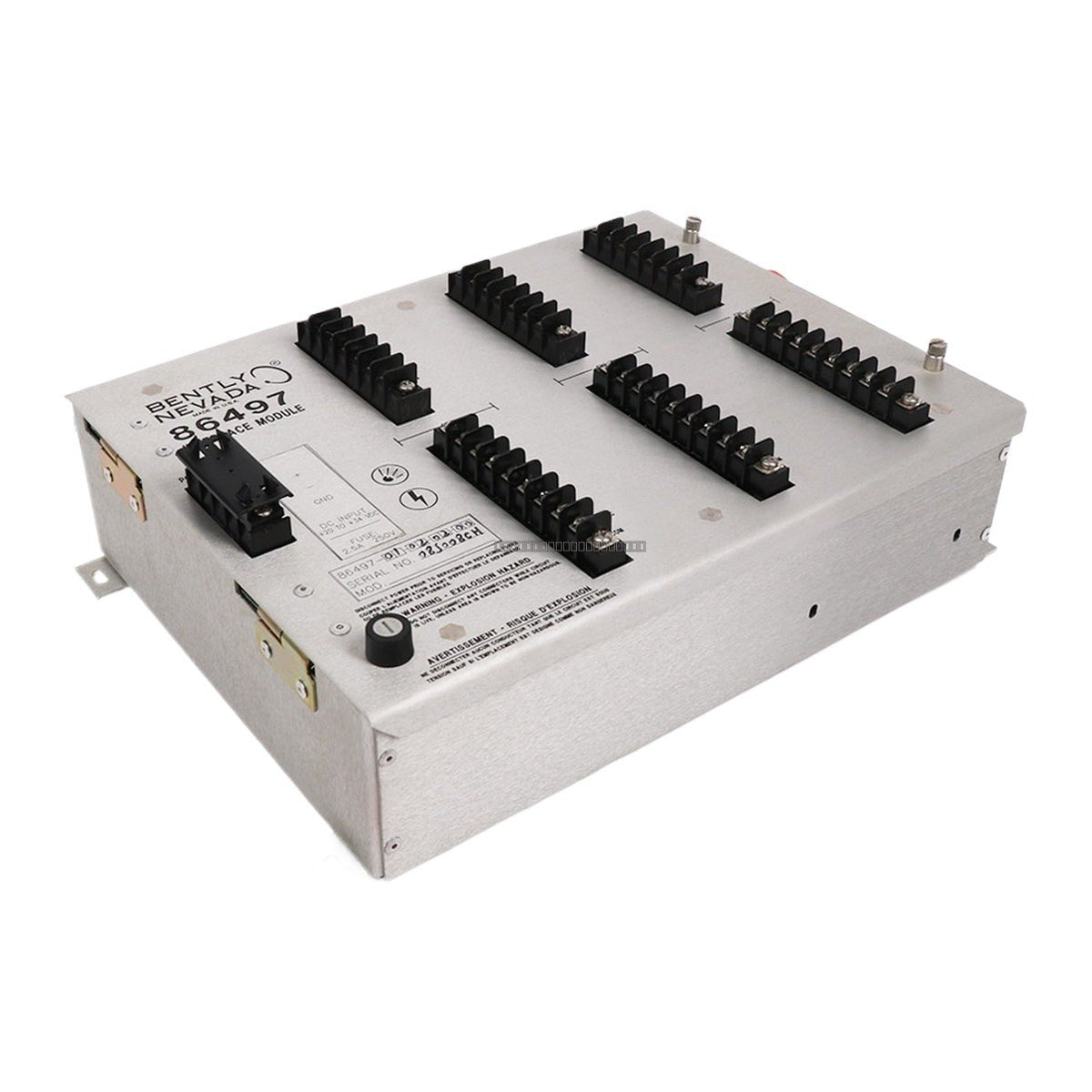

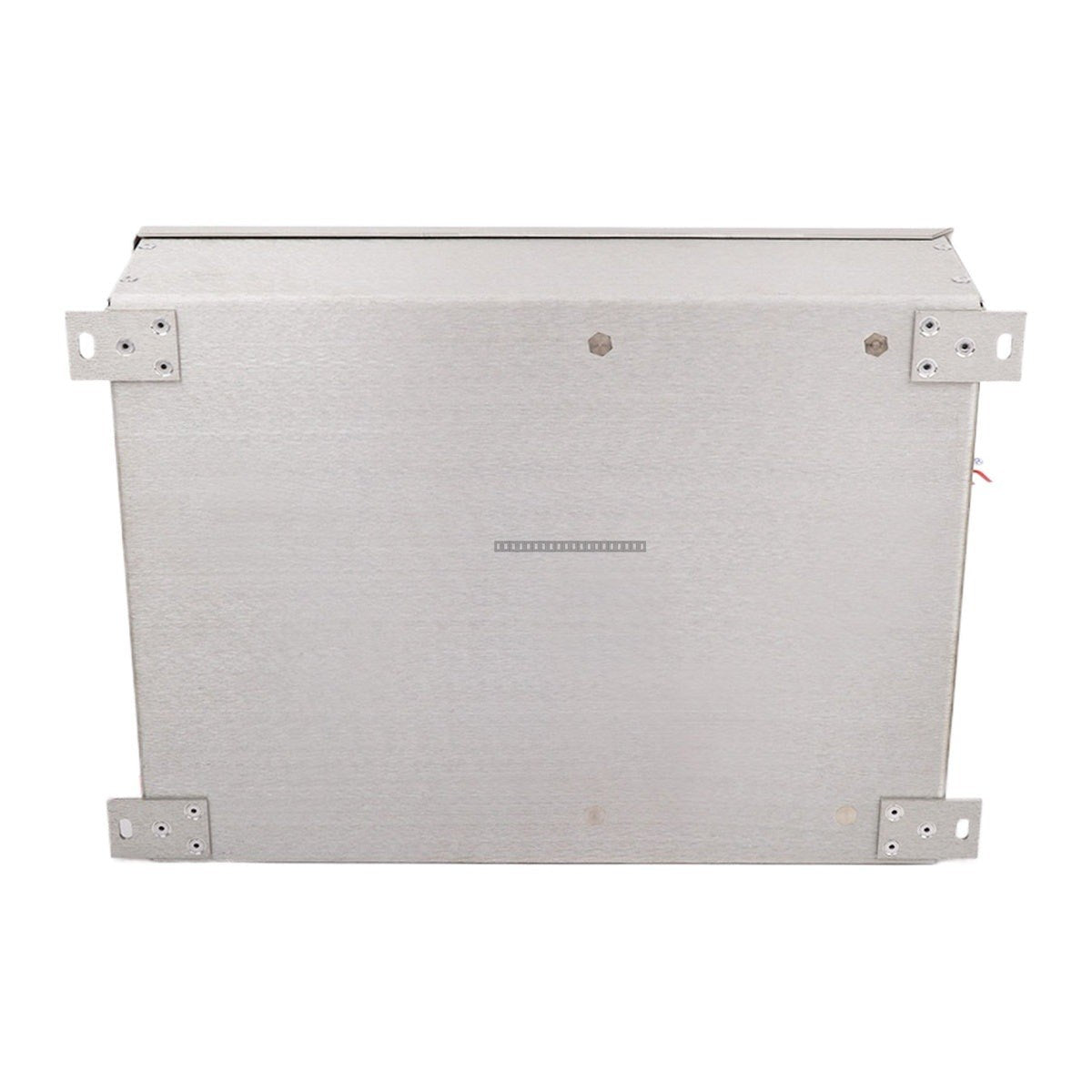

Bently Nevada 86497-01-02-02-00 Interface Module

Description

The Bently Nevada 86497-01-02-02-00 is an interface module designed for industrial monitoring and control systems. This module facilitates reliable signal processing and interconnection within the Bently Nevada architecture, ensuring robust performance in demanding environments.

Features

• Input voltage range: 20-34 VDC
• Integrated 2.5 Amp @ 250 V fuse for circuit protection
• Configured with 6 groups of 8 points for high-density signal management
• Designed for high reliability in harsh industrial conditions

Technical Specifications

Installation Guidelines

• Ensure the system power is completely disconnected before installing or removing the module to prevent electrical damage.
• Mount the module in a clean, dry, and vibration-controlled environment, adhering to standard industrial rack or panel mounting practices.
• Verify that all wiring connections are secure and that the input voltage is within the specified 20-34 VDC range.
• Maintain proper clearance around the module to allow for adequate airflow and heat dissipation.
• Use shielded cabling for signal lines to minimize electromagnetic interference (EMI) in high-noise industrial environments.

FAQ

What is the primary function of the 86497-01-02-02-00?

This unit serves as an interface module, providing signal distribution and protection for monitoring systems, featuring 6 groups of 8 points for organized connectivity.

What are the power requirements for this module?

The module operates on a DC input voltage range of 20-34 VDC and includes an integrated 2.5 Amp fuse rated for 250 V.

Is this module suitable for extreme temperatures?

Yes, the module is rated for operation in temperatures ranging from -40 degC to +70 degC, making it suitable for a wide variety of industrial field applications.
