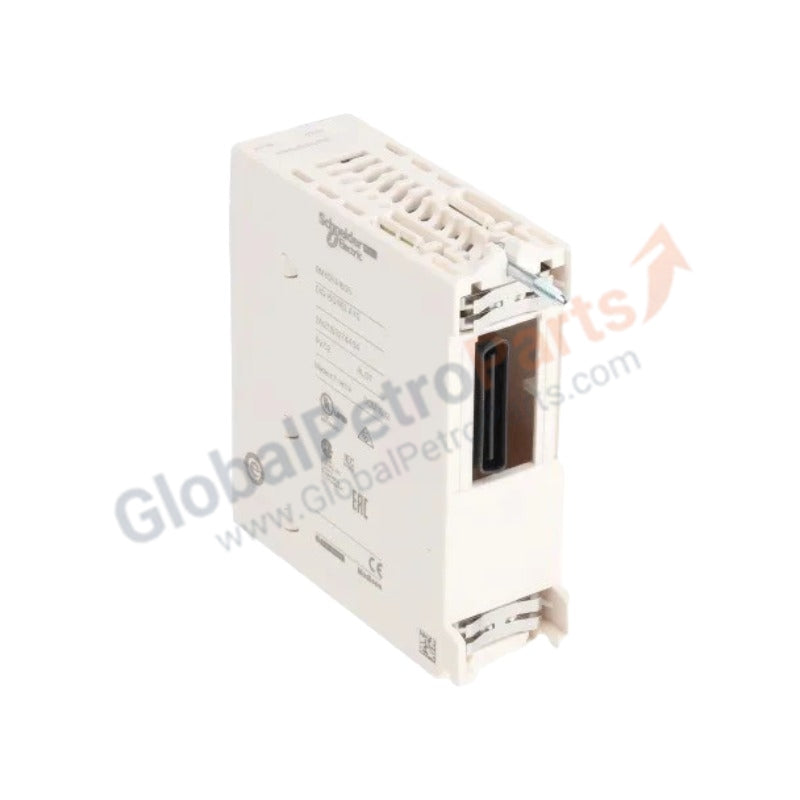

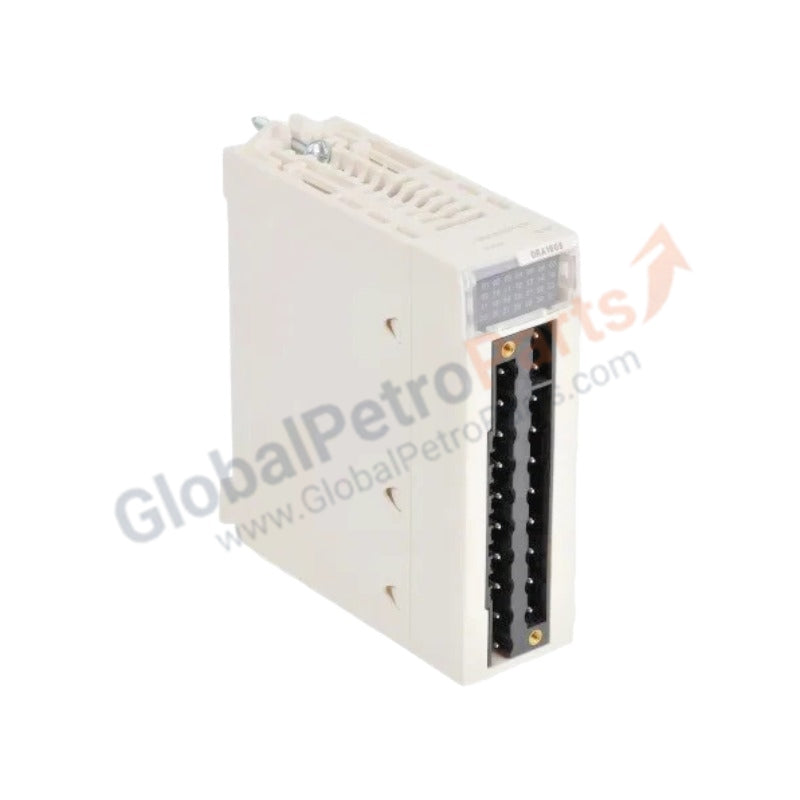

BMXDRA1605 Schneider Modicon Quantum X80 Discrete Output Module

Product Overview

The BMXDRA1605 acts as a high-density relay output interface for the Schneider Electric Modicon X80 platform. This module provides 16 independent Normally Open (NO) relay channels, allowing the PLC to control a diverse range of field devices across varying voltage levels, from 24V DC to 240V AC. It integrates seamlessly into M340 and M580 architectures, offering a robust mechanical switching solution for applications requiring galvanic isolation between the controller and the load. We supply this module as 100% Brand New and Original to ensure maximum electrical life and system uptime.

Technical Specifications

Engineering Advantages

• Universal Voltage Versatility: The relay architecture allows the BMXDRA1605 to switch both AC and DC loads on the same module. This eliminates the need for separate digital output modules for different power requirements, significantly reducing cabinet hardware costs.

• Superior Isolation: The module provides a 2000V AC dielectric strength between the internal logic and the output circuits. This physical separation prevents field-side electrical surges from damaging the expensive PLC processor or backplane.

• Advanced Diagnostics: A comprehensive LED array provides real-time status updates. A green RUN LED indicates module health, while individual green LEDs per channel show output status. Red ERR and I/O LEDs instantly signal internal faults or configuration mismatches.

• Environmental Resilience: Engineered for harsh industrial zones, the module withstands 30 gn shock and 3 gn vibration. The TC protective treatment allows the module to operate reliably in humid environments (up to 95% RH) without performance degradation.

FAQs

• Does the BMXDRA1605 include internal fuse protection? No. To protect the relay contacts from short circuits or overloads, you must install one fast-blow fuse per channel or group of channels as part of your external wiring.

• Can I use this module for high-frequency switching? Relay modules have mechanical limitations. For high-speed switching applications, consider a solid-state transistor output module. The BMXDRA1605 is best suited for standard interposing relay or actuator control.

• What external protection do I need for inductive loads? For DC loads, install a discharge diode across each output. For AC loads, utilize an RC circuit or a ZNO surge limiter to prevent contact arcing and extend the electrical durability of the relay.

• What is the maximum operating altitude for this module? The module operates at full specification up to 2000 meters. For installations between 2000 and 5000 meters, apply the appropriate derating factors as specified by Schneider Electric documentation.
