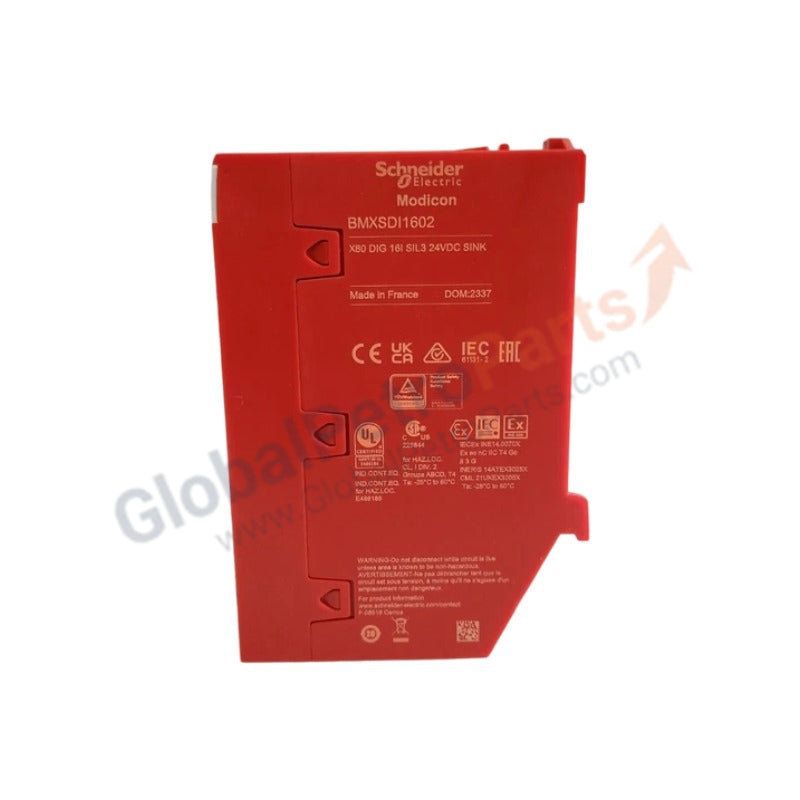

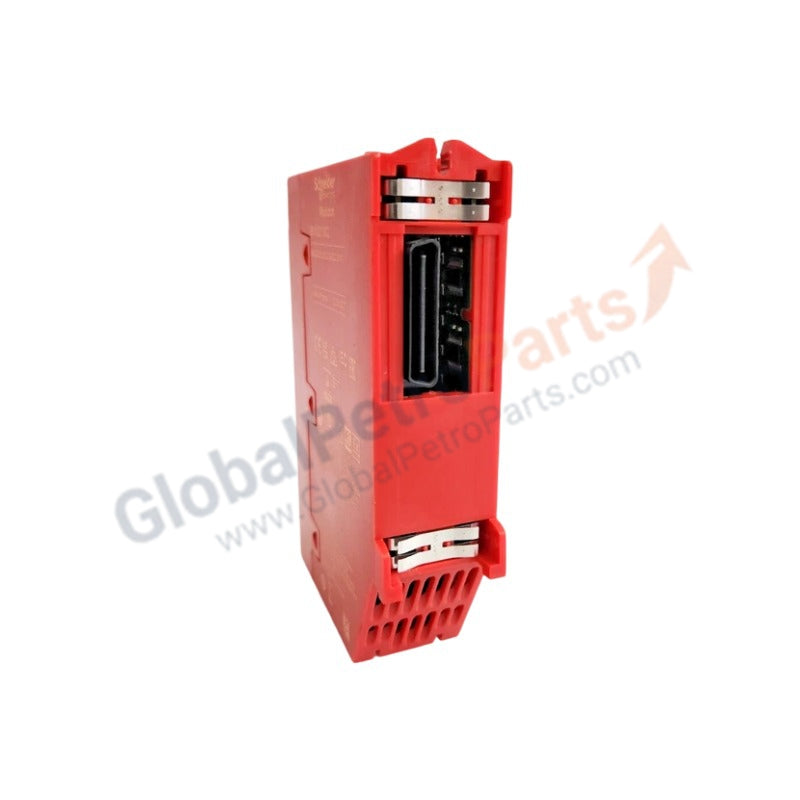

BMXSDI1602 Schneider Modicon Quantum X80 Safety Discrete Input Module

Product Overview

The Schneider Electric BMXSDI1602 functions as a high-integrity safety discrete input module for the Modicon X80 and M580 automation platforms. It provides 16 digital input channels operating at 24V DC with positive logic (sink). Designed specifically for functional safety architectures, this module ensures high-reliability monitoring of emergency stops, light curtains, and safety interlocks. Featuring standard conformal coating, it offers superior protection against chemical and environmental contaminants. We supply this unit as 100% Brand New and original factory sealed.

Technical Specifications

The BMXSDI1602 integrates robust electrical characteristics to maintain signal accuracy in critical safety loops.

Engineering Advantages

• Advanced Environmental Hardening: The module includes a factory-applied conformal coating. This treatment solves the problem of premature hardware failure in corrosive environments, meeting Gas Resistant Class 3C4 and Salt Resistant Level 2 standards. It effectively resists mold growth, fungal spores, and fine dust penetration.

• Intelligent Sensor Diagnostics: Integrated voltage detection thresholds provide immediate feedback on field wiring health. The module identifies a sensor fault if voltage drops below 14V DC and confirms a healthy state only when the signal exceeds 18V DC.

• Redundant Safety Logic: This module supports the paralleling of inputs, allowing engineers to design redundant safety circuits that meet strict SIL (Safety Integrity Level) requirements without complex external wiring.

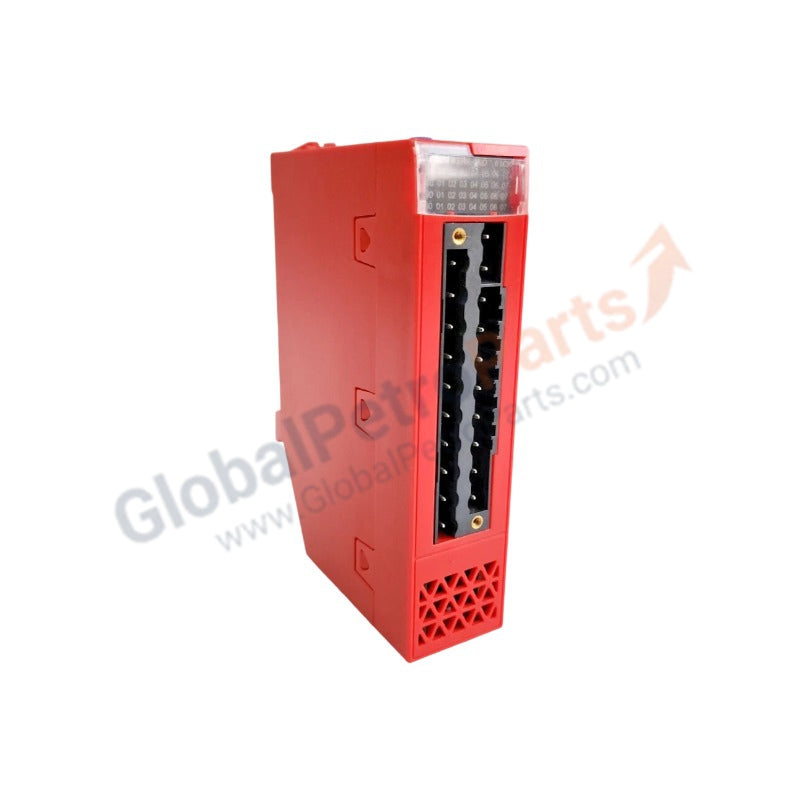

• Simplified Troubleshooting: A dedicated LED per channel provides instant diagnostic feedback. The red "ERR" and "I/O" LEDs pinpoint internal module faults or field-side wiring discrepancies, significantly reducing mean time to repair (MTTR).

• Extended Service Life: With an MTBF of over 275,000 hours and reverse polarity protection, the BMXSDI1602 withstands the electrical stresses of heavy industrial use.

FAQs

• Q: Can I use the BMXSDI1602 with 2-wire and 3-wire proximity sensors?

• A: Yes. The module maintains full compatibility with proximity sensors conforming to IEC 60947-5-2. It guarantees an "ON" state (State 1) when current exceeds 2 mA and an "OFF" state (State 0) when current remains below 1.5 mA.

• Q: How does the module behave at high altitudes?

• A: The module operates at full capacity up to 2000m. For deployments between 2000m and 5000m, you must apply a derating factor to account for reduced air density and heat dissipation efficiency.

• Q: Does the 16-channel input require an external fuse?

• A: The module includes reverse polarity protection. However, we recommend using a 0.5A fast-blow external fuse for overload protection to safeguard the internal circuitry against major field-side electrical surges.

• Q: Is this module compatible with standard M340 racks?

• A: While it physically fits X80 racks, the BMXSDI1602 is primarily designed for the M580 Safety PLC system. Always verify that your processor and backplane firmware support safety-certified I/O modules before installation.
