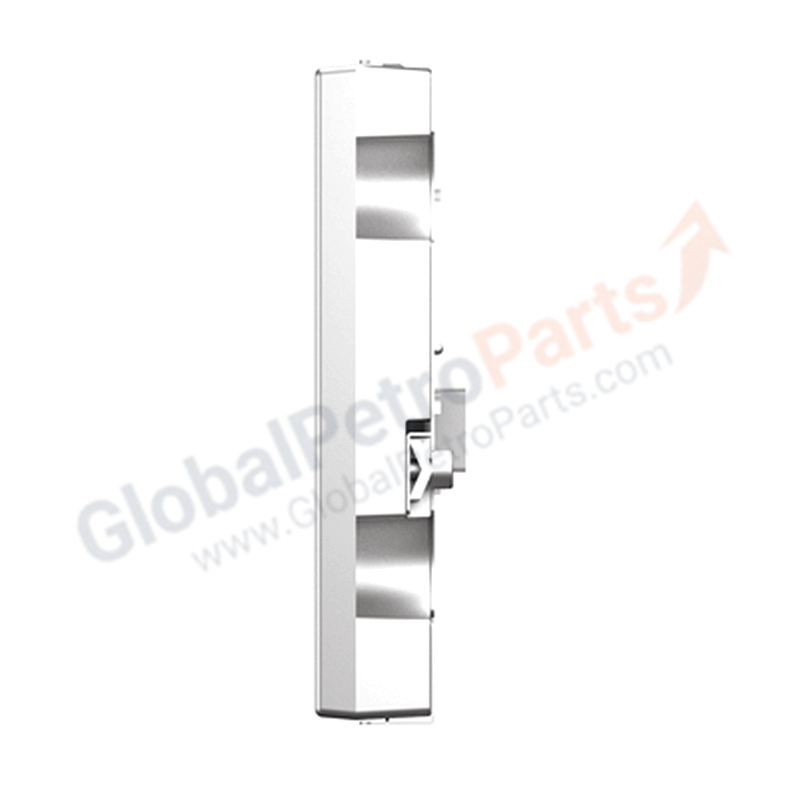

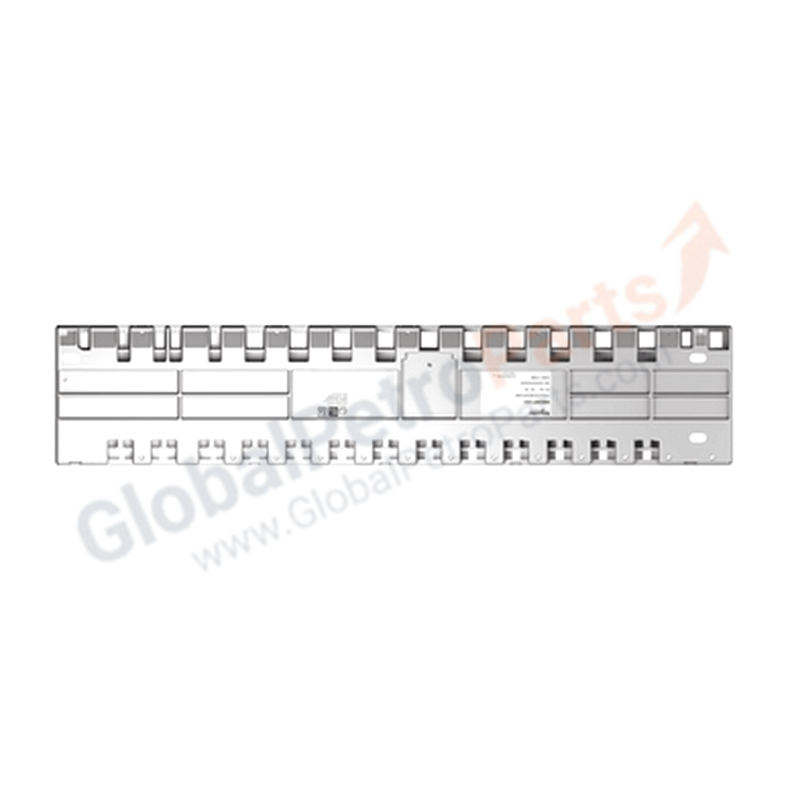

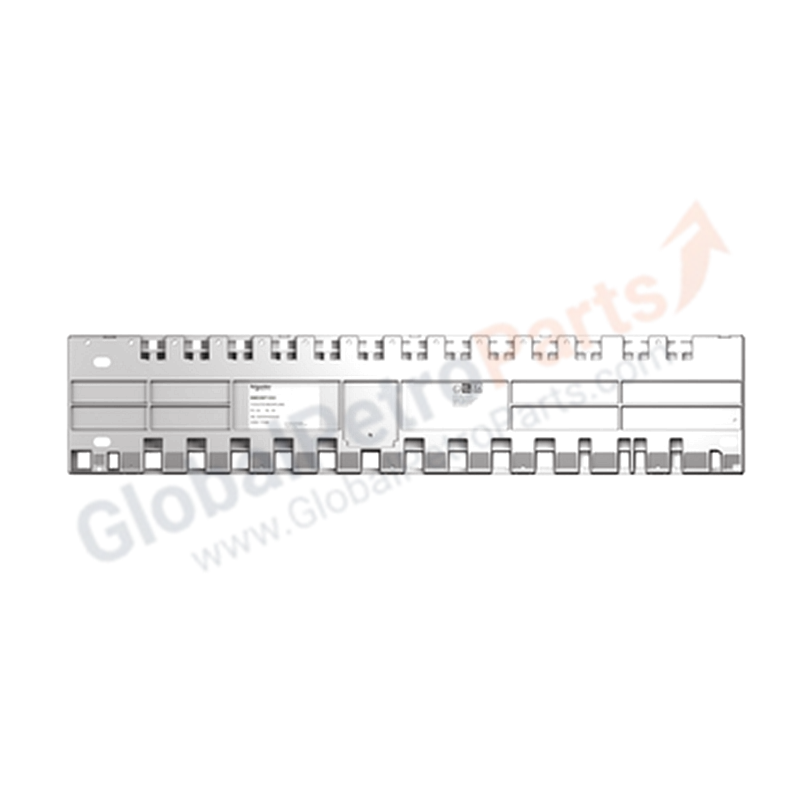

Schneider Electric BMEXBP1002 Modicon M580 10-Slot Dual Power Supply Ethernet + X-bus Backplane — Redundant PS, 8 Ethernet + 2 X-bus Slots

The BMEXBP1002 (note: correct spelling is BMEXBP1002, not BMXXBP1002) is a 10-slot dual power supply Ethernet + X-bus backplane for Schneider Electric's Modicon M580 automation platform. It features 2 dedicated redundant power supply slots (CPS1/CPS2) and 10 module slots (8 with dual Ethernet + X-bus connectivity, 2 with X-bus only), enabling high-availability architectures with redundant power and integrated Ethernet switching for distributed I/O and peer-to-peer communication.

Key Specifications

• Manufacturer: Schneider Electric
• Series: Modicon M580 / Modicon X80
• Type: Dual Power Supply Ethernet + X-bus Backplane
• Number of Slots: 10 total (8 Ethernet + X-bus + 2 X-bus only)
• Power Supply Slots: 2 dedicated slots (CPS1 and CPS2) for BMXCPS4002● redundant power supply only
• Module Slots:
  • 8 slots with dual Ethernet + X-bus connectors for mixed modules (processors, I/O, communication, application-specific)
  • 2 slots with X-bus only connectors for X-bus modules
• Power Consumption: 3.9 W (251 mW at 3.3 VDC + 3.9 W at 24 VDC)
• Current Consumption: 76 mA at 3.3 VDC; 162 mA at 24 VDC
• MTBF Reliability: 1,700,000 hours (1,184,170 hours per some sources)
• Expansion Connector: 1 × XBE connector for X-bus backplane expansion (multirack configuration)
• Mounting Options:
  • 35 mm symmetrical DIN rail (by clips)
  • Panel mount (4 screws, diameter 4.32–6.35 mm / 0.17–0.25 in)
  • Mounting plate (4 × M6 screws)
• Dimensions: 22.40 × 6.22 × 2.72 in (569 × 158 × 69 mm) package; backplane dimensions per standard X80 format
• Weight: 1.37 kg (3.02 lb)
• Package Weight: 1.355 kg (2.99 lb)
• IP Rating: IP20
• Operating Temperature: 0°C to +60°C (32°F to 140°F)
• Relative Humidity: 5–95% without condensation
• Protective Treatment: TC (Technical Coating)
• Directives: 2014/35/EU (Low Voltage), 2014/30/EU (EMC)
• Product Compatibility: BMEP58/BMEH58 processors, BMXCPS4002 power supply, I/O modules, specific application modules
• Redundancy Support: Yes — dual redundant power supplies (BMXCPS4002●) and redundant processors (BMEH58●●40)
• Shielding Connection: 2 attachment points for mounting the shielding connection bar (BMXXSP●●●)
• Grounding Screw: Integrated
• RoHS Status: Compliant since 1623 (week 23, 2016)
• REACh Status: Reference containing SVHC above threshold — consult CaP for details
• Green Premium: Yes (Mercury Free)
• Warranty: 18 months
• Status: Active / In production

Architecture & Functionality

• Dual Bus Backplane: Integrates both Ethernet and X-bus on the same backplane, eliminating separate communication modules for Ethernet connectivity
• Embedded Ethernet Switch: The Ethernet backplane includes an embedded switch connected to multiple slots, enabling direct Ethernet communication for M580 CPUs and Ethernet-capable I/O modules
• Redundant Power Supply Support: Two dedicated CPS slots accept BMXCPS4002● redundant power supplies for N+1 power redundancy
• High-Availability Architectures: Supports Hot Standby redundant processors (BMEH58●●40) with 1 Gbps fiber optic or copper link
• Expansion Capability: XBE connector allows connection of BMXXBE1000 backplane expander for multirack systems (up to 7 expansion racks, 30m total distance)
• Shielding Connection Kit: Compatible with BMXXSP●●● 90° cable shielding connection kits for EMC compliance
• Slot Flexibility: 8 dual-bus slots support any Ethernet + X-bus module; 2 X-bus-only slots support standard X80 modules without Ethernet

Related Backplane Models

• BMEXBP0400: 4-slot standard Ethernet + X-bus backplane
• BMEXBP0800: 8-slot standard Ethernet + X-bus backplane
• BMEXBP1200: 12-slot standard Ethernet + X-bus backplane
• BMEXBP0602: 6-slot dual power supply Ethernet + X-bus backplane
• BMEXBP1002: 10-slot dual power supply Ethernet + X-bus backplane (this product)
• BMEXBP0400H: 4-slot ruggedized Ethernet + X-bus backplane (-25°C to +70°C)
• BMEXBP0800H: 8-slot ruggedized Ethernet + X-bus backplane (-25°C to +70°C)
• BMEXBP1200H: 12-slot ruggedized Ethernet + X-bus backplane (-25°C to +70°C)
• BMEXBP0602H: 6-slot ruggedized dual power supply backplane (-25°C to +70°C)
• BMEXBP1002H: 10-slot ruggedized dual power supply backplane (-25°C to +70°C)
• BMXXBP0400/0600/0800/1200: X-bus only backplanes (M340/M580 compatible, no Ethernet)

Installation Guide

1. Mount the BMEXBP1002 on a 35 mm symmetrical DIN rail or panel using 4 screws (4.32–6.35 mm diameter) or 4 × M6 screws for mounting plate.
2. Install two BMXCPS4002● redundant power supplies in the dedicated CPS1 and CPS2 slots (leftmost positions).
3. Install the BMEP58/BMEH58 processor module in slot 0 (must be in the main rack, not expansion).
4. Install I/O modules, communication modules, and application-specific modules in the remaining 8 dual-bus slots or 2 X-bus-only slots.
5. Connect Ethernet cables (Cat 5e/6) to the embedded switch ports for distributed I/O (EIO) and peer-to-peer communication.
6. For multirack systems, connect BMXXBE1000 backplane expander to the XBE connector on the right side.
7. Install BMXXSP●●● shielding connection kit at the attachment points for EMC compliance.
8. Connect grounding screw to panel earth.
9. Power on and verify module status via EcoStruxure Control Expert diagnostics.

FAQ

Q: Is the correct model BMXXBP1002 or BMEXBP1002?
A: BMEXBP1002 is the correct spelling. BMXXBP series are X-bus only backplanes (BMXXBP0400/0600/0800/1200). BMEXBP series are Ethernet + X-bus dual bus backplanes for M580 (BMEXBP0400/0800/1200/0602/1002). The "E" in BMEXBP stands for Ethernet.

Q: Can I use a standard power supply in the dual power supply slots?
A: No. The CPS1 and CPS2 slots are only compatible with BMXCPS4002● redundant power supplies. Standard power supplies (BMXCPS2000/2010/3500/3540) cannot be installed in these dedicated slots. However, a single BMXCPS4002● can be used in a standard backplane.

Q: How many Ethernet ports does each slot have?
A: The 8 dual-bus slots each have 2 Ethernet connectors (for ring or daisy-chain topology) plus the X-bus connector. The 2 X-bus-only slots have no Ethernet connectivity.

Q: Is BMEXBP1002 compatible with M340?
A> Partially. M340 processors (BMXP34) can be installed in BMEXBP backplanes but cannot use the Ethernet connectivity — they only communicate via X-bus. For full Ethernet functionality, use M580 processors (BMEP58/BMEH58).

Q: What is the maximum number of expansion racks?
A: Up to 7 expansion racks with a cumulative distance of 30 meters (98 ft) using BMXXBE1000 expanders and X-bus cables.

Q: What is the difference between BMEXBP1002 and BMEXBP1002H?
A: BMEXBP1002 is the standard version (0°C to +60°C). BMEXBP1002H is the ruggedized version with extended temperature range (-25°C to +70°C) and enhanced environmental resistance.

Selection Tips

• M580, 4-slot Ethernet + X-bus: BMEXBP0400 / BMEXBP0400H (ruggedized)
• M580, 8-slot Ethernet + X-bus: BMEXBP0800 / BMEXBP0800H (ruggedized)
• M580, 12-slot Ethernet + X-bus: BMEXBP1200 / BMEXBP1200H (ruggedized)
• M580, 6-slot dual PS Ethernet + X-bus: BMEXBP0602 / BMEXBP0602H (ruggedized)
• M580, 10-slot dual PS Ethernet + X-bus: BMEXBP1002 / BMEXBP1002H (ruggedized)
• M340/M580, X-bus only: BMXXBP0400/0600/0800/1200
• Always verify: Processor type (M340 vs M580), redundancy requirements, temperature range, and Ethernet connectivity needs before ordering
• Order redundant power supplies: BMXCPS4002 (standard) or BMXCPS4002H (ruggedized) for dual PS backplanes
• Order shielding kit: BMXXSP0800 or BMXXSP1000 for proper EMC compliance
