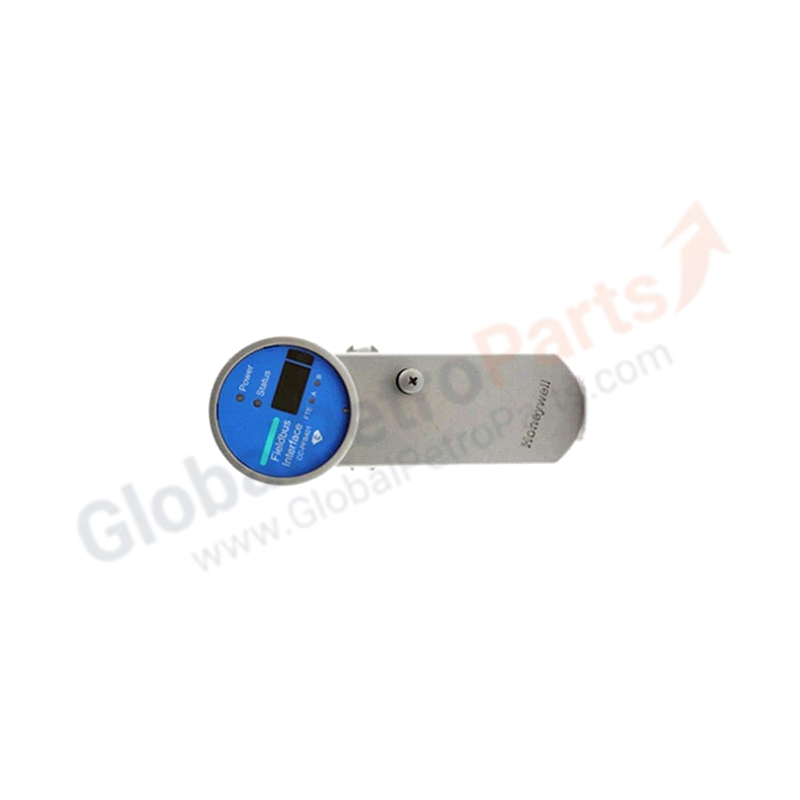

CC-PAIM01 51405045-175 | Honeywell Low-Level Analog Input Multiplexer IOP Module

Overview

The Honeywell CC-PAIM01 51405045-175 is a Series C Low-Level Analog Input Multiplexer (LLMUX) IOP module. It is uniquely engineered to interface the Experion Series C platform with existing solid-state PMIO LLMUX Field Termination Assemblies (FTAs), supporting up to 64 channels of high-density, fully-isolated temperature and millivolt measurements.

Technical Specifications

• Product Type: Low Level Analog (Temperature) Input Module (LLMUX)
• Part Number: 51405045-175
• Model: CC-PAIM01
• Manufacturer: Honeywell
• Document Source: Experion Series-C I/O Specification (EP03-490-520)
• Compatible PMIO FTA Models: MU-TAMR04, TAMT04, TAMT14 (16 channels per FTA)
• Input Channels: Up to 64 fully-isolated channels (expanded in 16-channel increments)
• Isolation: Channel-to-channel, channel-to-PM, and channel-to-power supply common
• Input Scan Rate: 1 Second fixed rate by IOM for all active channels (64 channels/sec max)
• Channel Bandwidth: 0 to 4.7 Hz (-3 dB)
• Nominal Input Range (TC Only): -20 to +100 millivolts
• Maximum Non-Damaging Input (Continuous): -10 to +10 V (TC) / -1 to +2 V @ 100 mA (RTD)
• Gain Error: 0.050% full scale max (-20 to +100 mV range)
• Temperature Stability: ±20 ppm per °C max (TC, millivolt, and RTD inputs)
• Long Term Drift: 500 ppm
• Input Impedance: 1 megohm at dc (TC only)
• Common Mode Voltage (CMV): ±250 VDC or VAC RMS (with respect to Power System common, dc to 60 Hz)
• CMRR (50/60 Hz): 120 dB min (with 1000 ohms max source impedance)
• Voltage (Channel-to-Channel): ±250 VDC or VAC RMS (dc to 60 Hz)
• Crosstalk (dc to 60 Hz): 80 dB (120 dB at 50 Hz and 60 Hz)
• NMRR (50/60 Hz): 60 dB min
• Line Frequency Integration: Fixed selection of 50 Hz or 60 Hz
• RTD Sensor Excitation Current: 1 milliamp
• Cold Junction Reference (CJR) Accuracy: ±1.0 °C Max (0 to +50 °C) / ±1.5 °C Max (-20 to +60 °C)
• TC Linearization Accuracy: Based on 4th order polynomials (NIST Monograph 175, ITS90, JIS C-1602-1995)
• Open Thermocouple Detection (OTD): Qualified per conversion (≤1000 Ω guaranteed no-trip, ≥1500 Ω guaranteed trip)
• RTD Max Lead Resistance: 15 Ω
• Surge Protection (Sensor Terminals): EN 61000-4-5 (1kV line-to-line, 2kV line-to-gnd)
• Maximum Cable Distance (IOTA to FTA): 1000 feet (16 gauge wire, two twisted pair per FTA via cable adapter)
• PMIO FTA Dimensions: 63.5 mm D x 124.46 mm W x 307.34 mm L (2.5" D x 4.9" W x 12.1" L)

Supported Measurement Profiles

• RTD Sensors: Pt100 DIN 4376 (-180 to +800°C), Pt100 JIS C-1604 (-180 to +650°C), Ni120 ED #7 (-45 to +315°C), Cu10 SEER (-20 to +250°C)
• Thermocouples (ANSI Spec): Type J (-200 to +1200°C), Type K (-100 to +1370°C), Type E (-200 to +1000°C), Type T (-230 to +400°C), Type B (+100 to +1820°C), Type S (0 to +1700°C), Type R (0 to +1700°C), JAPAN TYPE R’ (0 to +1770°C)
• Linear Millivolt: -20 to +100 millivolts

Installation Notes

• Install the compatible PMIO FTAs inside dedicated FTA channels (Note: these mounting spaces are similar to but distinct from standard Series C channels).
• Connect the CC-PAIM01 module interface to the field termination block via the required cable adapter option up to a maximum distance of 1000 feet.
• Configure the line frequency integration parameters to exactly 50 Hz or 60 Hz to ensure the 120 dB common-mode rejection performance.
• Verify that the total loop resistance for active 3-wire/4-wire RTD sensor paths remains strictly under the 15 Ω threshold.
