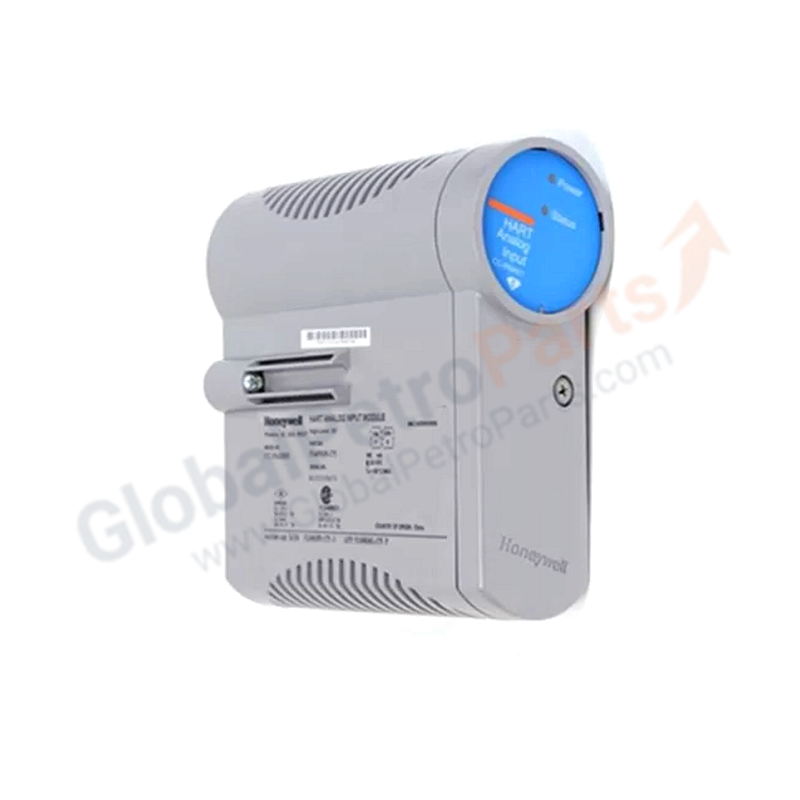

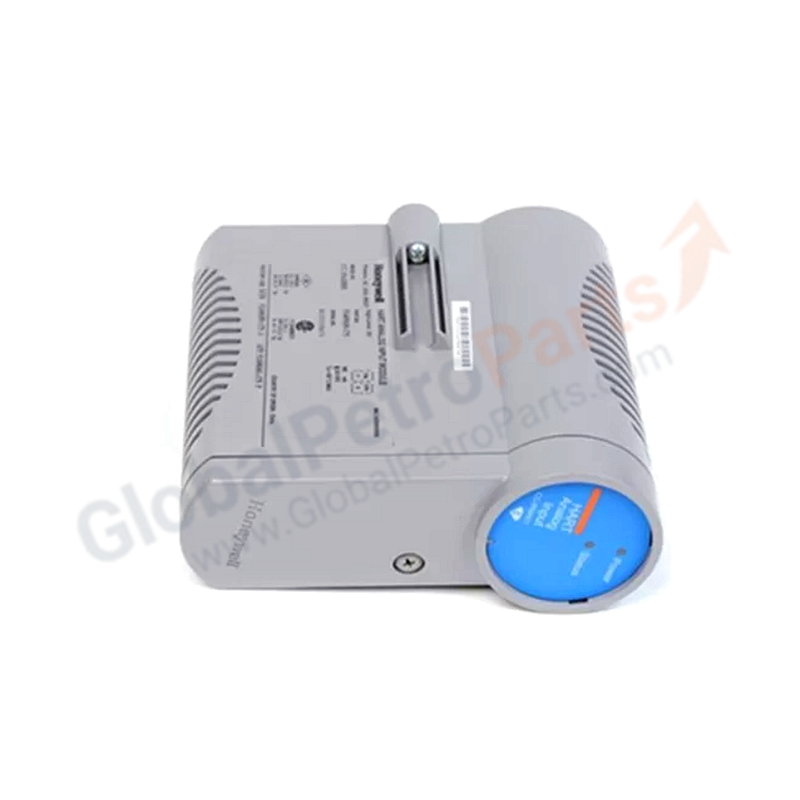

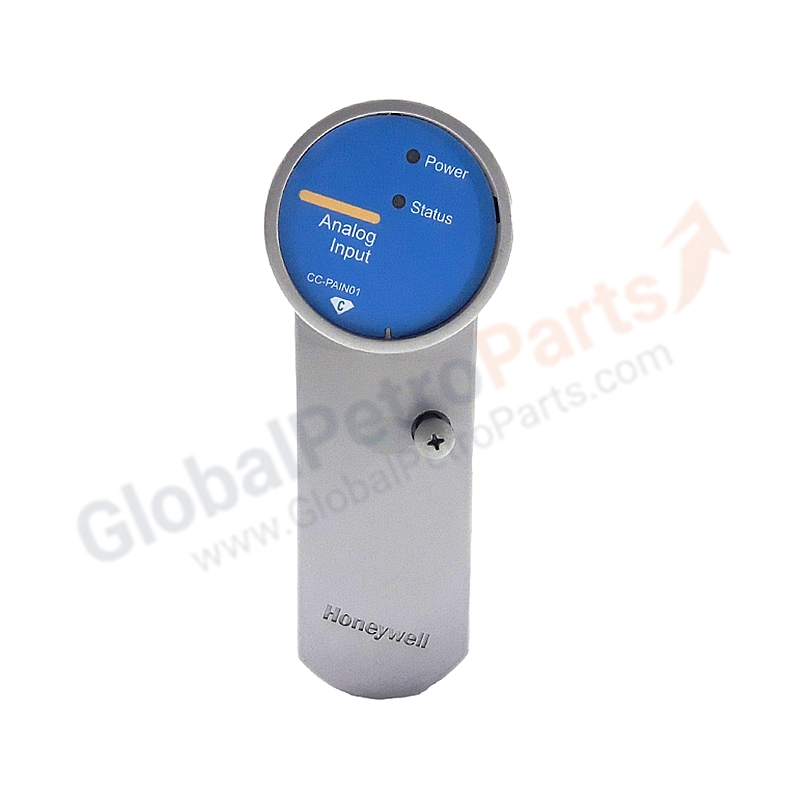

CC-PAIN01 51410069-175 | Honeywell High-Level Analog Input Module

Overview

The Honeywell CC-PAIN01 51410069-175 is a 16-channel non-HART High-Level Analog Input (HLAI) module designed specifically for the Experion PKS Series C I/O architecture. It provides continuous 1-second process variable sampling for single-ended 4-20 mA current loops directly connected to the C300 controller platform.

Technical Specifications

• Product Type: Analog Input High Level Non-HART Module (16-point)
• Part Number: 51410069-175
• Associated Circuit Board Part Number: 51405038-175 / 51405038-275
• Model: CC-PAIN01
• Manufacturer: Honeywell
• System Compatibility: Experion PKS Series C / C300 Controller
• Number of Channels: 16 Single-ended input channels
• Input Signal Type: 4 to 20 mA current loop
• A/D Converter Resolution: 16-bit Sigma-Delta
• Input Impedance: 250 Ω nominal (for standard 4-20 mA to 1-5 V conversion)
• Input Scan Rate: 1 second fixed loop rate
• Galvanic Isolation: 1500 VDC (Channel-to-system and channel-to-frame isolation)
• Mains Frequency Rejection: Configurable 50 Hz or 60 Hz filter parameters
• Field Loop Power: Provided through independent current-limiting electronics per channel
• Short-Circuit Protection: Built-in per-channel current-limiting circuitry (No external fuses required)
• Operating Temperature: -40 °C to +70 °C (-40 °F to +158 °F)
• Storage Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
• Relative Humidity: 10% to 95% non-condensing
• Conformal Coating: Yes (Standard ISA-S71.04 Class G3 environmental coating protection)
• Hazardous Area Approvals: Class I, Division 2 / Zone 2 Non-Incendive certified
• Country of Origin: USA

Compatible Module Termination Assemblies (IOTA)

• CC-TAIN01 (51308301-125 / 51308301-175): Series C Analog Input Non-Redundant IOTA (6-inch width)
• CC-TAIN11 (51308303-125 / 51308303-175): Series C Analog Input Redundant IOTA (12-inch width)

Installation Notes

• Plug the CC-PAIN01 module straight onto its designated slots on either the CC-TAIN01 (non-redundant) or CC-TAIN11 (redundant) IOTA board.
• Securely tighten the built-in mechanical module screws into the IOTA backplane to establish proper earth and structural contact.
• Ensure that field signal shielding is terminated exclusively at the single-point common grounding rail of the Series C carrier assembly.
• Verify that the configured grid frequency rejection parameters (50 Hz or 60 Hz) match the local power plant layout inside Experion Control Builder.
