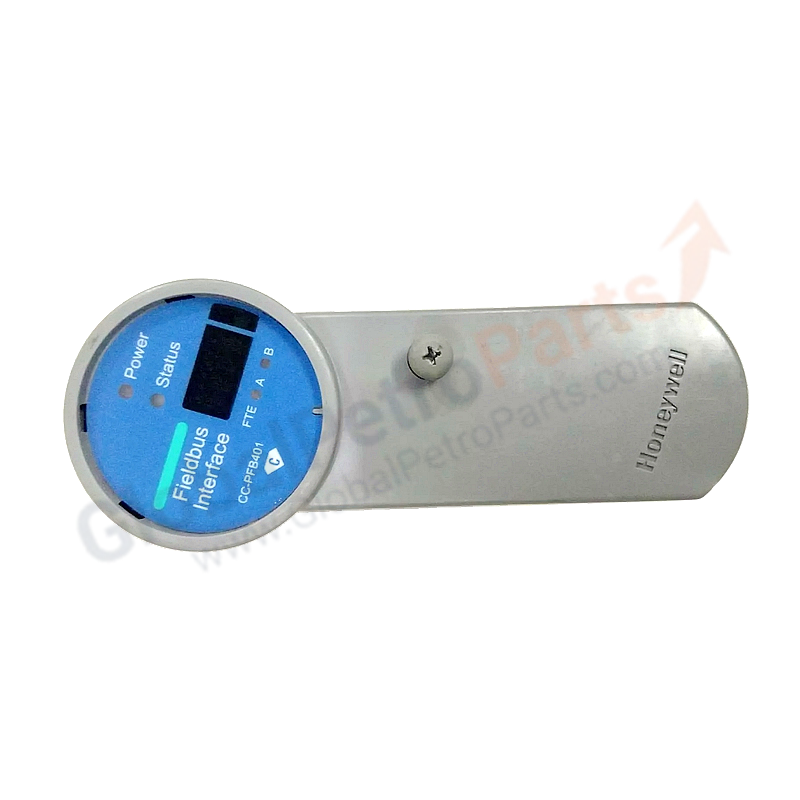

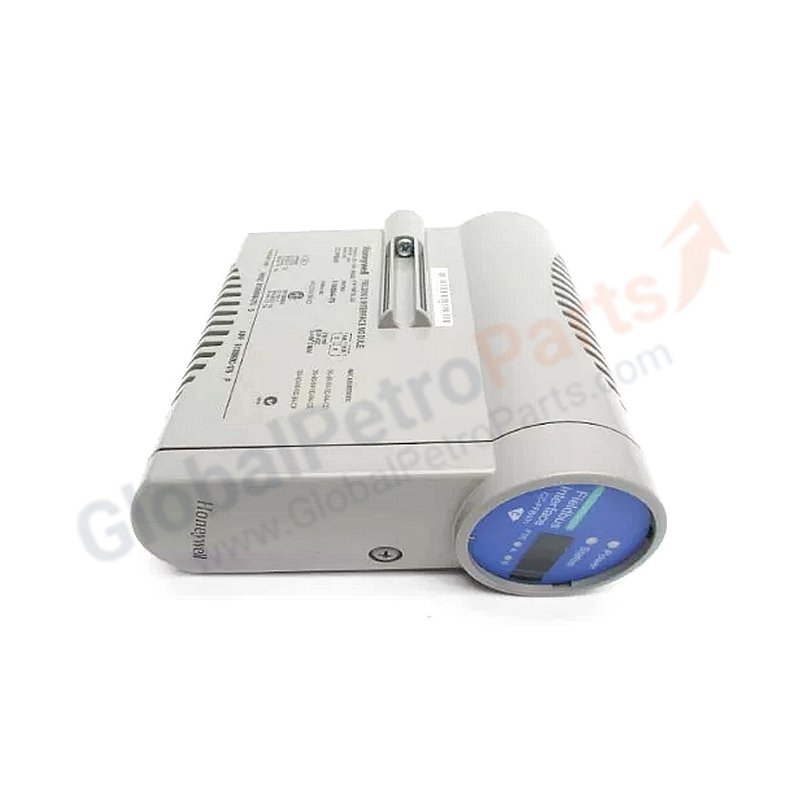

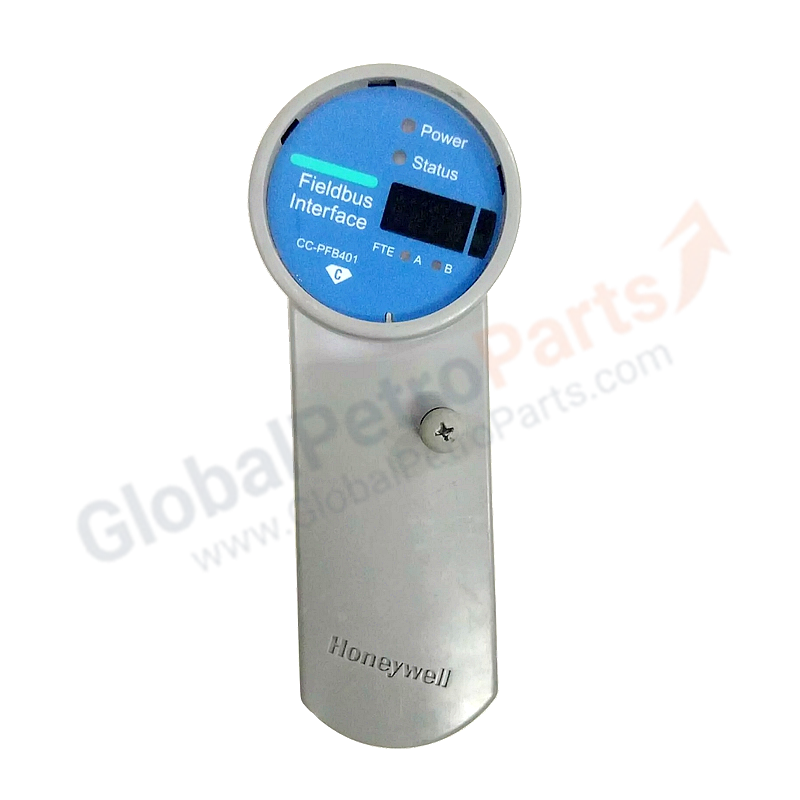

CC-PFB401 51405044-175 | Honeywell | 4-Link Fieldbus Interface Module

Overview

The Honeywell CC-PFB401 51405044-175 is a 4-Link Fieldbus Interface Module (FIM4) engineered for the Experion Series C platform. It acts as an intelligent communication bridge between the C300 controller's Fault Tolerant Ethernet (FTE) layer and up to four independent Foundation Fieldbus H1 links, executing precise peer-to-peer control data scheduling.

Technical Specifications

• Input / Output Model: CC-PFB401 - Fieldbus Interface Module (4-Link)
• Part Number: 51405044-175
• Manufacturer: Honeywell
• Document Source: Experion Series-C I/O Specification (EP03-490-520_V10_SCIO_1_5)
• Number of H1 Links Supported: 4 independent Fieldbus H1 links per module
• H1 Link Transmission Speed: 31.25 Kbps (Standard Foundation Fieldbus H1 rate)
• Device Capacity per Link: Up to 16 certified Foundation Fieldbus devices per H1 link
• Total Device Capacity per FIM4: Up to 64 field devices max per module
• Macrocycle Execution Support: Fully synchronized with the C300 Control Execution Environment (CEE)
• Supply Voltage Rating: 24 V DC nominal (Distributed via Series C IOTA carrier)
• Galvanic Isolation: 1500 VDC isolation barrier guarding system logic from field-side transients
• Conformal Coating: Yes (Standard ISA-S71.04 Class G3 environmental coating protection)
• Redundancy Support: Yes (Supports 1:1 Active/Standby hot-shadowing redundancy)

Compatible Module Termination Assemblies (IOTA Models)

• CC-TFB401: Series C FIM4 Non-Redundant 6” IOTA assembly
• CC-TFB411: Series C FIM4 Redundant 12” IOTA assembly
• CC-GFB411: Series C FIM4 Redundant 12” IOTA assembly (Conformally Coated)
• CC-GFB421: Series C FIM4 Non-Redundant 6” IOTA assembly (Conformally Coated)

Installation Notes

• Insert the CC-PFB401 module carefully onto its matching 6-inch non-redundant (CC-TFB401) or 12-inch redundant (CC-TFB411) Series C IOTA block interface.
• Verify that external Foundation Fieldbus H1 power conditioners are connected downstream on the IOTA loops to properly bias the 31.25 Kbps network lines.
• Ensure that correct H1 bus terminators (two 100 Ω resistors in series with a 1 µF capacitor) are active at both physical extremities of each H1 link wire segment to maintain adequate signal amplitude.
• Confirm that the module's target redundancy matching configuration is established inside the Experion Control Builder topology prior to completing firmware downloads.
