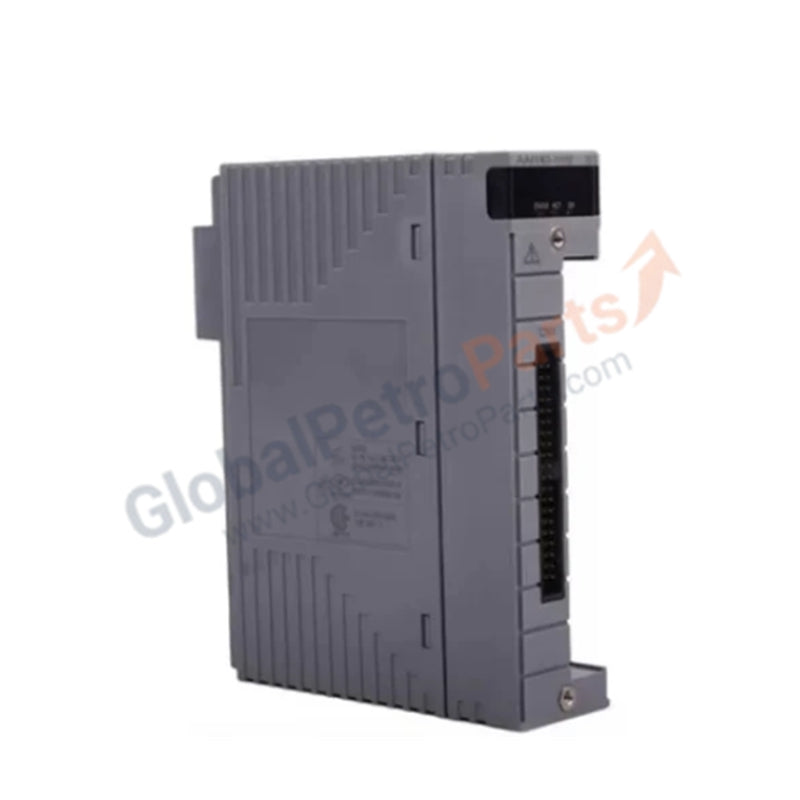

CENTUM VP | Yokogawa AAI543-H03 16-Channel HART Analog Output Module

Product Overview

The Yokogawa AAI543-H03 functions as a high-integrity analog output interface for the CENTUM VP distributed control system. This module commands up to 16 isolated field actuators, valves, and positioners using 4 to 20 mA signals. By integrating the HART protocol, it facilitates bidirectional digital communication, allowing the DCS to perform remote diagnostics and gain deep visibility into "smart" field device health. We supply this unit as 100% Brand New and original, specifically built with enhanced environmental protection to ensure continuous operation in corrosive and wide-temperature industrial zones.

Part Number Breakdown

The AAI543-H03 utilizes a specific suffix logic to define its communication protocols and physical durability:

Technical Specifications

The AAI543-H03 delivers deterministic signal control and extreme-duty environmental resilience.

• Output Channels: 16, fully isolated

• Signal Range: 4 to 20 mA DC

• Communication: HART Protocol (Digital over Analog)

• Operating Temperature: -20°C to +70°C

• Environmental Protection: ISA Standard G3 Conformal Coating

• Configuration: Supports Dual-Redundant Switch-over

• Isolation Barrier: High-integrity channel-to-system isolation

• Update Period: 10 ms

• Condition: 100% Brand New and Original

Engineering Advantages

The AAI543-H03 resolves critical deployment challenges in high-stakes process industries:

• Corrosive Atmosphere Immunity: The ISA Standard G3 option applies a specialized conformal coating to the internal circuitry. This barrier prevents silver and copper corrosion in environments containing hydrogen sulfide ($H_{2}S$), sulfur dioxide ($SO_{2}$), and chlorine ($Cl_{2}$), such as paper mills, refineries, and wastewater treatment plants.

• Extreme Thermal Resilience: While standard modules fail in harsh weather, the "Suffix 3" variant operates reliably from -20°C to +70°C. This wide thermal window allows for installation in localized field enclosures without the immediate need for expensive HVAC systems or auxiliary heating.

• Advanced "Smart" Maintenance: Integrated HART support eliminates the need for external hand-held communicators. The module passes diagnostic alerts—such as valve stiction or positioner failure—directly to the DCS Asset Management System, enabling proactive maintenance before a process trip occurs.

• Zero-Downtime Redundancy: The standard switch-over response ensures that in a redundant pair configuration, the secondary module takes control instantly if the primary fails. This prevents signal bumps that could destabilize sensitive pressure or flow control loops.

FAQs

What is the benefit of the G3 option for this module?

The G3 option (Suffix 3) ensures the module meets ISA-S71.04-1985 G3 severity levels. It protects the hardware against "creeping corrosion" caused by humidity and high concentrations of atmospheric contaminants, significantly extending the module’s MTBF (Mean Time Between Failures).

Can I use the AAI543-H03 with non-HART field devices?

Yes. The module functions as a standard 4-20 mA analog output module for conventional actuators. The HART communication remains available for any future instrument upgrades without requiring a module replacement.

How do I install this module for redundant operation?

You must install a pair of AAI543-H03 modules in a designated redundant I/O nest. The CENTUM VP system software manages the "Suffix 0" switch-over response, ensuring the standby module maintains the last output value during a transition.

Does this module require a specific terminal block?

The AAI543-H03 is compatible with several Yokogawa terminal solutions, including pressure clamp blocks and KS cable interface adapters. Ensure the terminal board matches the 16-channel isolated pinout for signal integrity.
