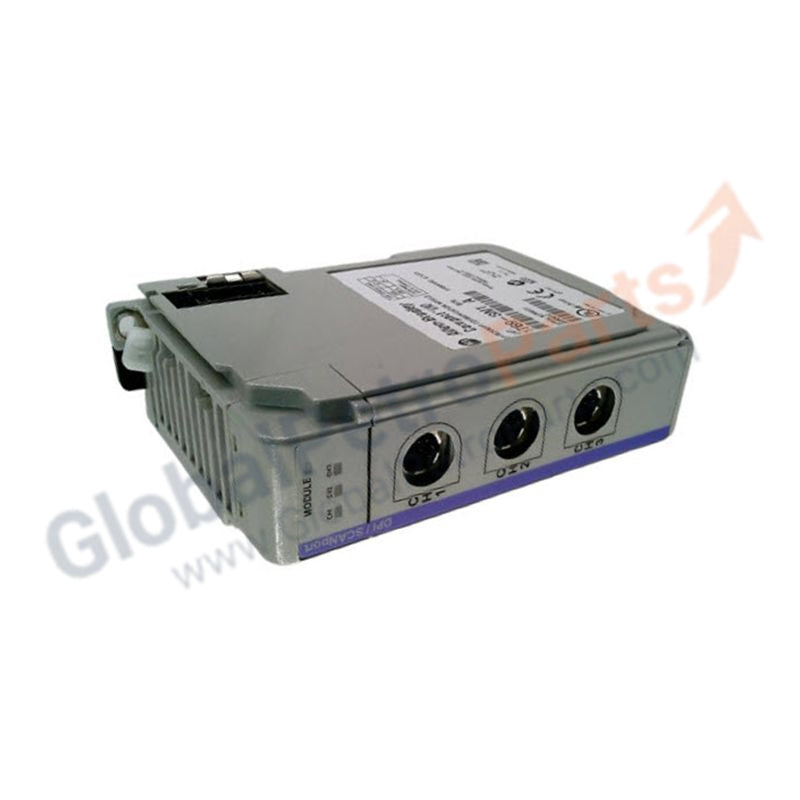

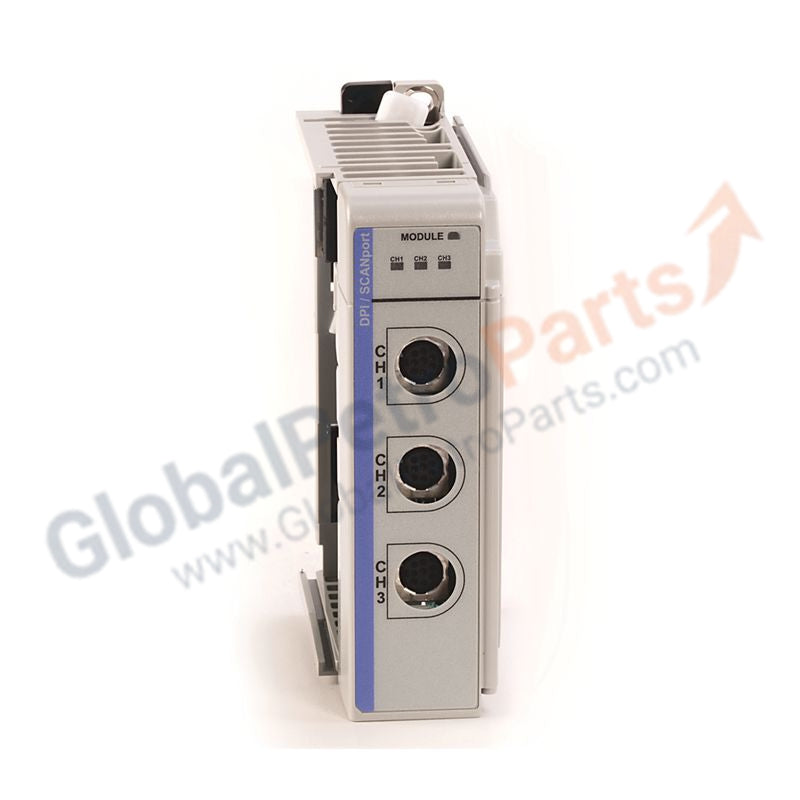

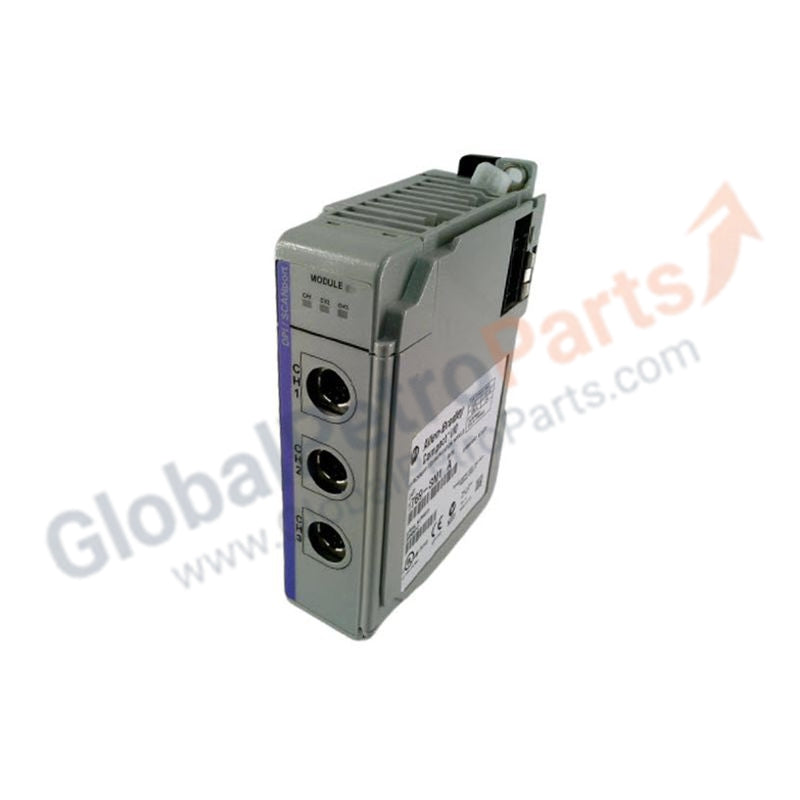

Communication Module Allen Bradley 1769-SM1
  • Communication Module Allen Bradley 1769-SM1
  • Communication Module Allen Bradley 1769-SM1
  • Communication Module Allen Bradley 1769-SM1
Communication Module Allen Bradley 1769-SM1

Allen Bradley

Communication Module Allen Bradley 1769-SM1

10 left

  • Manufacturer: Allen Bradley

  • Product No.: 1769-SM1

  • Product Type: Communication Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 480g

  • Shipping port: Xiamen

  • Warranty: 12 months

Special offer ends!
00 :
00 :
00

Product Description

The 1769-SM1 is a communication adapter for Allen-Bradley CompactLogix and MicroLogix 1500 systems. It connects legacy SCANport/DPI drives (e.g., PowerFlex 7-Class, 1305, 1336, 1397) directly to the 1769 Compact I/O backplane, allowing the controller to perform real-time monitoring, command execution, and status feedback as if the drive were a local I/O module. This simplifies migration of older drives into modern Logix-based control systems.

Technical Specifications

Item Specification
Catalog Number 1769-SM1
Module Type Communication Adapter / Drive Interface
Compatible Drives SCANport-capable (PowerFlex 7-Class, 1305, 1336, 1397, etc.)
Backplane Current Draw 280 mA @ 5.1V DC
Integrated Ports 1 SCANport / DPI interface
Data Transfer Rate 125–500 Kbps (drive-dependent)
I/O Capacity Logic commands, status, reference, feedback, datalinks
Maximum Datalinks 8 (4 in / 4 out)
Power Supply Distance Rating 4 modules
Isolation 500V DC between SCANport and backplane
Slot Width 1 Slot (35 mm)
Operating Temperature 0–60 °C
Dimensions (HxWxD) 118 x 35 x 87 mm

Key Notes

  • Integration: Connects older SCANport/DPI drives as local I/O, no complex gateway needed

  • Programming: Configurable via RSLogix 5000, Studio 5000, or Connected Components Workbench (CCW)

  • Power: Draws logic power from the 1769 backplane; the drive provides SCANport-side power

  • Capacity: Supports one drive per module; multiple drives require multiple SM1 modules

FAQs

Q: Can this be used with PowerFlex 525 or 520 drives?
A: No. Use direct EtherNet/IP for newer drives; SM1 is for legacy SCANport/DPI devices.

Q: Does this module need an external power supply?
A: No, logic power comes from the 1769 backplane.

Q: How many drives can one SM1 control?
A: One SCANport device per module.
