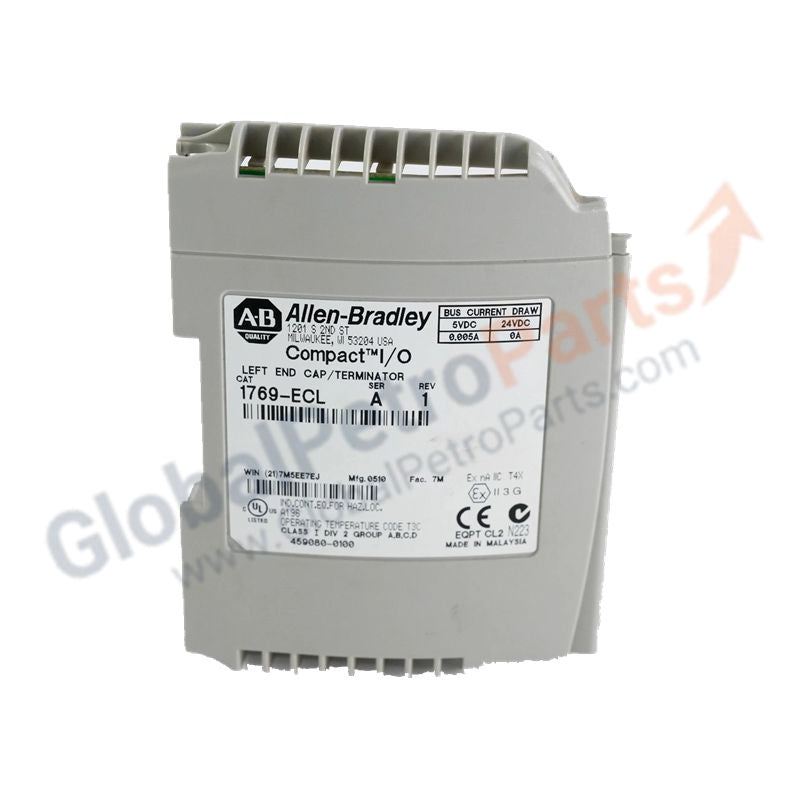

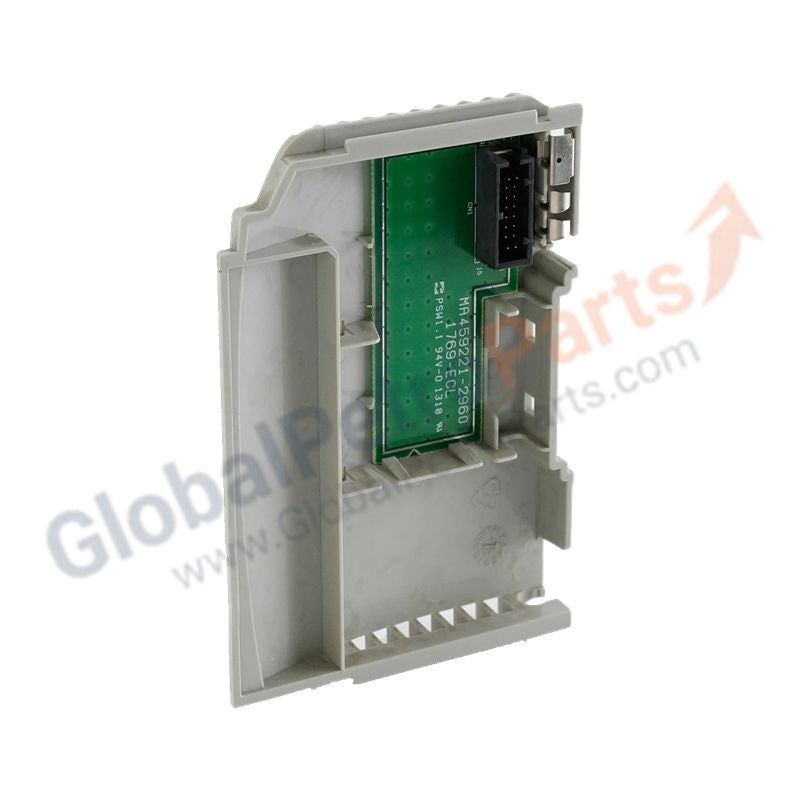

Compact I/O Left End Cap / Bus Terminator Allen-Bradley 1769-ECL

Product Overview

The 1769-ECL is a passive left end cap used to terminate the communication bus on the left side of an Allen-Bradley 1769 Compact I/O bank. While often overlooked, it is essential for maintaining signal integrity across the backplane, preventing reflections that could cause intermittent communication faults or system instability.

Every 1769 I/O assembly requires both a right end cap (1769-ECR) and a left end cap (1769-ECL) for proper operation.

Technical Specifications

Installation and Safety

• Positioning: Must be installed on the leftmost end of a 1769 I/O bank.

• Bus Connectivity: Ensure the bus lever is fully locked for a secure connection to the 5V DC backplane.

• System Integrity: Operating without a properly installed left end cap can cause I/O bus faults or erratic module behavior.

• Thermal Consideration: Generates minimal heat but must remain within 0–60 °C to maintain stability of termination resistors.

Common Technical Questions

• Do I need the 1769-ECL with a CompactLogix 5370 L1 or L2 controller?
  Standard L1 and L2 controllers are packaged units with integrated left-side bus connections. For L3 series controllers or modular expansion banks (e.g., 1769-AENTR), the 1769-ECL is mandatory on the leftmost expansion module or power supply.

• Can I use a 1769-ECR (Right End Cap) on the left side?
  No. The 1769-ECR and 1769-ECL are not interchangeable. They have mirrored connectors and different internal termination circuits designed for their respective ends.
