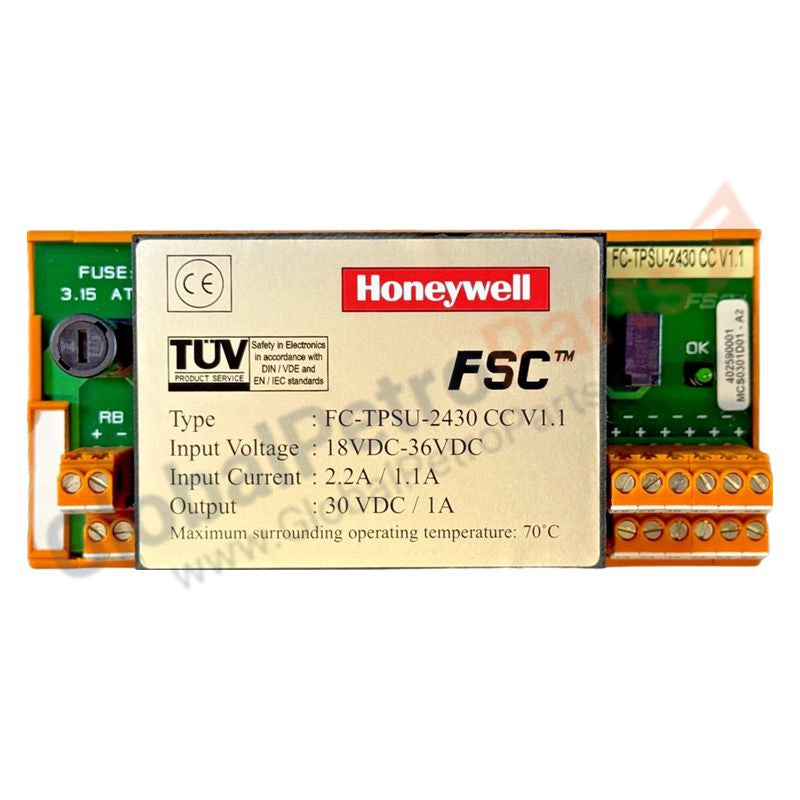

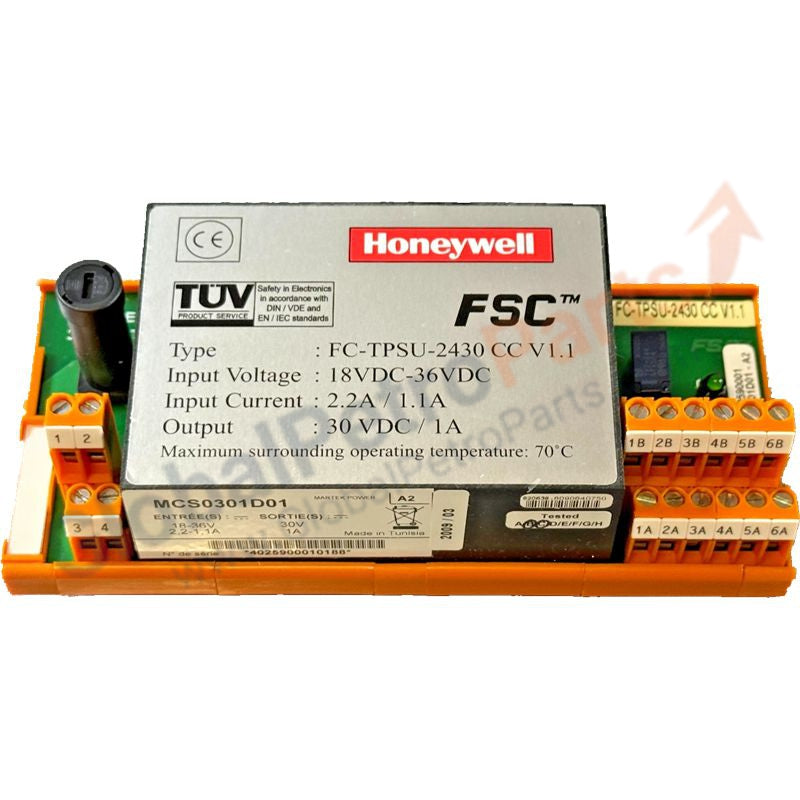

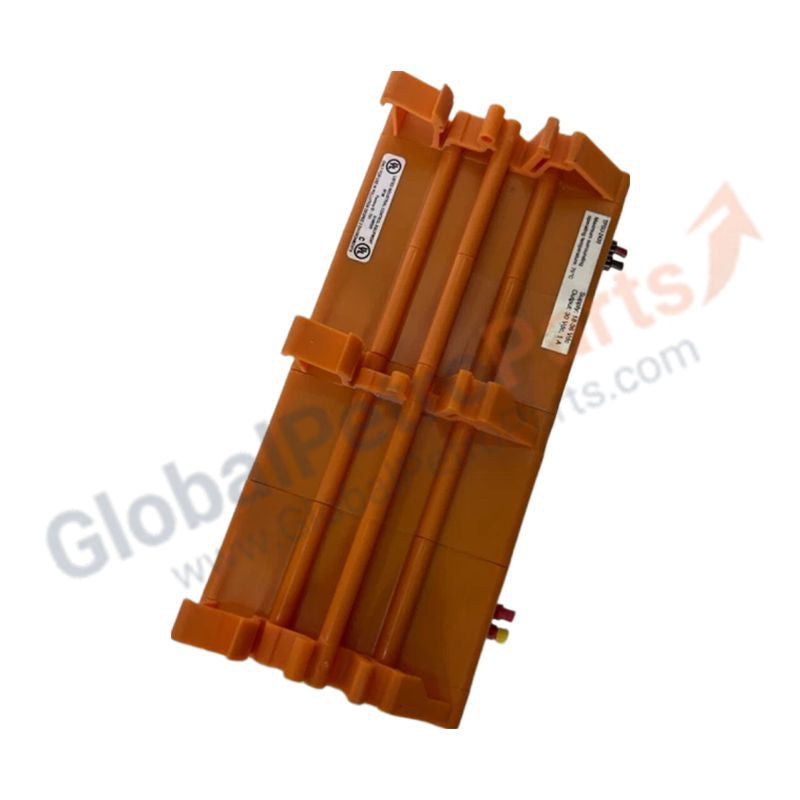

DC/DC Converter Module Honeywell FC-TPSU-2430

Product Description

The FC-TPSU-2430 is a precision DC/DC converter module designed for the Honeywell Safety Manager system. It provides stable, regulated voltages to the system’s internal logic solvers and I/O modules, protecting sensitive electronics from fluctuations and electrical noise typical in industrial environments.

With a compact 4TE footprint and lightweight 0.14 kg design, the module is optimized for high-density Safety Manager racks. It contributes to the system’s SIL 3 integrity, ensuring reliable power delivery for mission-critical applications in oil and gas, petrochemical, and power generation facilities.

Technical Specifications

Key Performance Features

• High Isolation: Electrically separates the primary power source from control logic to prevent propagation of faults.

• Space-Saving Design: Slim 2 cm width maximizes rack density, allowing more I/O modules in a single chassis.

• Thermal Efficiency: Low power dissipation reduces cabinet temperature, prolonging module lifespan.

• Safety Integration: Works with Honeywell’s diagnostic monitoring to alert operators if power thresholds are exceeded.

Technical FAQ

Where is the FC-TPSU-2430 typically installed?
Installed in dedicated power supply slots of a Safety Manager rack, often in redundant pairs to prevent a single module failure from causing a system trip.

Does this module require manual calibration?
No. It is factory-calibrated and operates as a plug-and-play module, providing regulated power immediately upon insertion.
