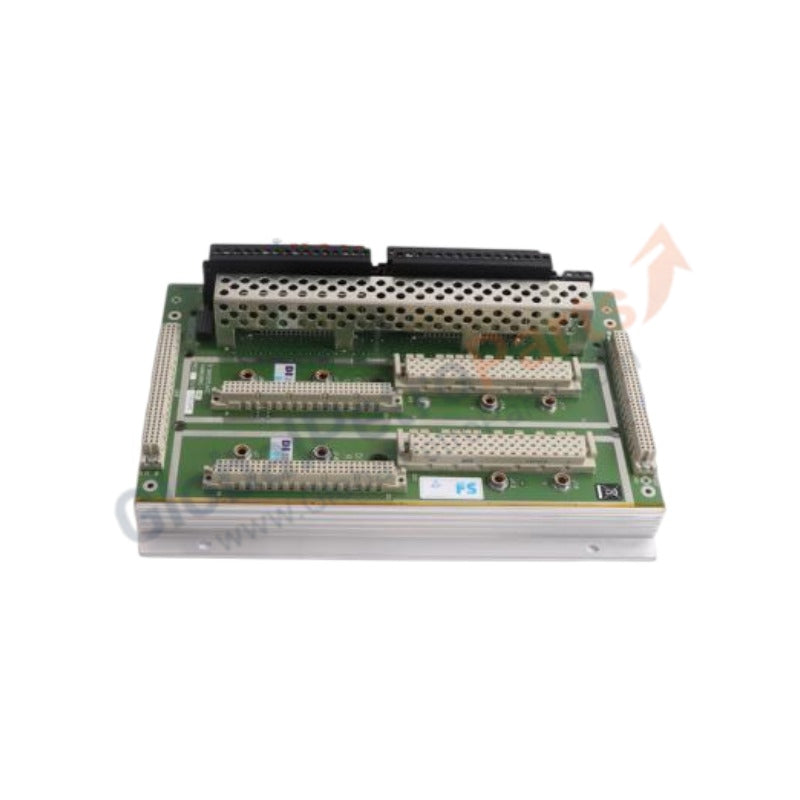

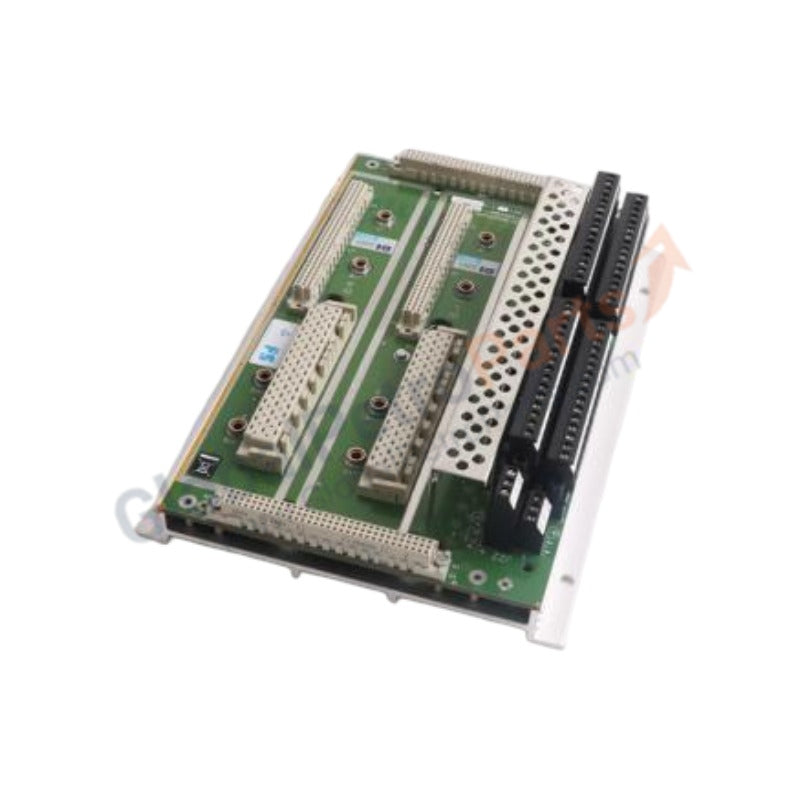

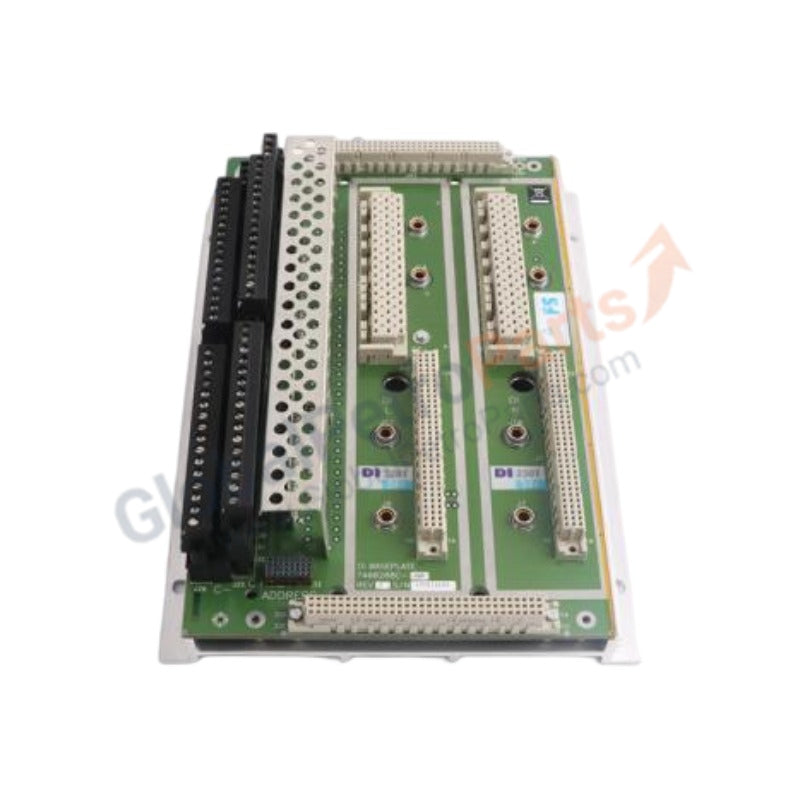

DI2301 7400208C-020 Triconex Digital Input Baseplate

10 left

Manufacturer: Triconex
Product No.: DI2301 7400208C-020
Product Type: Digital Input Baseplate
Product Origin: USA
Payment:T/T, Western Union
Weight: 170g
Shipping port: Xiamen
Warranty: 12 months

Special offer ends!

Product Description

The DI2301 7400208C-020 digital input baseplate provides reliable signal interface support for Triconex safety systems.
Moreover, it ensures stable connection between field input devices and system I/O modules.
In addition, engineers use DI2301 7400208C-020 to maintain accurate signal acquisition in industrial automation environments.
Therefore, the baseplate supports consistent performance in mission-critical control applications.

Technical Specifications

Parameter	Specification
Model	DI2301 7400208C-020
Product Type	Digital Input Baseplate
Manufacturer	Triconex
System Compatibility	Triconex TMR Safety Systems
Function	Digital input module mounting and signal routing
Slot Capacity	Multi-module configuration (system dependent)
Communication Type	Backplane data communication
Interface Type	Edge connector backplane interface
Supported Modules	Digital input modules
Input Signal Type	Dry contact / field digital signals
Power Distribution	Integrated backplane power routing
Input Voltage	24 V DC system supply (typical)
Power Consumption	Depends on installed module configuration
Current Capacity	System-dependent load distribution
Redundancy Support	TMR architecture compatible
Hot Swap Support	Supported in configured system environments
Dimensions	Approx. 480 × 300 × 120 mm
Weight	Approx. 4.0–6.5 kg
Mounting Method	Rack-mounted chassis installation
Operating Temperature	0°C to +60°C
Storage Temperature	-40°C to +85°C
Relative Humidity	5%–95% non-condensing
Vibration Resistance	Industrial-grade vibration tolerance
Shock Resistance	Suitable for control cabinet environments
EMI Protection	Shielded industrial design
Energy Storage	No internal energy storage components

FAQ

Q1: What is the function of the DI2301 7400208C-020 baseplate?
The DI2301 7400208C-020 supports mounting and signal routing for digital input modules in Triconex systems.

Q2: Is the DI2301 7400208C-020 compatible with TMR systems?
Yes, the DI2301 7400208C-020 is fully compatible with Triconex TMR safety architectures.

Q3: What type of signals does it support?
The DI2301 7400208C-020 supports dry contact and standard digital input signals.

Q4: Can the DI2301 7400208C-020 support system expansion?
Yes, the DI2301 7400208C-020 supports modular expansion depending on system configuration.

Q5: How fast can you ship the DI2301 7400208C-020?
We usually ship within three days to two weeks depending on order size and logistics arrangements.

We aim to provide reliable products and a smooth purchasing experience. If there is a problem with your order, please contact us and we will assist according to our Refund Policy.

We provide international shipping options to meet different delivery requirements. Please review details regarding methods and timelines in our Shipping Policy.

We provide a 12-month warranty for all products, subject to normal use and proper installation.
