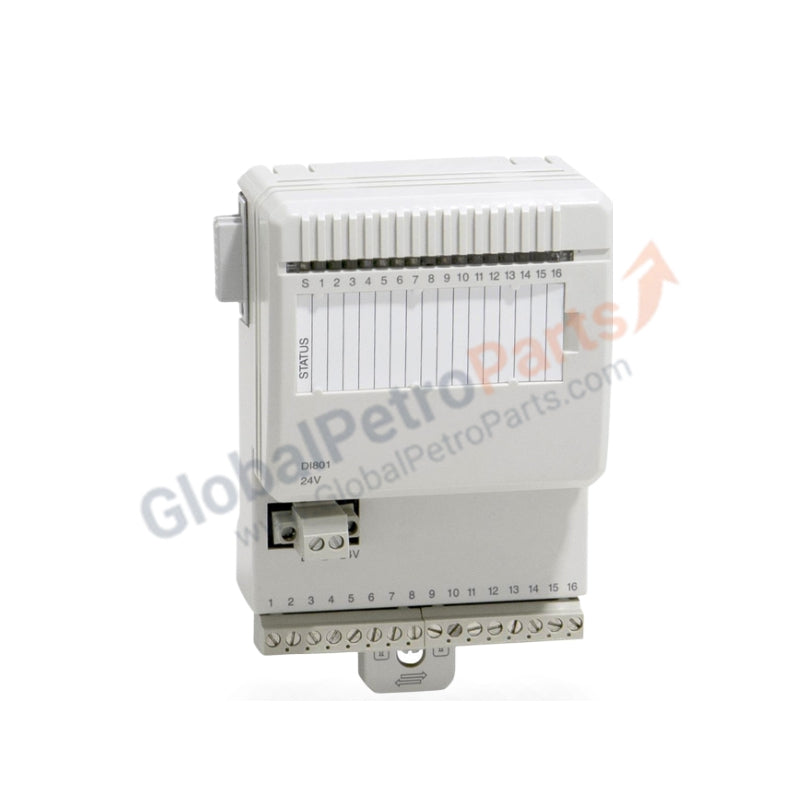

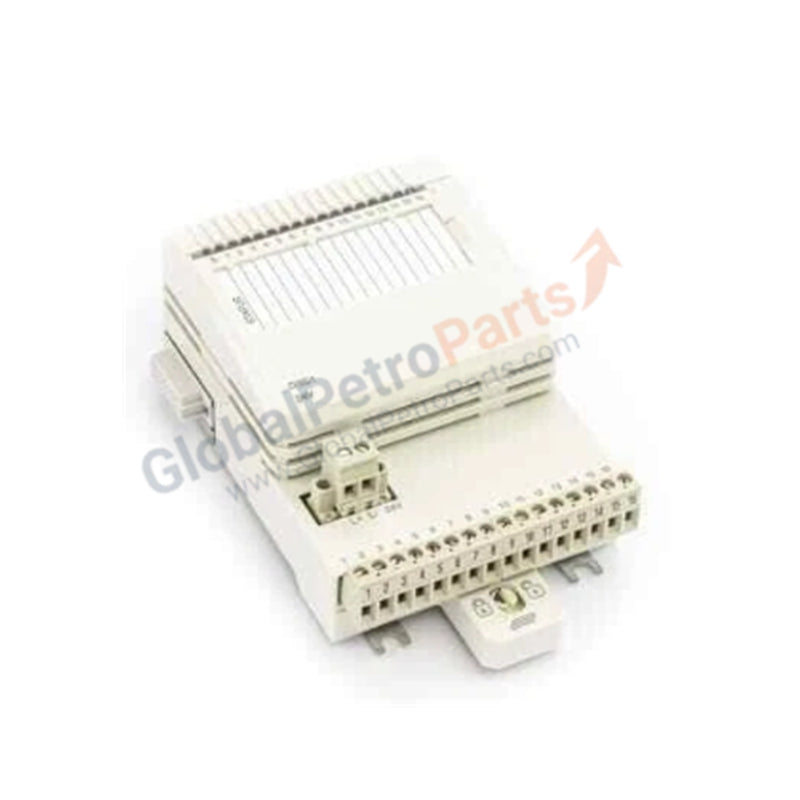

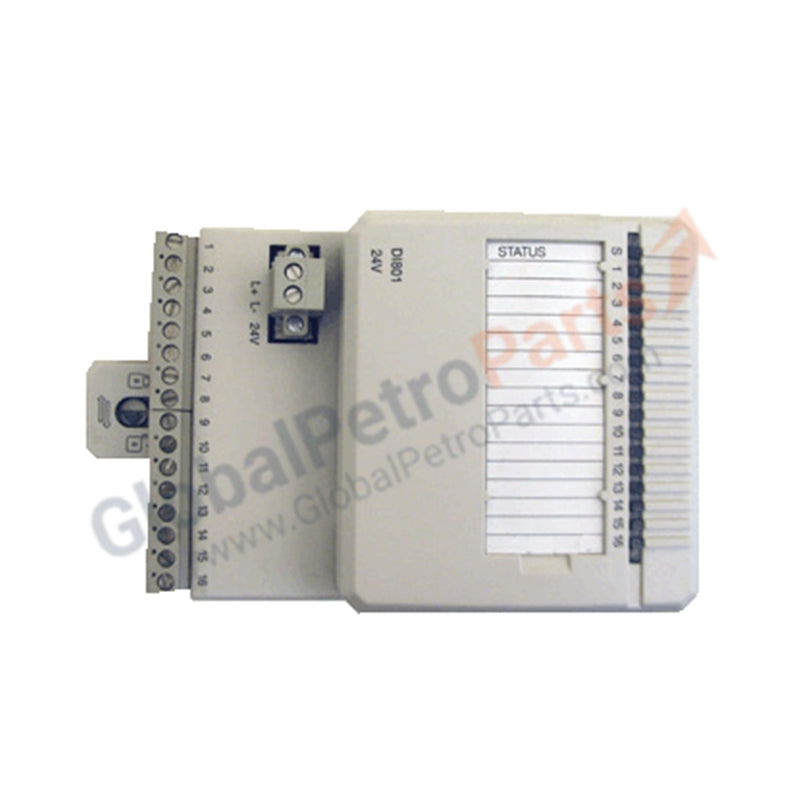

DI801 3BSE020508R1 | ABB | S800L Digital Input Module

Product Overview

The ABB DI801 (3BSE020508R1) functions as a high-density digital interface for the S800L I/O family. This module manages 16 independent channels, accepting 24V DC signals from field devices such as limit switches, pushbuttons, and proximity sensors. Utilizing a current-sinking configuration, the DI801 translates physical binary states into logic data for the controller. We supply this unit as 100% Brand New and Original, ensuring your control system operates with factory-certified precision and zero previous service hours.

Technical Specifications

The DI801 delivers robust performance through the following technical parameters:

Engineering Advantages

• High-Density Monitoring: The 16-channel architecture maximizes I/O capacity within the compact S800L mechanical footprint. This density reduces the total number of modules required for large-scale digital monitoring, saving valuable rail space in crowded electrical enclosures.

• Customizable Signal Filtering: The module offers four selectable digital filter times (2ms to 16ms). This allows engineers to suppress contact bounce from mechanical switches or eliminate electrical noise interference, ensuring only valid state changes reach the controller.

• Extended Field Reach: Support for cable runs up to 600 meters enables the integration of remote sensors without the need for intermediate signal repeaters. This reduces hardware costs and potential failure points in sprawling industrial facilities.

• Integrated Process Supervision: The module specifically monitors the process voltage on Channel 16. This built-in diagnostic feature alerts the system to power supply failures or wiring faults, allowing for immediate corrective action before a process shutdown occurs.

• Versatile Terminal Connectivity: The hardware accepts a wide range of wire gauges (30-12 AWG) and types (solid or stranded). This flexibility simplifies field installation, as technicians can utilize existing onsite cabling without requiring specialized adapters.

FAQs

• What is the significance of the "Current Sinking" signal type?

  In a current-sinking configuration, the DI801 provides the path to ground for the connected field device. The sensor or switch must "source" the 24V DC signal to the module input to register a logic "1" state.

• How do the front LEDs assist with troubleshooting?

  The "S" (Status) LED provides an immediate visual check of module health, indicating run or fault conditions. Additionally, individual LEDs for Channels 1-16 light up to show the real-time status of each input, allowing for rapid loop-checks without a multimeter.

• Does the DI801 require a separate termination unit?

  The S800L series, including the DI801, features an integrated terminal block design. This eliminates the need for separate Module Termination Units (MTUs), further reducing installation depth and complexity compared to standard S800 modules.

• Can I use this module for Sequence of Events (SOE) recording?

  No, the DI801 does not support SOE time-stamping at the module level. For applications requiring millisecond-accurate event recording, you should consider the specialized SOE modules within the S800 range.
