Triconex

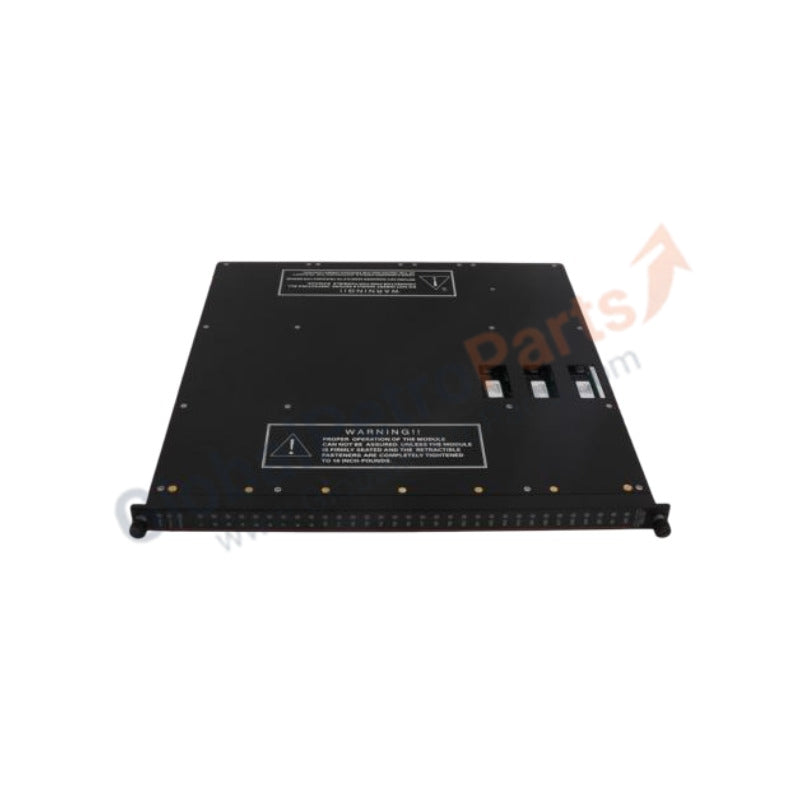

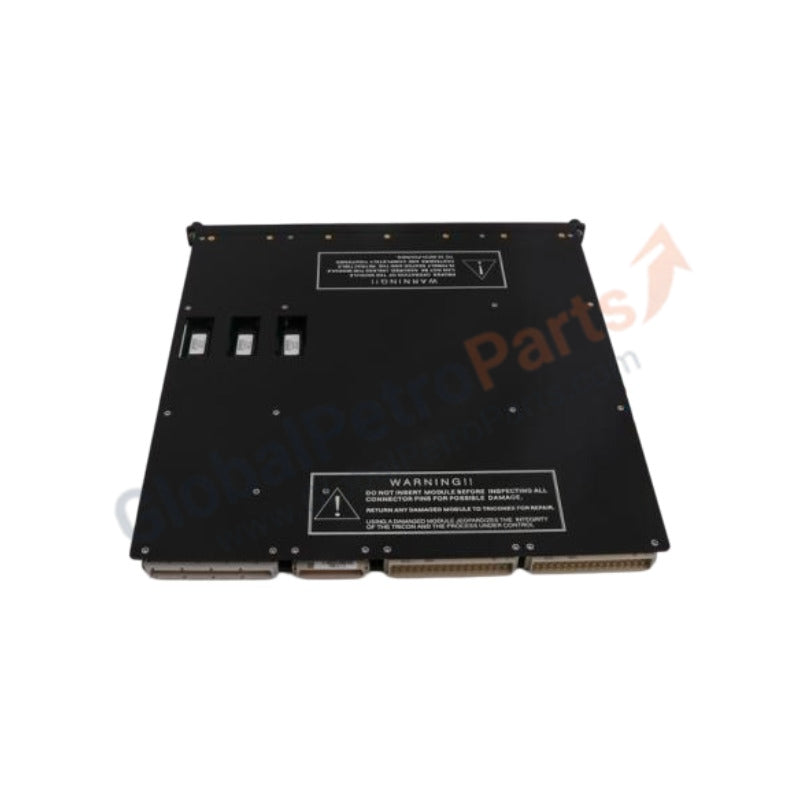

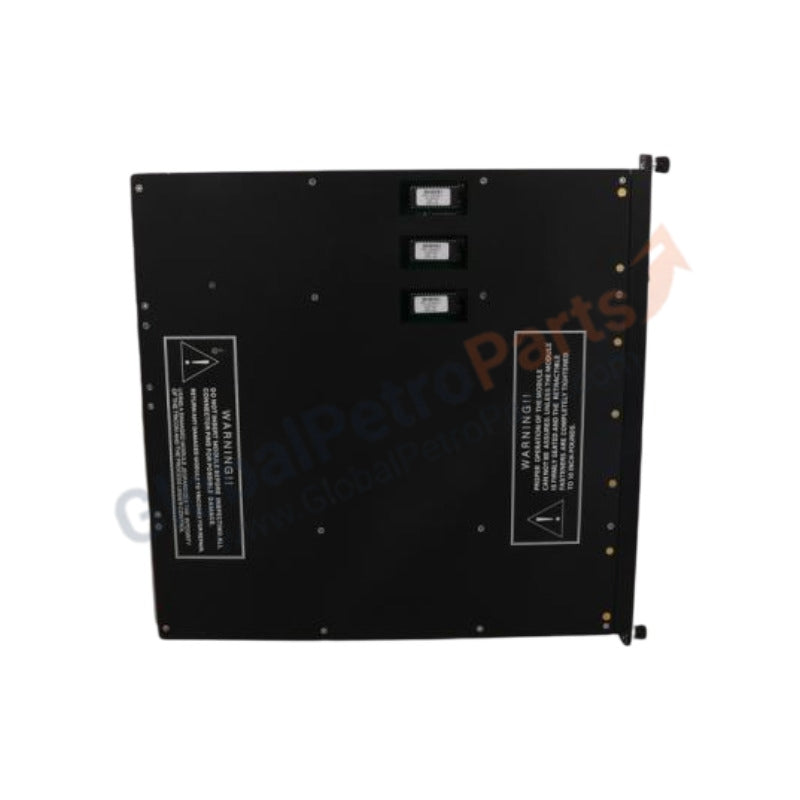

Digital Input Module Triconex 3501E
Manufacturer: Triconex
Product No.: 3501E
Product Type: Digital Input Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 170g
Shipping port: Xiamen
Warranty: 12 months
Product Description
The 3501E digital input module from Triconex captures discrete field signals with high accuracy and stability.
Moreover, the 3501E integrates directly into Tricon safety systems, ensuring deterministic communication and signal processing.
Additionally, the 3501E supports multiple input channels, which improves wiring efficiency and simplifies system expansion.
Therefore, engineers rely on the 3501E for precise monitoring in critical industrial automation environments.
Technical Specifications
| Category | Parameter | Specification |
|---|---|---|
| Model Information | Product Model | 3501E |
| Manufacturer | Triconex | |
| Module Type | Digital Input Module | |
| Series | Tricon Safety System | |
| Electrical Specifications | Input Voltage | 24VDC nominal |
| Input Type | Digital input (sourcing compatible) | |
| Number of Channels | 32 independent input channels | |
| Input Current | Approx. 5–8 mA per channel | |
| Voltage Range | 20–30 VDC operating range | |
| Input Response Time | <10 ms typical | |
| Isolation | Optical isolation between field and logic circuits | |
| Protection | Integrated surge and transient protection | |
| Power Characteristics | Backplane Power | Supplied via Tricon chassis |
| Power Consumption | Approx. 8–10 W | |
| Heat Dissipation | Designed for efficient airflow cooling | |
| Energy Storage | Internal capacitors for signal stability | |
| Physical Characteristics | Dimensions (H × W × D) | 30.5 cm × 2.5 cm × 25.4 cm |
| Weight | Approx. 1.1 kg | |
| Mounting Type | Rack-mounted module | |
| Housing | Industrial-grade enclosure | |
| Interface & Connectivity | Field Wiring | Terminal block interface |
| Backplane Interface | High-speed system communication bus | |
| Connector Type | Pluggable industrial connectors | |
| Indicators | LED indicators per channel for status | |
| Environmental Specifications | Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C | |
| Humidity | 5–95% non-condensing | |
| EMC Compliance | Meets industrial EMC standards | |
| Reliability & Safety | Diagnostics | Real-time signal monitoring and fault detection |
| Redundancy Support | Compatible with TMR systems | |
| MTBF | High reliability for continuous operation | |
| Safety Use | Suitable for safety-critical systems |
FAQ
Q1: Is the product new and original?
A1: Yes, the 3501E is brand new and original from the manufacturer.
Q2: Do you have stock available?
A2: Yes, we have the 3501E in stock and ready for immediate shipment.
Q3: How fast is shipping?
A3: We ship within 3 days to 2 weeks depending on order size and logistics arrangements.
Q4: Which logistics carriers do you use?
A4: We commonly use reliable carriers such as DHL and other global express services.
Q5: What is the return policy?
A5: We support returns within 30 days if any quality issues occur with the 3501E.
Q6: What types of signals can this module process?
A6: The 3501E processes digital signals from switches, sensors, and other discrete field devices.
Return policy
We aim to provide reliable products and a smooth purchasing experience. If there is a problem with your order, please contact us and we will assist according to our Refund Policy.
Shipping
We provide international shipping options to meet different delivery requirements. Please review details regarding methods and timelines in our Shipping Policy.
Warranty
We provide a 12-month warranty for all products, subject to normal use and proper installation.
