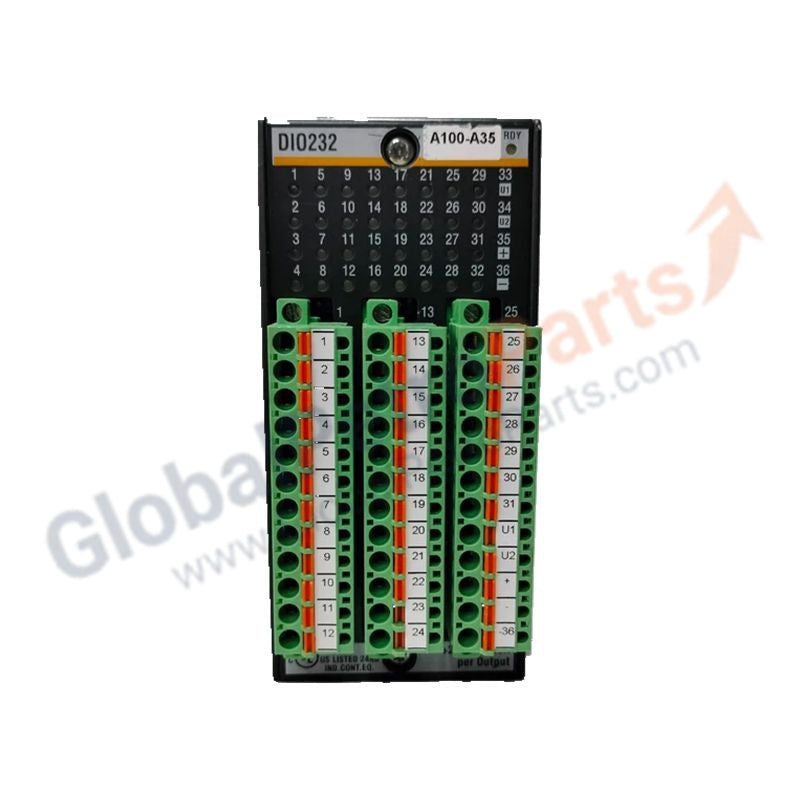

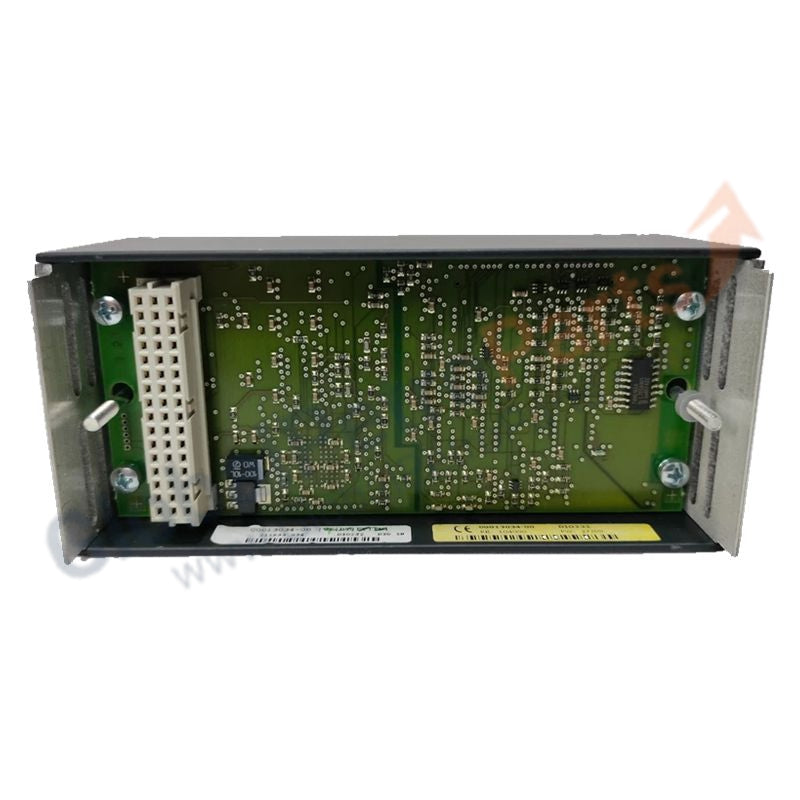

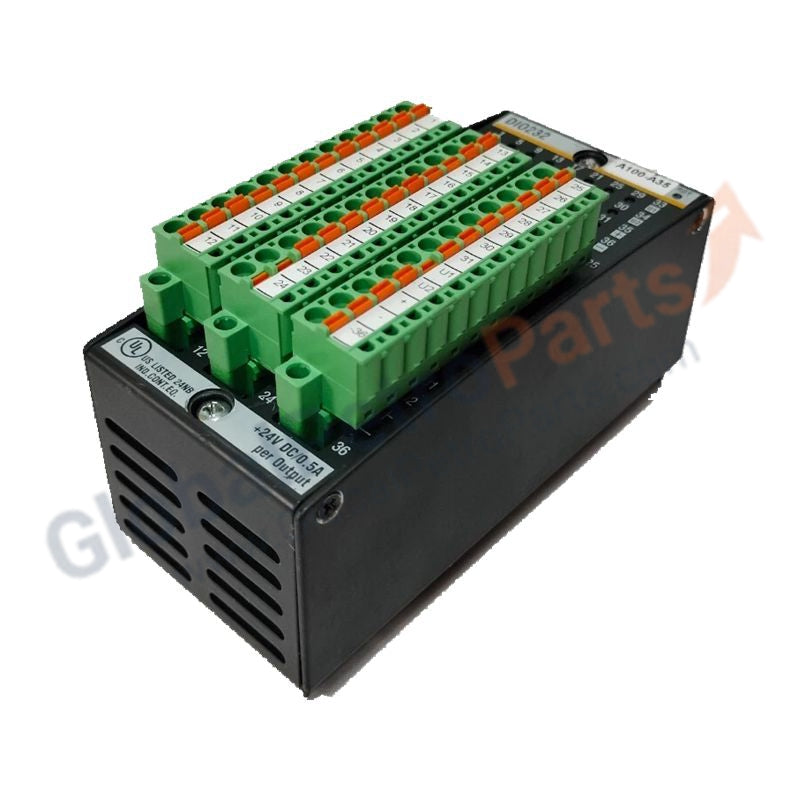

DIO232 Digital I/O Module Bachmann
  • DIO232 Digital I/O Module Bachmann
  • DIO232 Digital I/O Module Bachmann
  • DIO232 Digital I/O Module Bachmann
DIO232 Digital I/O Module Bachmann

Bachmann

DIO232 Digital I/O Module Bachmann

In stock

  • Manufacturer: Bachmann

  • Product No.: DIO232

  • Product Type: Digital I/O Module

  • Product Origin: Germany

  • Payment:T/T, Western Union

  • Weight: 350g

  • Shipping port: Xiamen

  • Warranty: 12 months

Special offer ends!
00 :
00 :
00

Product Description

The DIO232 (Part Number: 00012242-00) is a mid-density digital I/O module for the Bachmann M1 system, offering 32 channels (16 inputs / 16 outputs) in a single-slot footprint. It provides robust galvanic isolation and LED status indicators per channel, making it ideal for distributed substations, industrial automation, wind energy, and maritime applications.

Technical Specifications

Parameter Specification
Total Channels 32 (16 DI / 16 DO)
Operating Voltage 24 VDC (-15% / +20%)
Input Type Type 1 / Type 3 per IEC 61131
Output Current 0.5 A per channel, short-circuit protected
Isolation Voltage 500 V RMS (field to system electronics)
Status Indicators LED per channel
Update Rate Synchronous with M1 bus cycle
Thermal Range −30 °C to +60 °C
Mounting 1 slot on M1 backplanes (BS200 series)

Application

Used in wind turbine pitch control, marine engine monitoring, and factory automation. Often installed in distributed substations via FASTBUS modules (e.g., FS221/N) for local sensor and actuator control over long distances.

FAQ

Can the DIO232 be used in high-vibration environments?
Yes. It features a vibration-proof locking mechanism compliant with maritime and energy certifications.

Does it use Harting PushPull connectors?
No. DIO232 uses standard Bachmann front connectors (screw or push-in). PushPull is used only on FASTBUS communication modules like FM221/FM222.
