DIO248 Digital I/O Module Bachmann
  • DIO248 Digital I/O Module Bachmann
  • DIO248 Digital I/O Module Bachmann
  • DIO248 Digital I/O Module Bachmann
DIO248 Digital I/O Module Bachmann

Bachmann

DIO248 Digital I/O Module Bachmann

In stock

  • Manufacturer: Bachmann

  • Product No.: DIO248

  • Product Type: Digital I/O Module

  • Product Origin: Germany

  • Payment:T/T, Western Union

  • Weight: 700g

  • Shipping port: Xiamen

  • Warranty: 12 months

Special offer ends!
00 :
00 :
00

Product Description

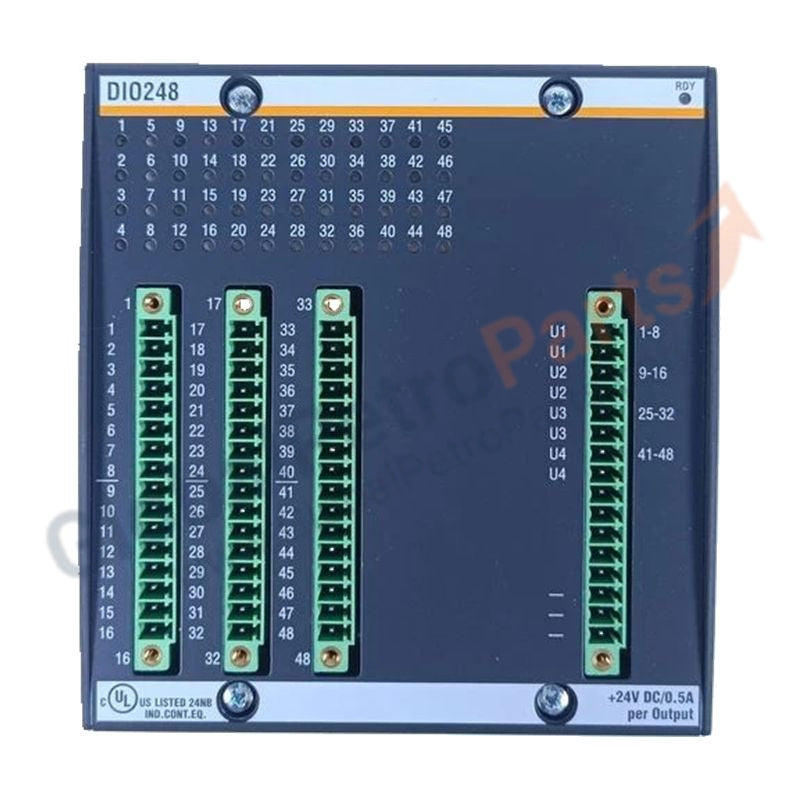

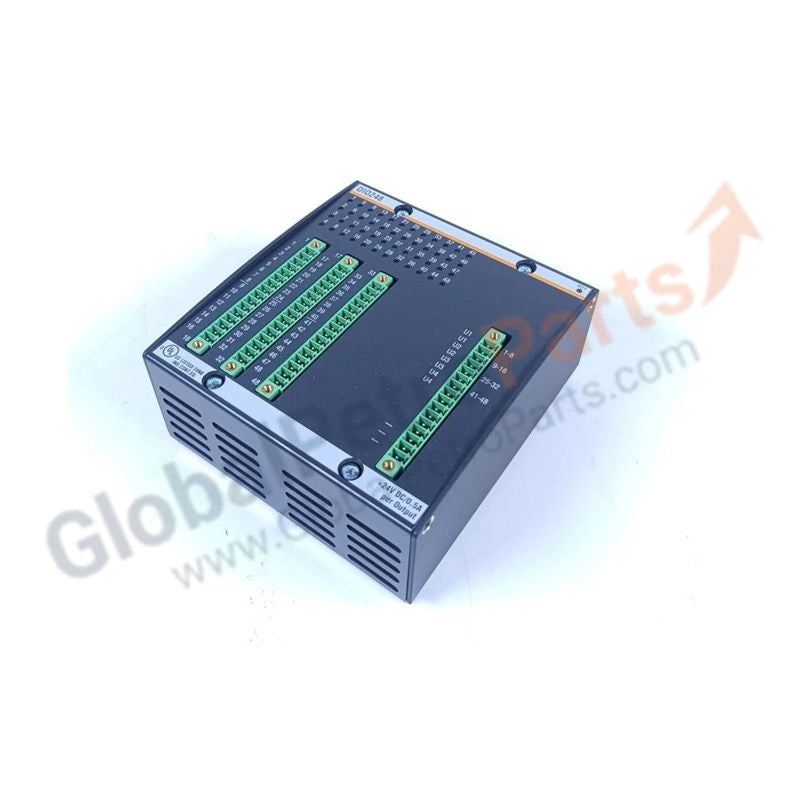

The DIO248 (Order Number: 00012245-00) is a high-density digital I/O module for the Bachmann M1 system, providing 32 inputs and 16 outputs in a single-slot footprint. Designed for space-constrained, high-signal-count applications, it ensures reliable industrial performance with full galvanic isolation and integrated status diagnostics.

Technical Specifications

Parameter Specification
Total Channels 48 (32 DI / 16 DO)
Input Voltage 24 VDC (Type 1 logic, IEC 61131)
Output Current 0.5 A per channel (short-circuit and overload protected)
Input Filtering Hardware/software programmable (default 1 ms)
Galvanic Isolation 500 V RMS (field to system bus)
Connection High-density front connectors (push-in or ribbon cable)
Diagnostics LED per channel; system-level undervoltage and over-temperature
Operating Temperature −30 °C to +60 °C

Application

Used in large-scale manufacturing, automated warehouse sorting, and wind turbine auxiliary systems, consolidating nearly 50 signals into a single backplane slot to reduce footprint and wiring complexity.

FAQ

Can the inputs be used for high-speed counting?
No. For fast encoder signals or high-frequency counting (>100 Hz), use a dedicated counter module like CNT204/R.

Does the module require separate field power?
Yes. While internal logic is powered by the backplane, 24 V DC field power must be supplied via the front terminals for proper operation of inputs and outputs.
