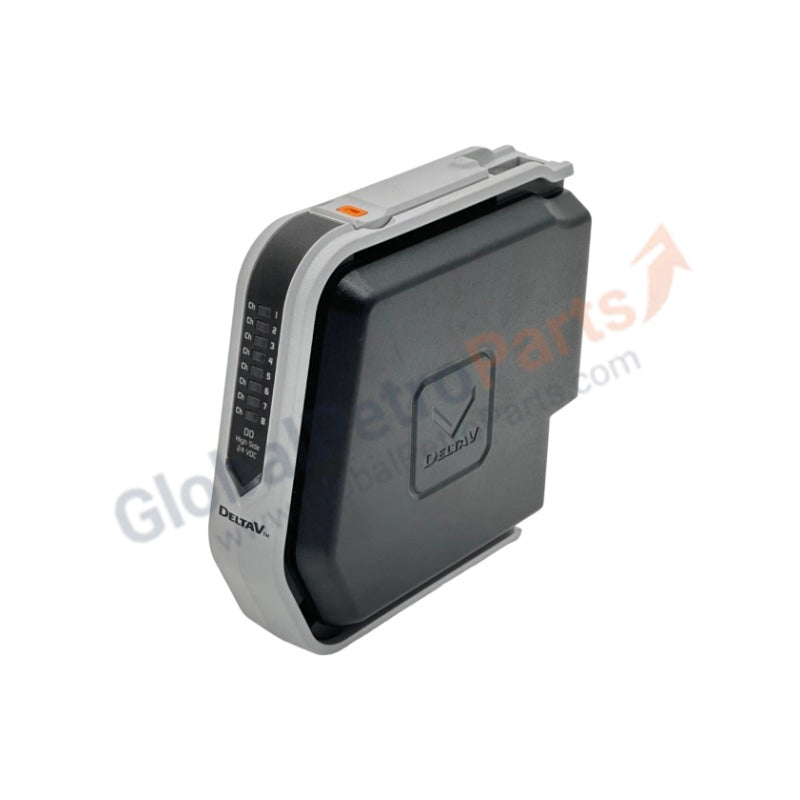

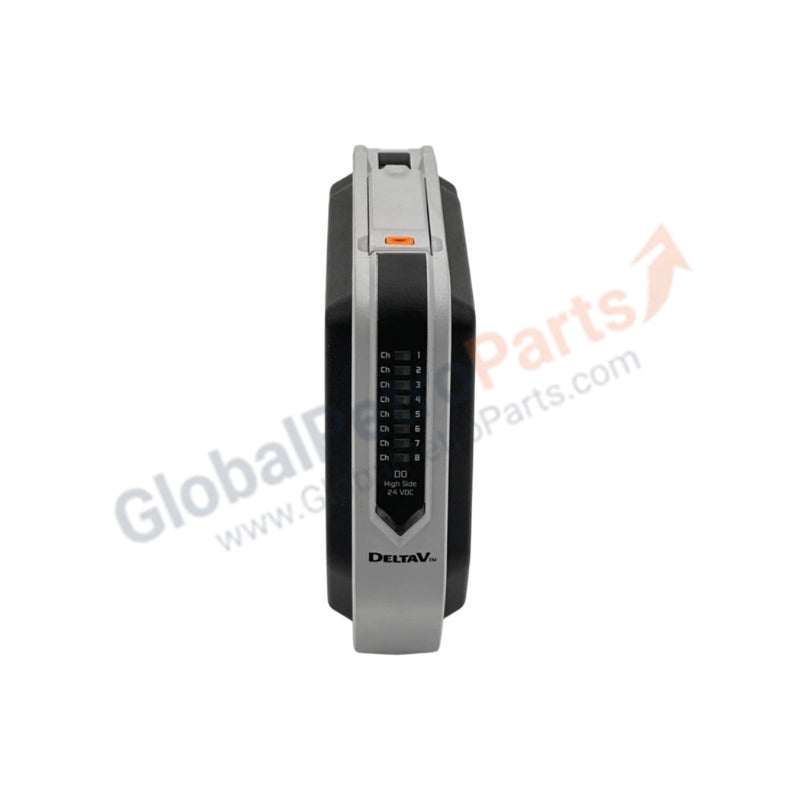

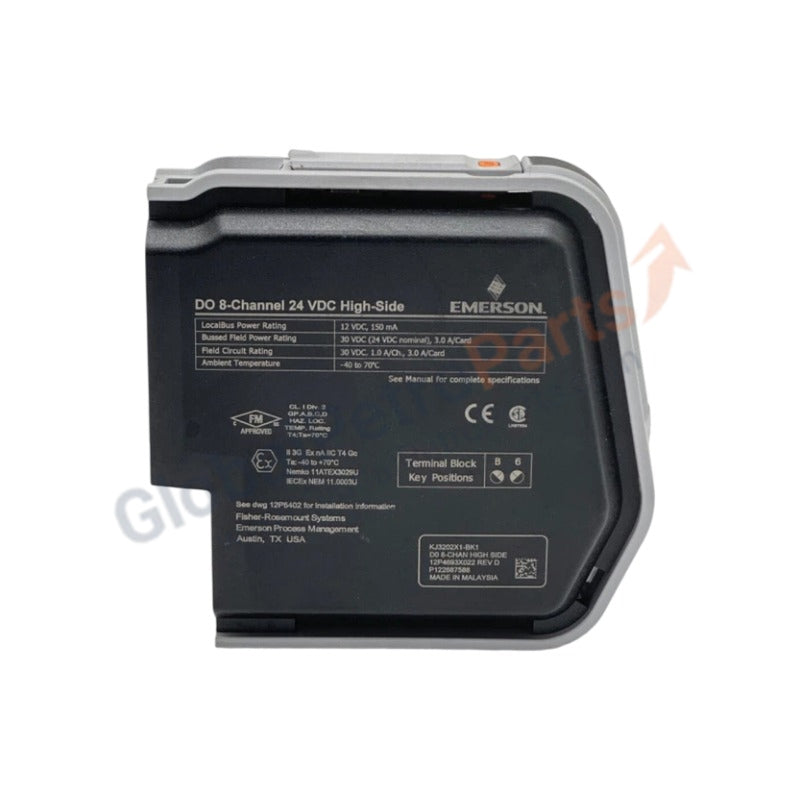

Discrete Output Card KJ3202X1-BK1 Emerson DeltaV
  • Discrete Output Card KJ3202X1-BK1 Emerson DeltaV
  • Discrete Output Card KJ3202X1-BK1 Emerson DeltaV
  • Discrete Output Card KJ3202X1-BK1 Emerson DeltaV
Discrete Output Card KJ3202X1-BK1 Emerson DeltaV

Emerson

Discrete Output Card KJ3202X1-BK1 Emerson DeltaV

10 left

  • Manufacturer: Emerson

  • Product No.: KJ3202X1-BK1

  • Product Type: Discrete Output Card

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 200g

  • Shipping port: Xiamen

  • Warranty: 12 months

Special offer ends!
00 :
00 :
00

Product Overview

The Emerson KJ3202X1-BK1 module provides reliable discrete output control for DeltaV distributed control systems.
It delivers eight high-side 24VDC output channels and ensures stable switching performance for industrial automation tasks.

Moreover, the KJ3202X1-BK1 module supports hazardous area applications and meets strict ATEX certification requirements.
Engineers rely on this module because it offers consistent output control and improves system safety significantly.

Technical Specifications

Parameter Specification
Model KJ3202X1-BK1
Manufacturer Emerson
Series DeltaV S-Series
Module Type Discrete Output Module
Output Channels 8 high-side outputs
Output Voltage 24 VDC
Output Type High-side switching
Output Current Up to 0.5 A per channel
Field Power External 24 VDC supply
LocalBus Power 12 VDC via DeltaV backplane
Isolation Channel-to-channel isolation
Response Time Fast switching response
Protection Features Short circuit and overload protection
Hazardous Certification ATEX II 3G
Certification Standard EEx nA IIC T4
IP Rating IP20
Operating Temperature 0°C to 60°C
Storage Temperature -40°C to +85°C
Humidity 5% to 95% non-condensing
Shock Resistance 10 g half-sine wave
Vibration Resistance 1 mm (5–16 Hz), 0.5 g (16–150 Hz)
Air Contaminants ISA-S71.04 Class G3
Mounting DeltaV I/O carrier
Interface DeltaV LocalBus communication
Dimensions Compact card format
Cooling Passive airflow cooling



FAQ

Q1: Is the Emerson KJ3202X1-BK1 module new and original?
Yes, the KJ3202X1-BK1 module is brand new and original from Emerson.

Q2: Do you have stock available?
Yes, we keep the Emerson KJ3202X1-BK1 module in stock for fast delivery.

Q3: How long does shipping take?
We ship within 3 days to 2 weeks depending on order size and logistics arrangements.

Q4: Which logistics services do you use?
We commonly use DHL and other trusted carriers for secure and fast global shipping services.

Q5: What is your return policy?
We support returns within 30 days if any quality issues occur with the KJ3202X1-BK1 module.
