Discrete Output Module Schneider Electric BMXDDO3202K
  • Discrete Output Module Schneider Electric BMXDDO3202K
  • Discrete Output Module Schneider Electric BMXDDO3202K
  • Discrete Output Module Schneider Electric BMXDDO3202K
Discrete Output Module Schneider Electric BMXDDO3202K

Schneider

Discrete Output Module Schneider Electric BMXDDO3202K

In stock

  • Manufacturer: Schneider

  • Product No.: BMXDDO3202K

  • Product Type: Discrete Output Modules

  • Product Origin: France

  • Payment:T/T, Western Union

  • Weight: 110g

  • Shipping port: Xiamen

  • Warranty: 12 months

Special offer ends!
00 :
00 :
00

Product Description

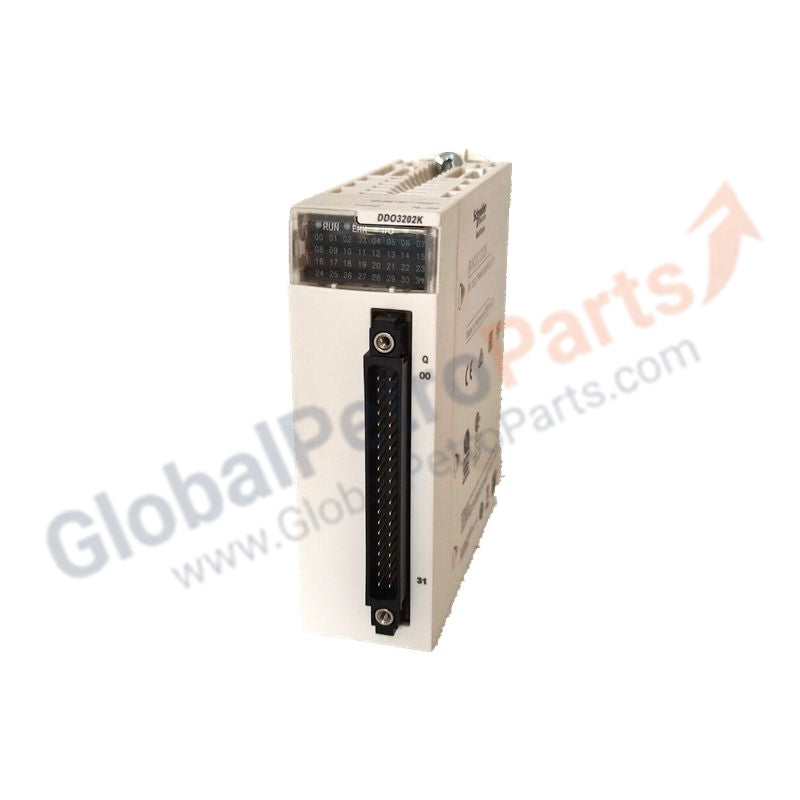

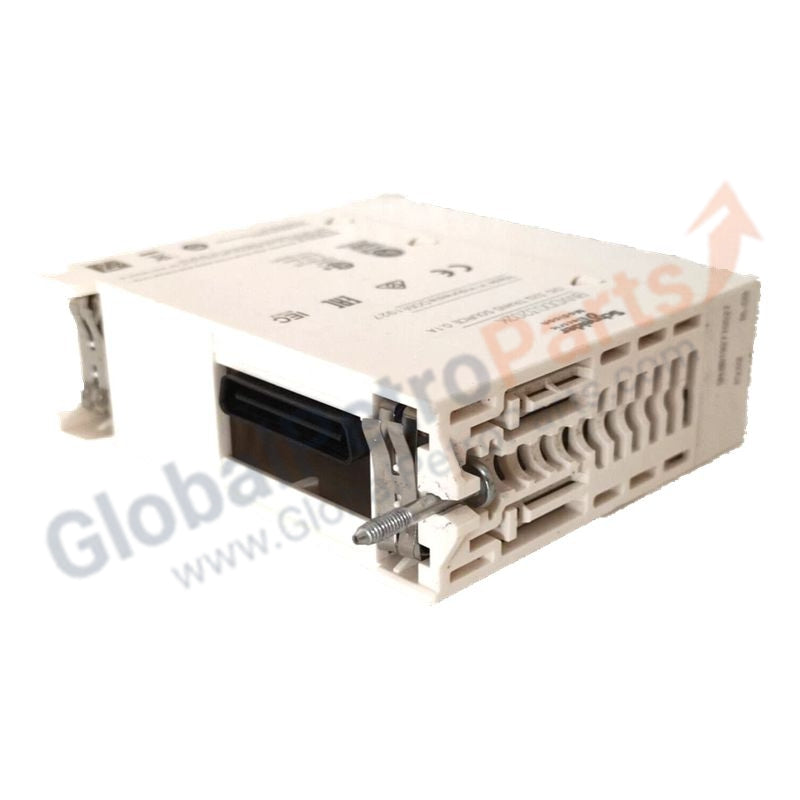

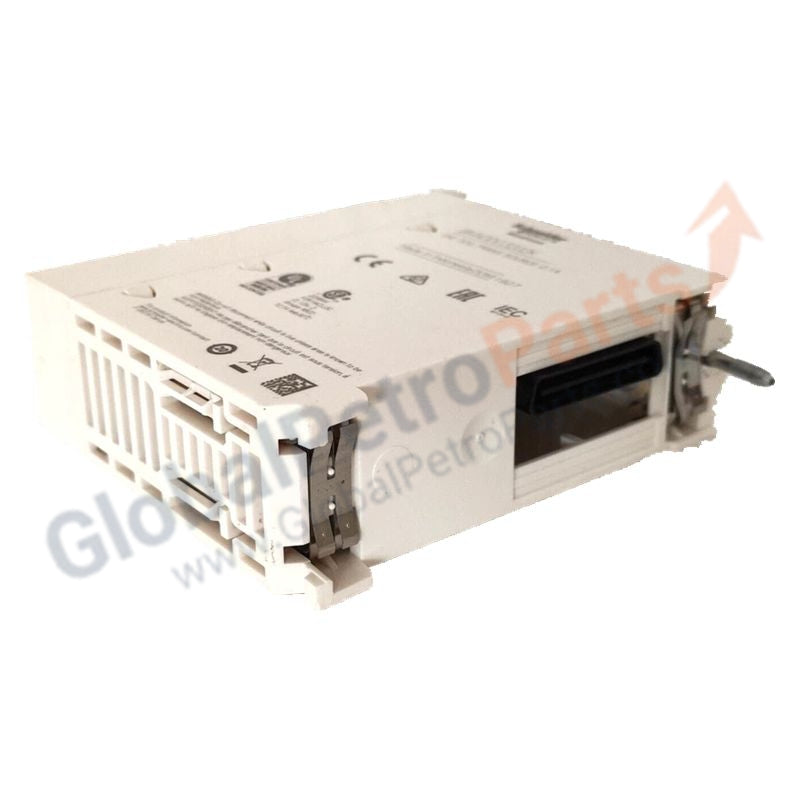

The BMXDDO3202K is a 32-channel solid-state discrete output module for the Schneider Electric Modicon X80 platform, compatible with M340 and M580 controllers. It uses source (positive logic) transistor outputs to deliver fast, reliable switching for solenoids, relays, and indicators. Integrated electronic protection and high switching performance make it ideal for compact, high-speed automation systems.

Technical Specifications

Item Specification
Output Channels 32 solid-state outputs
Output Logic Source (positive)
Rated Voltage 24 V DC
Voltage Range 19–30 V DC
Output Current 0.1 A per channel
Peak Current 0.125 A per channel
Total Module Current 3.2 A max
Response Time 1.2 ms (typical)
Max Switching Frequency 0.5 / LI² Hz
On-State Voltage Drop < 1.5 V DC
Leakage Current < 0.1 mA (OFF state)
Insulation Resistance > 10 MΩ @ 500 V DC
Bus Current Consumption 140 mA @ 3.3 V DC
Connector Type 40-way FCN
Weight 0.110 kg

Protection & Diagnostics

  • Electronic current limiting per group

  • Thermal and short-circuit protection

  • Reverse polarity protection

  • Status LEDs: RUN, ERR, I/O

  • 32 channel LEDs for output status

Typical Applications

  • High-speed packaging and sorting machines

  • Relay banks in power and control panels

  • Robotic end-effectors and pneumatic manifolds

  • Assembly lines with frequent switching cycles

Notes

  • Uses 40-pin FCN connector

  • Commonly paired with Telefast cordsets (BMXXCA series) or BMXFTW terminal bases

  • Source logic: module supplies +24 V; load common connects to 0 V
Return policy

​We aim to provide reliable products and a smooth purchasing experience. If there is a problem with your order, please contact us and we will assist according to our Refund Policy.
Shipping

We provide international shipping options to meet different delivery requirements. Please review details regarding methods and timelines in our Shipping Policy.
Warranty

We provide a 12-month warranty for all products, subject to normal use and proper installation.
