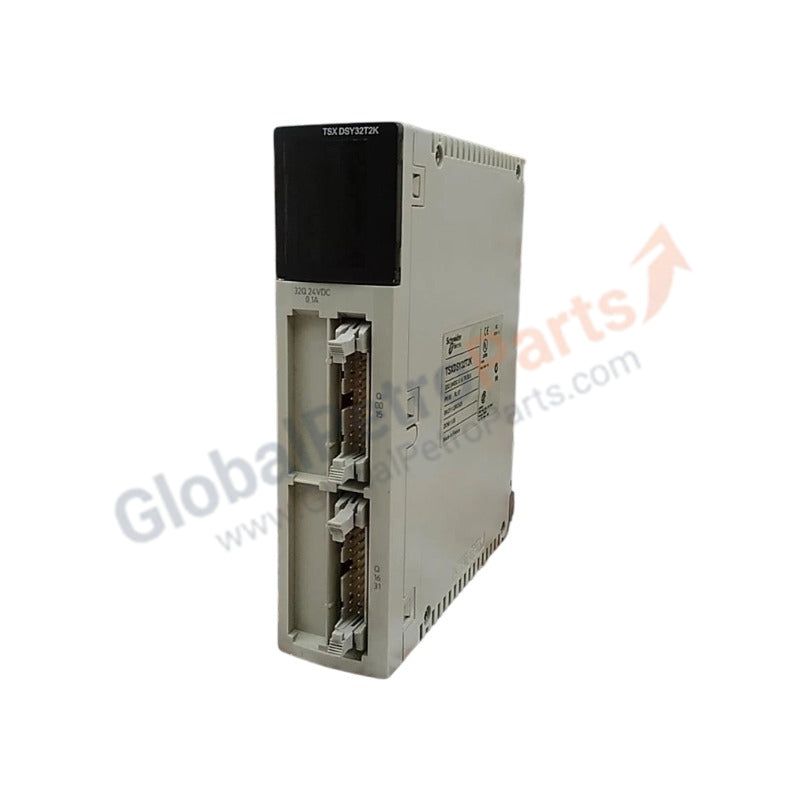

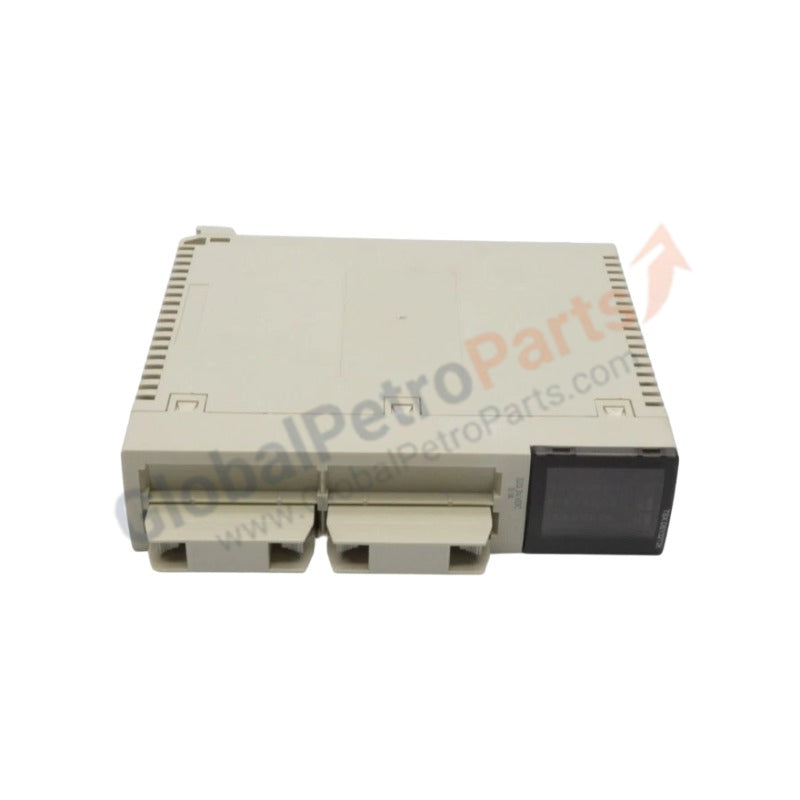

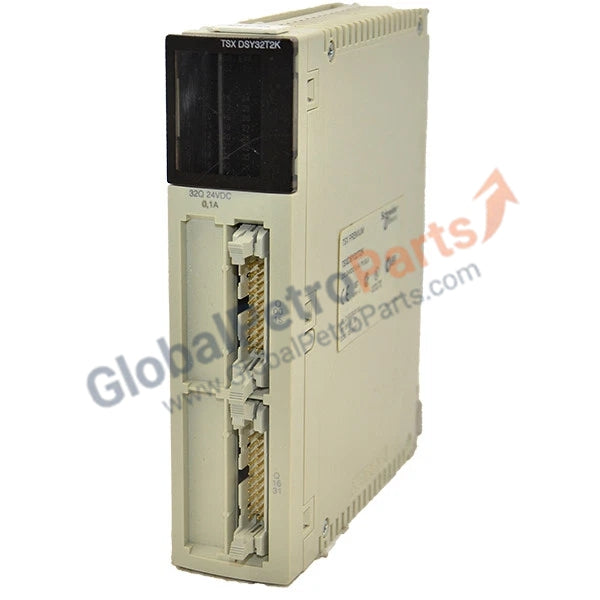

Discrete Output Module Schneider Modicon Quantum TSXDSY32T2

The Schneider Electric TSXDSY32T2 acts as a high-density switching interface for the Modicon Premium automation platform. This module features 32 solid-state protected outputs, providing reliable 24V DC positive logic control for actuators, solenoids, and indicators. Engineered for high-speed switching and long-term durability, it utilizes semiconductor technology to eliminate the wear associated with mechanical relays. We supply this unit as 100% Brand New and original factory sealed, ensuring it meets the stringent performance standards of your Modicon Premium system.

Technical Specifications

The TSXDSY32T2 integrates robust electrical safeguards to manage complex industrial loads efficiently.

Engineering Advantages

• Comprehensive Circuit Protection: The module incorporates Transil diodes to clamp overvoltage spikes and reverse-mounted diodes for polarity protection. This multi-layered defense prevents damage to the internal circuitry during unpredictable field-side electrical surges.

• Intelligent Fault Management: The TSXDSY32T2 features automatic trip functionality for both short-circuits and thermal overloads. This self-protecting design ensures the module survives wiring errors or faulty loads without requiring manual fuse replacements inside the rack.

• High-Density Control: By packing 32 outputs into a standard Premium format module, it maximizes rack space efficiency. This allows for extensive I/O scaling in compact control cabinets, reducing the overall footprint of the automation system.

• Parallel Output Capability: Engineers can parallel up to 3 outputs to manage higher current requirements for specific loads, providing flexibility in hardware configuration without switching to higher-rated, bulkier modules.

• Fast Response Switching: With a response time of just 1.2 ms, this module supports high-speed industrial processes where timing precision directly impacts production throughput and machine safety.

FAQs

• Q: What type of wiring connection does the TSXDSY32T2 require?

• A: The module uses two HE-10 connectors. You should use standard Schneider Electric pre-wired cables or Telefast sub-bases to simplify the transition from the high-density HE-10 ports to field-side screw terminals.

• Q: Can this module handle tungsten filament loads?

• A: Yes. The TSXDSY32T2 supports tungsten loads up to 1.2 W. The solid-state design effectively manages the high inrush currents typically associated with incandescent signaling lamps.

• Q: Is this module suitable for maritime or hazardous locations?

• A: Absolutely. The unit carries multiple maritime certifications (ABS, BV, DNV, LR, RINA) and complies with CSA Class I Division 2 (Groups A, B, C, D) for use in hazardous environments where explosive gases may be present.

• Q: How does the module handle a short circuit on a single channel?

• A: Upon detecting a short circuit or overload, the affected channel automatically trips to prevent damage. Once you resolve the external fault, the module resumes normal operation according to the logic state provided by the processor.
