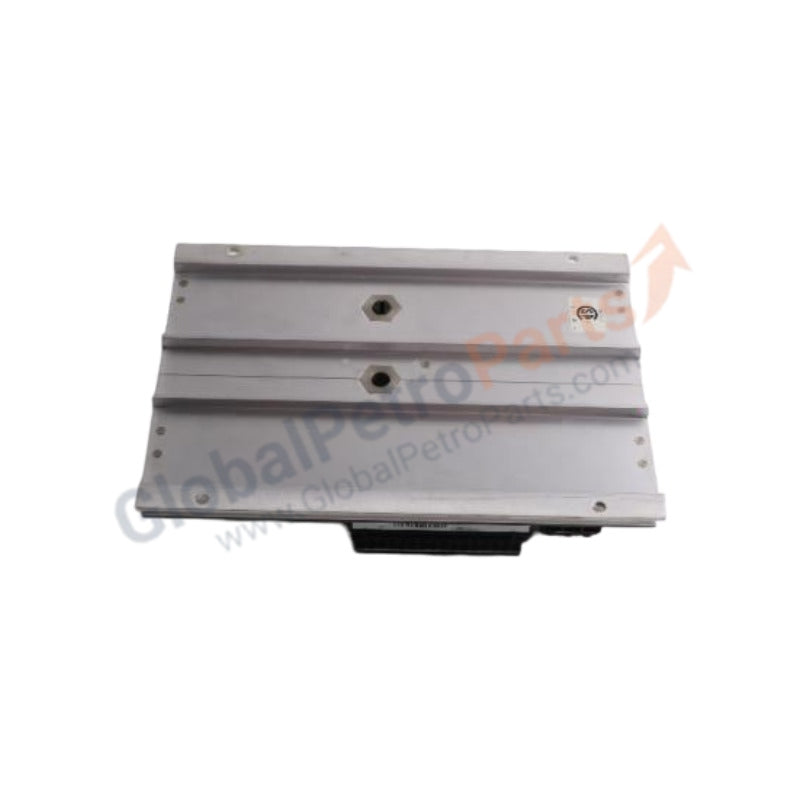

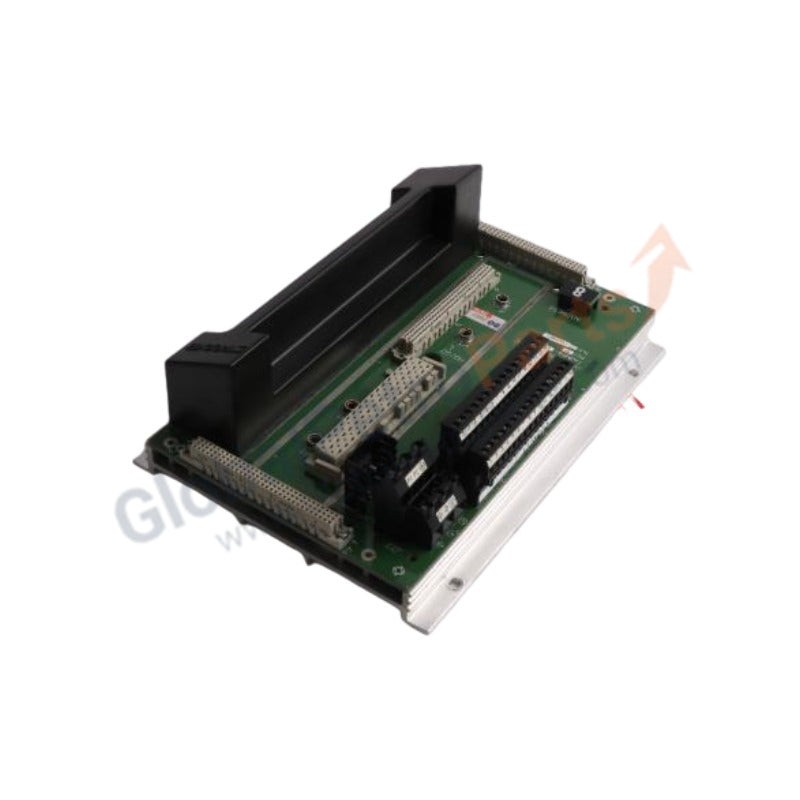

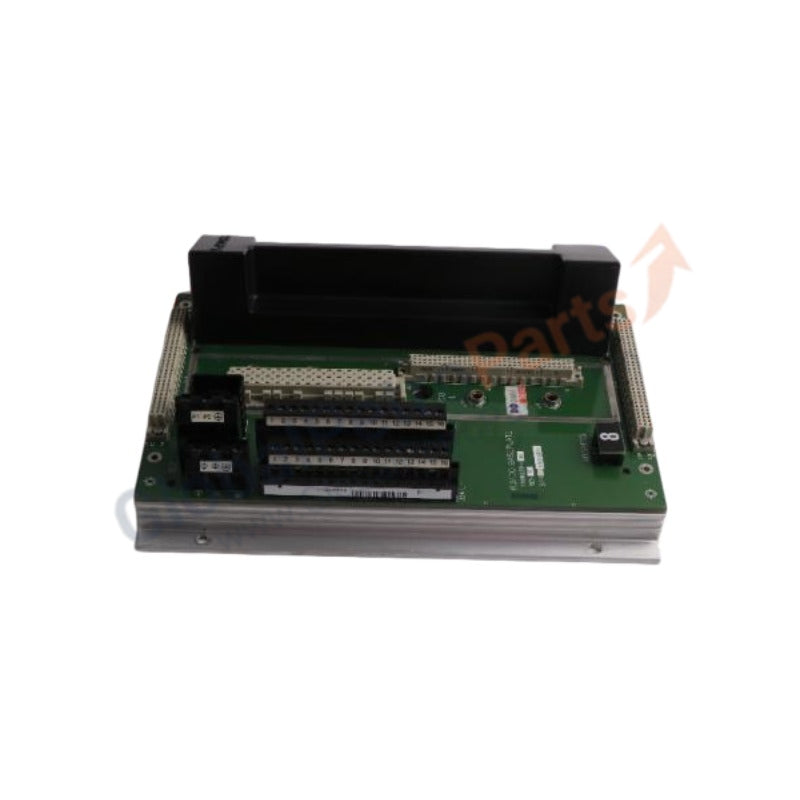

DO2401 7400209-030 Triconex Digital Output Baseplate

10 left

Manufacturer: Triconex
Product No.: DO2401 7400209-030
Product Type: Digital Output Baseplate
Product Origin: USA
Payment:T/T, Western Union
Weight: 170g
Shipping port: Xiamen
Warranty: 12 months

Special offer ends!

Product Description

The DO2401 7400209-030 digital output baseplate provides essential structural support for Triconex safety and control systems.
Moreover, it enables secure connection between digital output modules and system backplane architecture.
In addition, engineers rely on DO2401 7400209-030 to maintain stable signal distribution in industrial automation environments.
Therefore, the baseplate ensures consistent system performance in mission-critical applications.

Technical Specifications

Parameter	Specification
Model	DO2401 7400209-030
Product Type	Digital Output Baseplate
Manufacturer	Triconex
System Compatibility	Triconex TMR Safety Systems
Function	Digital output module mounting and signal routing
Slot Capacity	Multi-module configuration (system dependent)
Communication Type	Backplane data communication
Interface Type	Edge connector backplane interface
Supported Modules	Digital output modules
Power Distribution	Integrated backplane power routing
Input Voltage	24 V DC system supply (typical)
Power Consumption	Depends on installed module configuration
Current Capacity	System-dependent load distribution
Redundancy Support	TMR system compatible
Hot Swap Support	Supported in configured system environments
Dimensions	Approx. 480 × 300 × 120 mm
Weight	Approx. 4.0–6.5 kg
Mounting Method	Rack-mounted chassis installation
Operating Temperature	0°C to +60°C
Storage Temperature	-40°C to +85°C
Relative Humidity	5%–95% non-condensing
Vibration Resistance	Industrial-grade vibration tolerance
Shock Resistance	Suitable for control cabinet environments
EMI Protection	Shielded industrial design
Energy Storage	No internal energy storage components

FAQ

Q1: What is the function of the DO2401 7400209-030 baseplate?
The DO2401 7400209-030 supports mounting and connection of digital output modules in Triconex systems.

Q2: Is the DO2401 7400209-030 compatible with TMR systems?
Yes, the DO2401 7400209-030 is fully compatible with Triconex TMR architectures.

Q3: Does the DO2401 7400209-030 support system expansion?
Yes, the DO2401 7400209-030 supports modular expansion depending on system configuration.

Q4: What industries use the DO2401 7400209-030?
The DO2401 7400209-030 is widely used in oil, gas, petrochemical, and power industries.

Q5: How fast can you ship the DO2401 7400209-030?
We usually ship within three days to two weeks depending on order size and logistics arrangements.

We aim to provide reliable products and a smooth purchasing experience. If there is a problem with your order, please contact us and we will assist according to our Refund Policy.

We provide international shipping options to meet different delivery requirements. Please review details regarding methods and timelines in our Shipping Policy.

We provide a 12-month warranty for all products, subject to normal use and proper installation.
