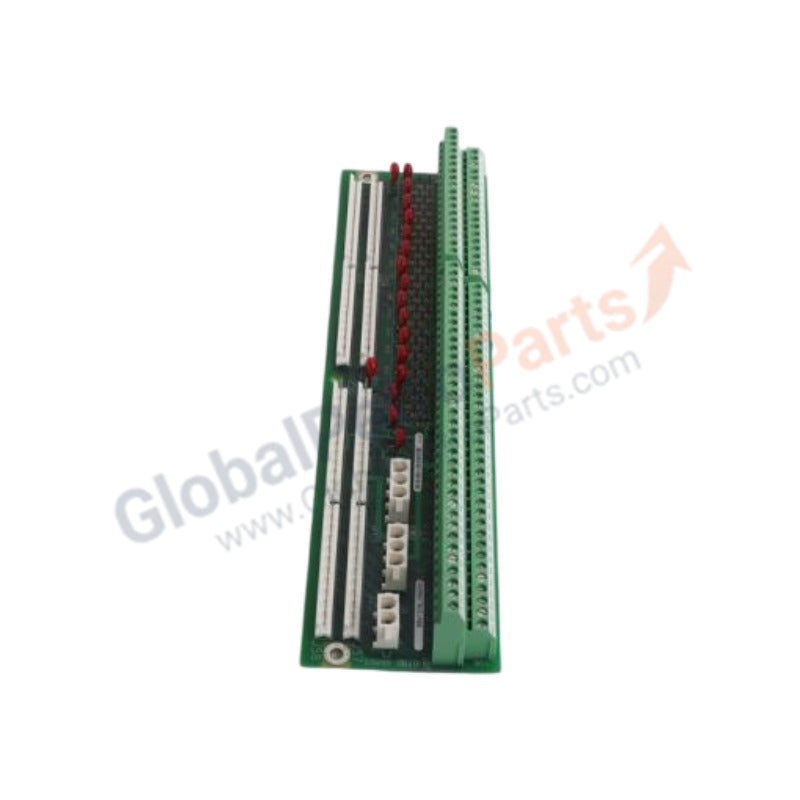

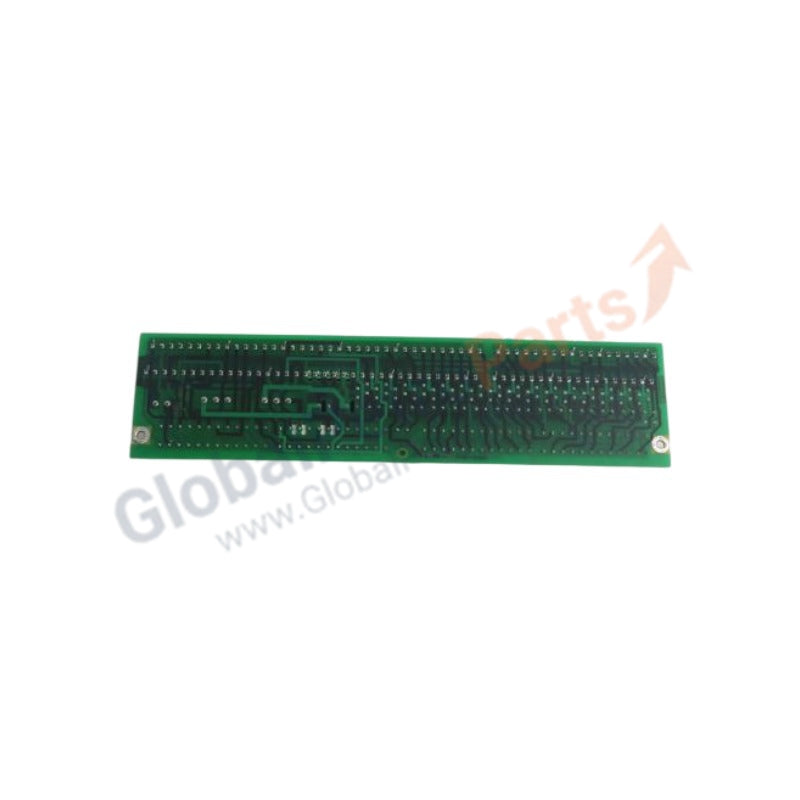

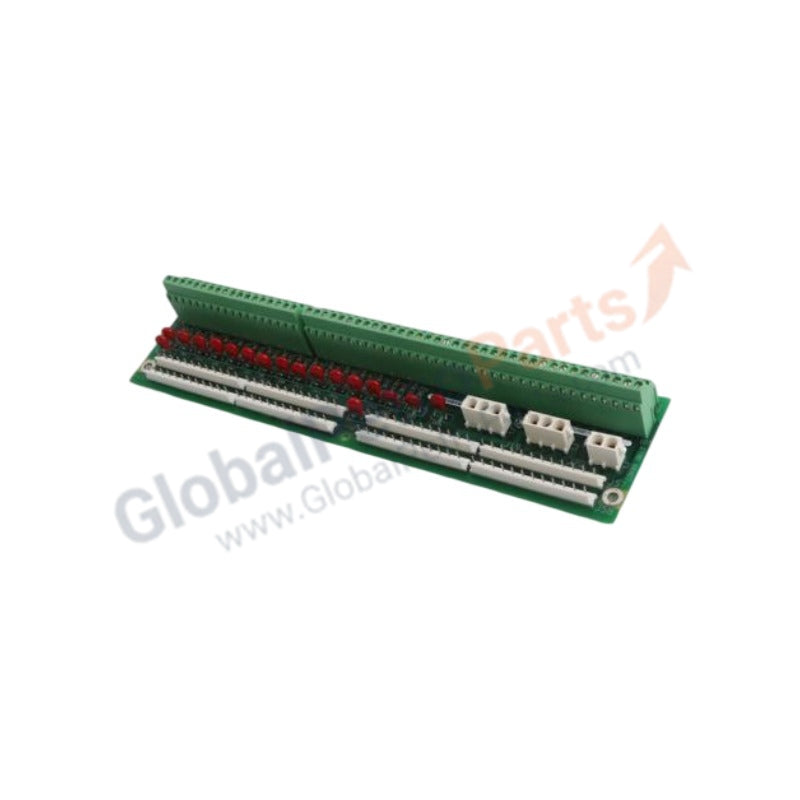

DS200DTBDG1A GE Mark V Digital Terminal Board

Product Overview

The GE DS200DTBDG1A (DS200DTBDG1A) serves as the primary digital interface for the Mark V Speedtronic turbine control system. This board facilitates the connection of high-density contact inputs and solenoid outputs between the field equipment and the control cores. We supply this module as 100% Brand New original equipment. It handles critical discrete signals, including limit switch feedback, pressure switch status, and valve solenoid actuation. By acting as the physical termination point, the DS200DTBDG1A ensures stable signal transition and electrical protection for the , , and  control processors in gas and steam turbine applications.

Technical Specifications

The DS200DTBDG1A utilizes a rugged hardware layout to manage high-density wiring and signal conditioning.

Engineering Advantages

The DS200DTBDG1A solves complex field integration challenges through superior board engineering:

• Robust Signal Conditioning: The board utilizes optical isolators to separate field-side electrical noise from the sensitive digital logic. This prevents electromagnetic interference (EMI) from triggering false digital states or damaging the control core microprocessors.

• Localized Circuit Protection: Every output channel features an individual replaceable fuse. This design ensures that a short circuit in a field solenoid only affects a single channel, preventing a localized wiring fault from de-energizing the entire control core.

• High-Density Connectivity: The dual-row terminal block design allows for the termination of up to 60 distinct wires in a compact footprint. This saves significant cabinet space while maintaining clear access for field wiring and label identification.

• Integrated Diagnostic Points: GE engineers included dedicated test points and LED indicators on the DS200DTBDG1A. Technicians can instantly verify the presence of excitation voltage and the state of the relay drivers without disconnecting any field cables.

FAQs

• Can the DS200DTBDG1A replace a DS200DTBDG1B board?

  Yes, the G1A revision is functionally compatible with the G1B in most Mark V environments. However, you must verify the jumper settings (specifically JP jumpers) on the new board to match your original configuration for voltage scaling and contact wetting.

• Does this board support both "Dry" and "Wet" contact inputs?

  The DS200DTBDG1A supports both, depending on the system's 125 VDC or 24 VDC excitation supply. The board typically receives its wetting voltage from the DTBD or a separate power distribution module within the Mark V cabinet.

• What is the recommended maintenance for the terminal blocks?

  Periodically check all screw terminals for tightness, especially in high-vibration environments near the turbine train. We also recommend a visual inspection of the onboard fuses if the control system reports a "Solenoid Open" alarm.

• How does the board interface with the control core?

  The DS200DTBDG1A connects to the TCCB or TCQC boards via high-density ribbon cables. Ensure these cables are fully seated and the locking tabs are engaged to prevent intermittent I/O communication errors.
