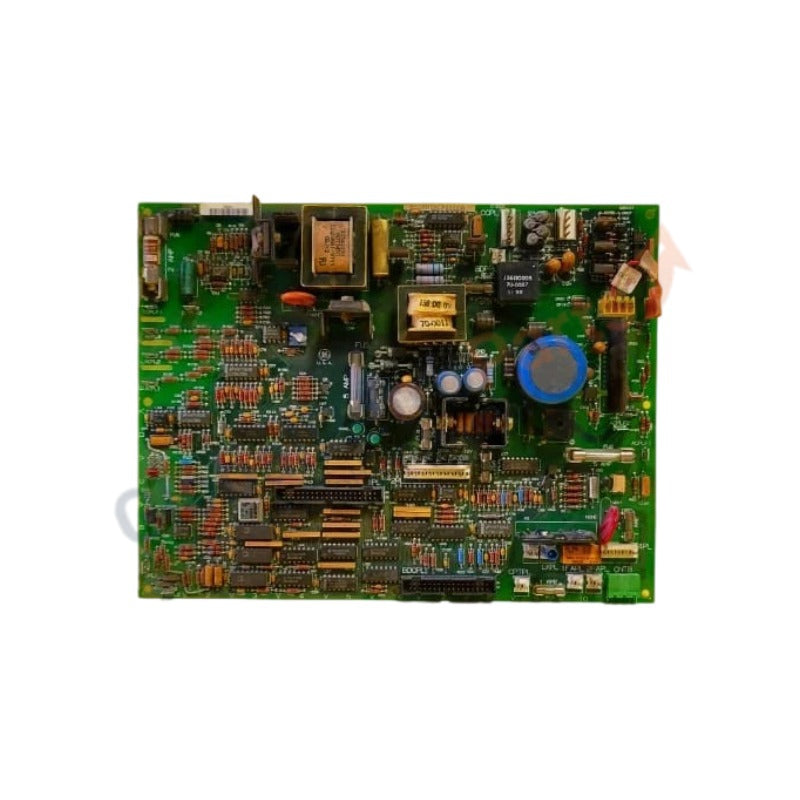

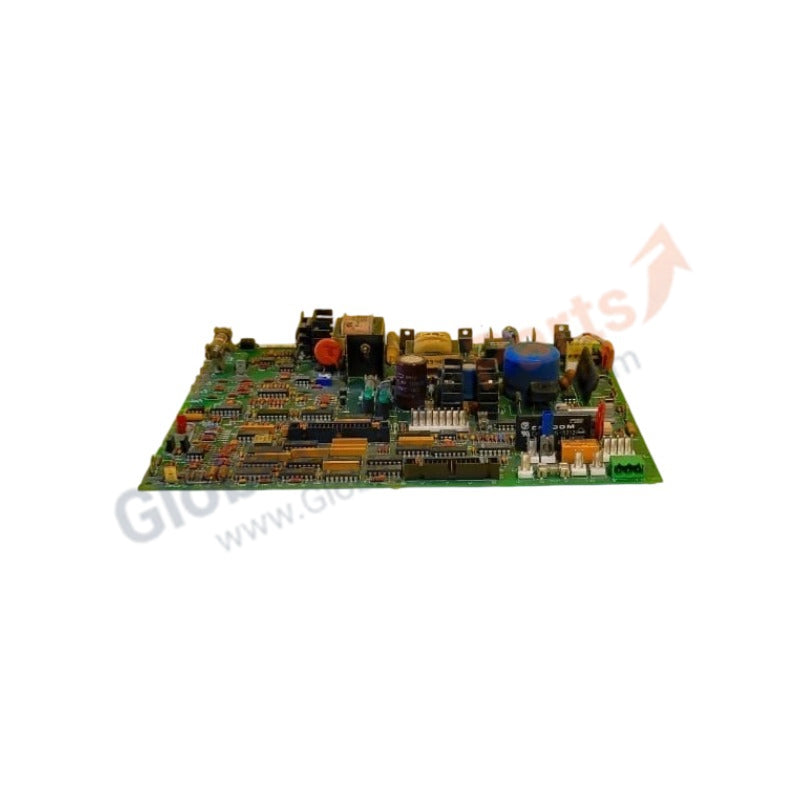

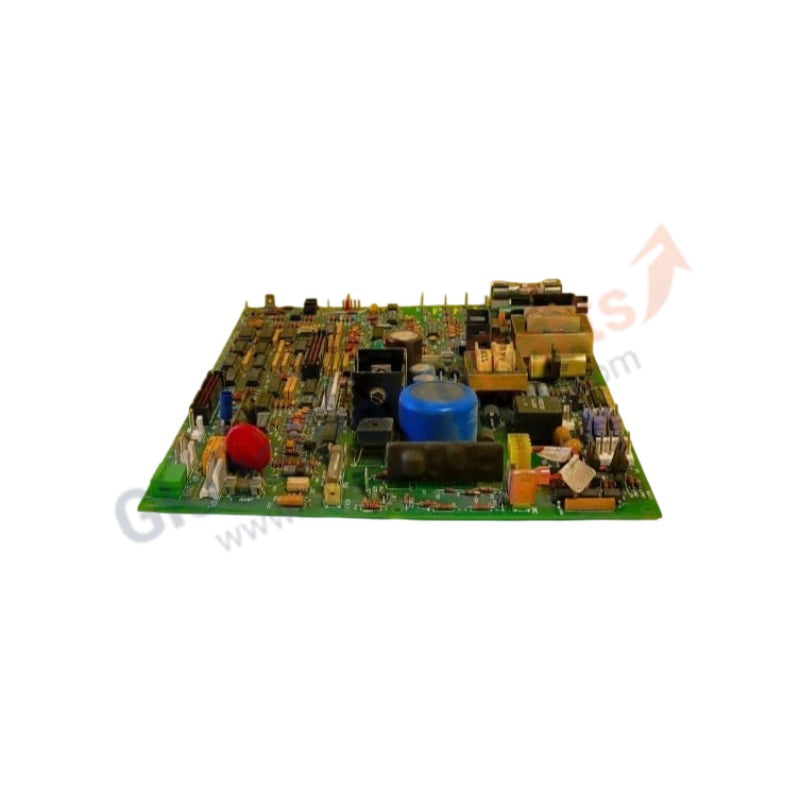

DS200IMCPG1CCA GE Mark V Integrated Main Control Processor Board

Product Overview

The GE DS200IMCPG1CCA (DS200IMCPG1C) acts as the primary computational engine for the GE Mark V Speedtronic turbine control system. This Integrated Main Control Processor (IMCP) board executes the master control algorithms required for heavy-duty gas and steam turbine operations. It coordinates all I/O data processing, executes protective logic, and manages communication between the control processors and the operator interface. We offer this unit as 100% Brand New and Original, ensuring your critical power generation assets utilize genuine components for maximum deterministic performance.

Technical Specifications

Engineering Advantages

The DS200IMCPG1CCA resolves specific technical challenges in complex industrial automation:

• Deterministic Control Execution: The board utilizes a high-performance 32-bit architecture to ensure control loop cycles remain consistent. This eliminates jitter in fuel valve positioning and excitation control, which prevents mechanical stress on the turbine.

• Hardware Revision "CCA" Stability: This revision incorporates upgraded oscillators and high-tolerance capacitors. These components resist the long-term effects of thermal aging and electrical noise better than previous "A" or "CC" iterations, extending the board's mean time between failures (MTBF).

• Seamless Hot-Swap Interface: The design supports rapid integration into the Mark V rack. By maintaining exact physical and electrical footprints of the G1 series, it allows plant engineers to restore system functionality without modifying cabinet hardware or rewiring terminal blocks.

• Integrated Error Detection: The IMCP features self-diagnostic routines that constantly monitor internal memory integrity and bus communication. It identifies hardware faults instantly, triggering protective trips before incorrect control signals can reach the field devices.

Installation & Commissioning Protocols

To maintain the 100% Brand New warranty and ensure system safety, engineers must adhere to these standards:

1. EPROM Migration: The DS200IMCPG1CCA requires the installation of site-specific firmware. Carefully transfer the socketed EPROM chips from your decommissioned board to the new unit. Verify the notch orientation on each chip to prevent electrical shorts.

2. ESD Protection: The CMOS-based processors on this board remain highly vulnerable to static. Always utilize a grounded wrist strap and anti-static mat during the chip transfer and installation process.

3. Backplane Alignment: Inspect the high-density ribbon connectors for any debris or bent pins. Secure the board firmly into the rack to ensure continuous grounding through the mounting standoffs.

FAQs

• Is the DS200IMCPG1CCA compatible with older Mark V systems?

  Yes. The "CCA" version serves as the current functional replacement for all previous DS200IMCPG1A, B, and C boards. It maintains full electrical compatibility while offering improved hardware reliability.

• Does this board ship with pre-loaded turbine software?

  The board hardware is brand new, but it does not contain your specific turbine parameters. You must move your original socketed EPROM chips to the new board to retain your site configuration.

• What are the primary indicators of a failing IMCP board?

  Common symptoms include "Control Processor Not Communicating" alarms, intermittent parity errors in the diagnostic logs, or a failure of the board to complete its boot sequence as indicated by the status LEDs.
