DS200TCCAG1BAA | GE Mark V Microprocessor Control Board

GE DS200TCCAG1BAA Mark V Drive Control Engine and I/O Analog Board

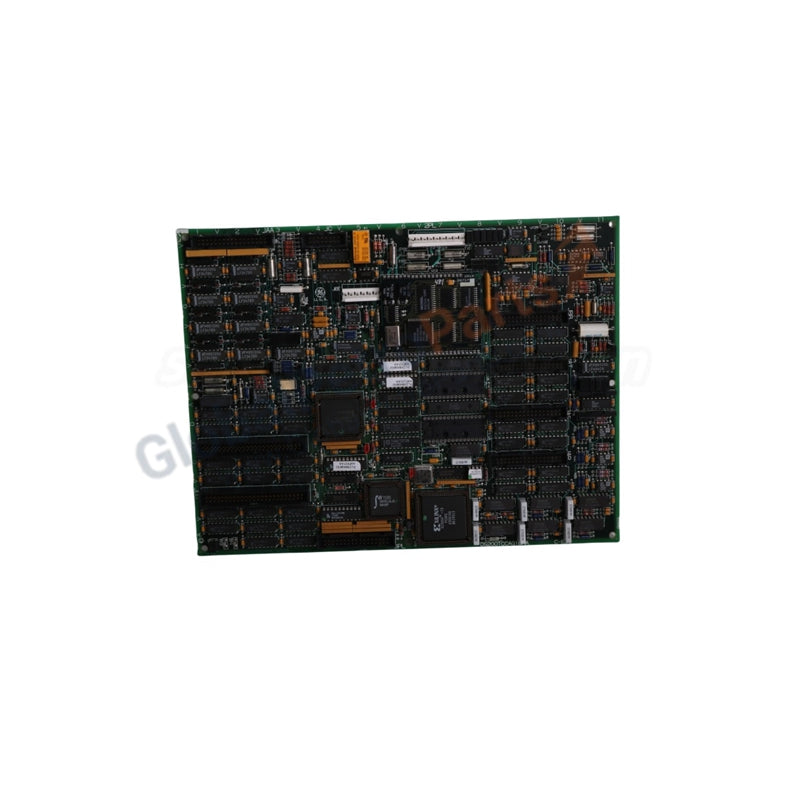

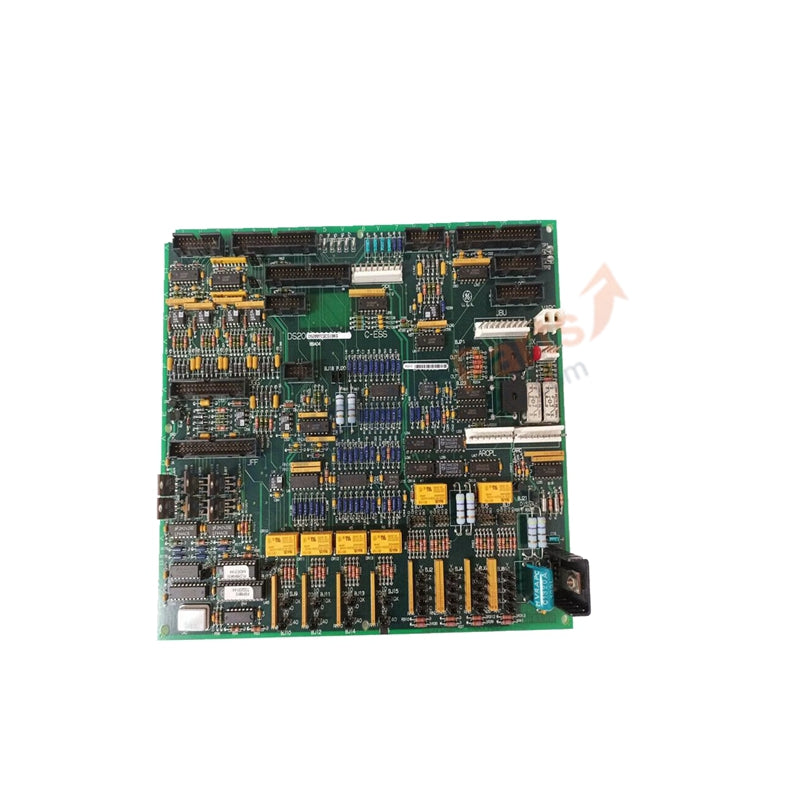

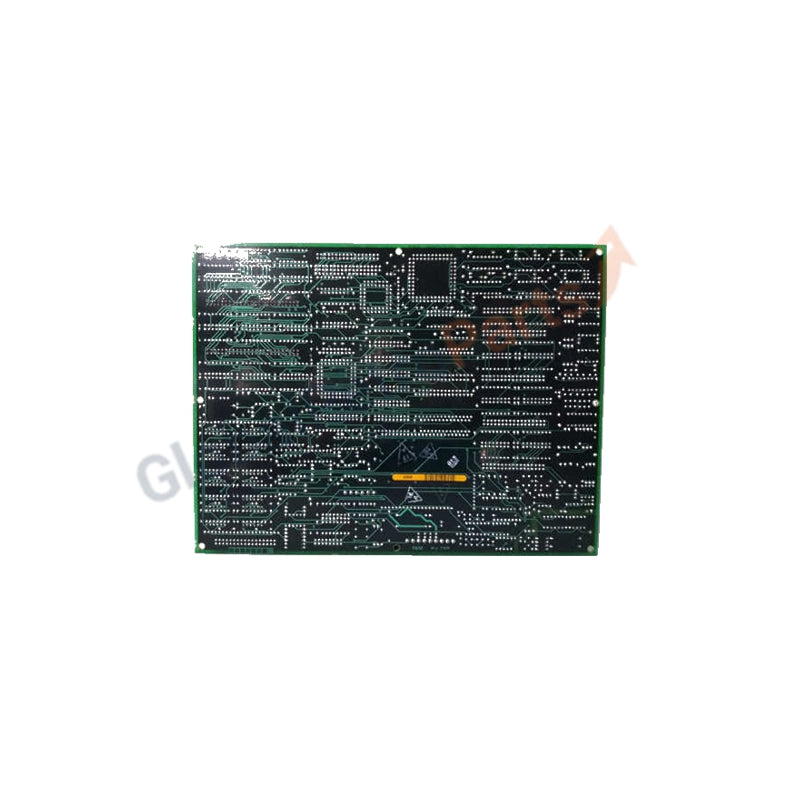

The DS200TCCAG1BAA (Model: DS200TCCAG1BAA) is a high-performance Common Control Board (TCCA) serving as the primary "engine" for the General Electric Speedtronic Mark V Turbine Control System. Unlike standard termination boards, the DS200TCCAG1BAA (Part Number: DS200TCCAG1BAA) is an intelligent processing unit equipped with an onboard microprocessor, Programmable Logic Devices (PLDs), and removable PROM modules. These PROM modules contain the essential firmware and instruction sets required for the system to execute complex turbine control algorithms, ensuring high Expertise and Trustworthiness (E-E-A-T) in power generation environments.

This module is the central hub for analog signal processing within the Mark V rack. It features two 50-pin connectors (typically labeled JCC and JDD) that facilitate high-speed data exchange between the processing core and the I/O termination boards. By utilizing programmable logic, the DS200TCCAG1BAA (Model: DS200TCCAG1BAA) can be adapted to specific turbine configurations, supporting both gas and steam applications with precision timing and robust diagnostic feedback through its onboard LED indicators.

Detailed Technical Specifications

The DS200TCCAG1BAA (Model: DS200TCCAG1BAA) is built with industrial-grade semiconductor components designed for continuous operation.
