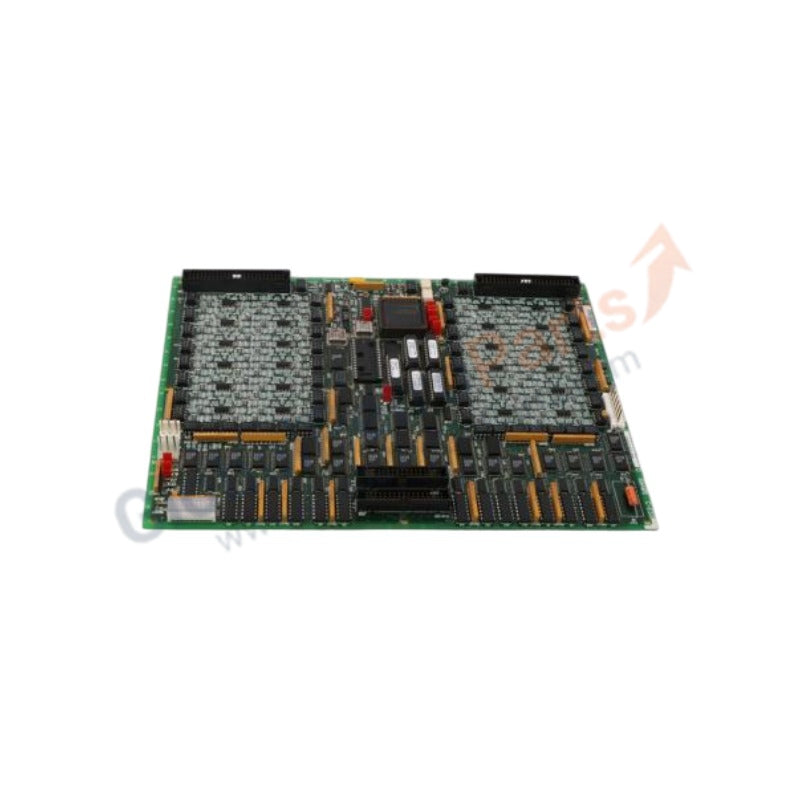

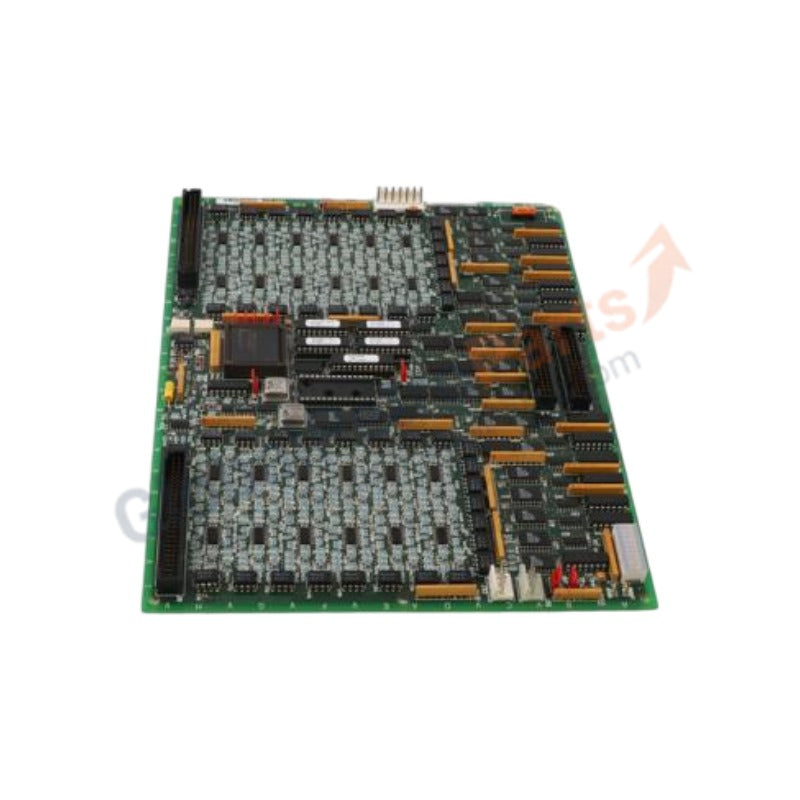

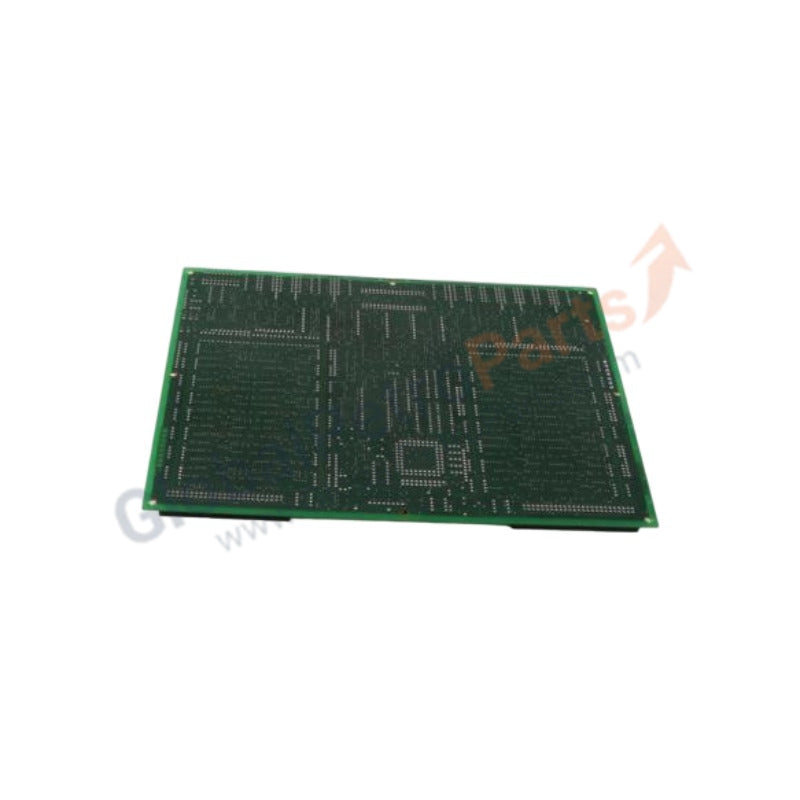

DS200TCDAH1BHD GE Mark V Digital I/O Board

Product Overview

The GE DS200TCDAH1BHD (DS200TCDAH1B) functions as a primary Digital I/O and Signal Processing interface for the GE Mark V Speedtronic turbine control system. This board serves as the critical junction for processing discrete inputs and outputs, facilitating high-speed communication between the field devices and the control core. We supply this component as 100% Brand New and Original, ensuring your turbine control rack utilizes factory-certified hardware for safety-critical logic execution. By managing contact inputs, solenoid drivers, and pulse rate signals, the DS200TCDAH1BHD ensures deterministic response times and reliable monitoring of turbine status.

Technical Specifications

Engineering Advantages

The DS200TCDAH1BHD provides advanced technical solutions for high-reliability signal management:

• Integrated Pulse Rate Processing: The board features dedicated circuitry to process high-frequency pulse inputs from speed sensors. This hardware-level processing offloads the main CPU, allowing for real-time overspeed protection and precise RPM monitoring.

• Revision "H1BHD" Resilience: This advanced revision incorporates ruggedized logic gates and improved timing oscillators. These enhancements provide superior jitter resistance and thermal stability, which are essential for maintaining synchronization in triple-redundant (  ) control configurations.

• Robust Signal Conditioning: On-board optical isolators prevent field-side electrical noise and transients from reaching the control bus. This isolation protects the Main Processor (IMCP) from damage and prevents signal corruption in electromagnetically noisy environments.

• Comprehensive Diagnostics: The board continuously monitors its own output drivers and input buffers. It identifies "stuck-at" faults or open-circuit conditions immediately, allowing the Mark V system to initiate alarm protocols before the fault compromises turbine operation.

Installation & Signal Integrity Protocols

To maintain the 100% Brand New warranty and ensure fail-safe performance, adhere to these engineering standards:

1. Termination Verification: Ensure all ribbon cables and terminal connections seat firmly into the J-ports. Loose connections on the TCDA board frequently cause intermittent I/O "flicker," which can trigger nuisance alarms or unexpected trips.

2. Jumper Synchronization: This board contains hardware jumpers that define signal scaling and board addressing. You must match these settings exactly to the board being replaced to ensure the IONET correctly maps the I/O points.

3. Static Mitigation: The high-density CMOS logic on the TCDA board is extremely vulnerable to ESD. Utilize a grounded wrist strap and anti-static mat throughout the installation and handling process.

FAQs

• Can the DS200TCDAH1BHD replace an older DS200TCDAH1B or H1A?

  Yes. The "H1BHD" is the most current and stable hardware revision in the TCDA series. It offers full backward compatibility with all previous G1/H1 iterations while utilizing more reliable modern components.

• Does this board require firmware programming?

  The TCDA board is primarily hardware-driven; however, it interfaces with the system's software configuration. While it does not typically require site-specific EPROM migration like a processor board, you must verify the hardware jumper settings for correct signal identification.

• What are the primary indicators of a failing TCDA board?

  Symptoms include "I/O Link Failure" alarms, inconsistent speed readings, or the failure of multiple discrete inputs to update in the operator interface. Physical inspection may reveal heat damage near the driver transistors or failed filter capacitors.
