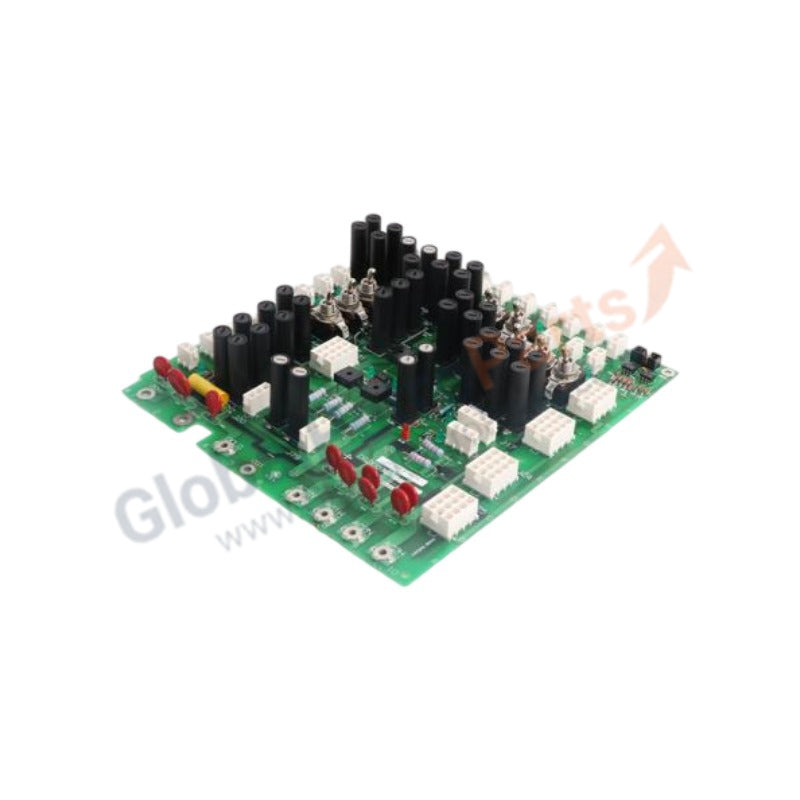

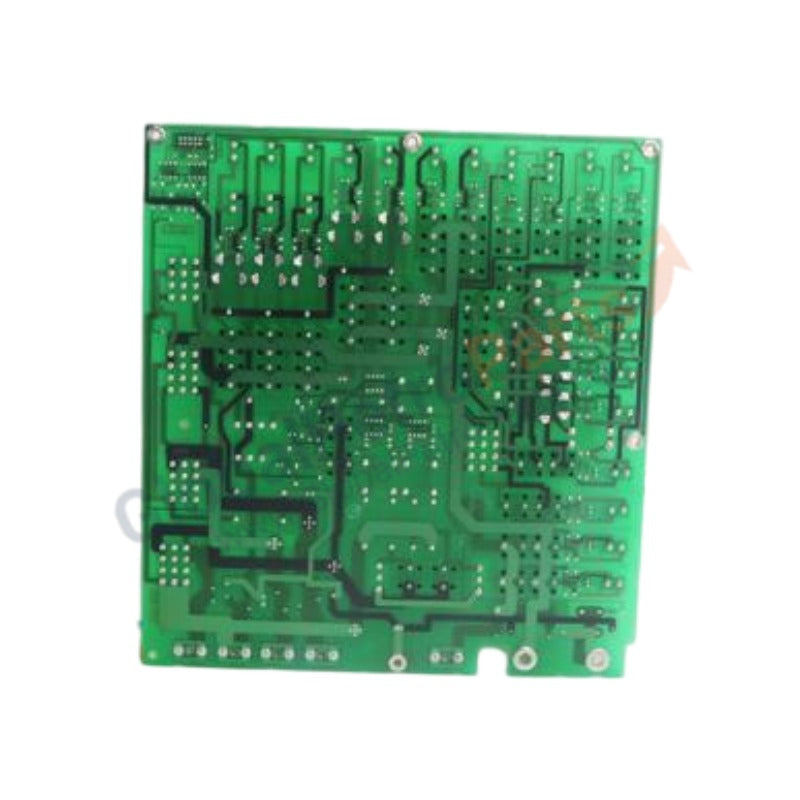

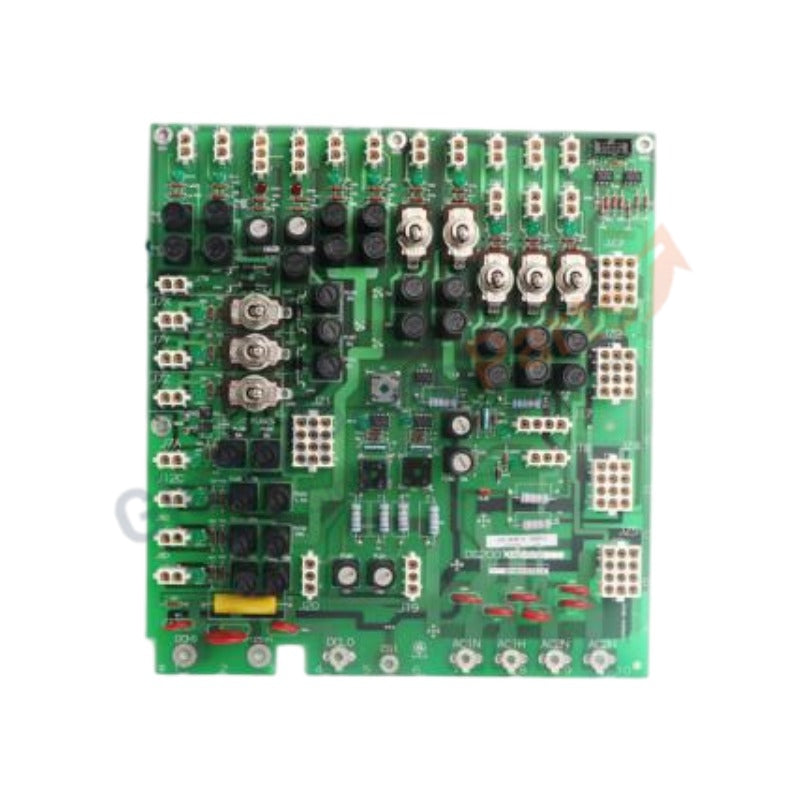

DS200TCPDG1B GE Mark V Power Distribution Board

Product Overview

The DS200TCPDG1B (TCPD) functions as the primary Power Distribution Board within the GE Mark V Speedtronic control cabinet. This essential module receives 125V DC power from the turbine's battery system or power supply and redistributes it to the core processors (, , and ) and various I/O terminal boards. It manages the branch circuit protection and isolation required to maintain control system uptime. This unit arrives as 100% Brand New and original, providing the pristine fuses, high-current traces, and terminal integrity necessary for the safe electrical operation of utility-scale gas and steam turbines.

Technical Specifications

The DS200TCPDG1B architecture prioritizes high-current capacity and robust circuit isolation.

Engineering Advantages

• Segmented Fault Isolation: The TCPD board features individual fuses for every power output branch. This design ensures that a localized short circuit in a single field instrument or terminal board does not collapse the entire control power bus, preventing unnecessary turbine trips.

• High-Load Trace Design: Engineers designed the DS200TCPDG1B with extra-thick copper layers to handle heavy DC inrush currents. This prevents overheating and voltage drops during the simultaneous actuation of multiple fuel valves or solenoids.

• Voltage Monitoring Interface: Integrated test points allow field technicians to verify the health of the 125V DC and 24V DC rails safely without dismantling cabinet wiring. This accelerates troubleshooting during scheduled maintenance outages.

• Dual Power Path Support: The board facilitates redundant power inputs, allowing the Mark V system to draw from both primary and backup battery banks, ensuring continuous protection even during a total AC power loss.

Installation and Field Guidelines

1. Fuse Audit: Before installation, verify that all fuses match the amperage ratings specified in your turbine's original wiring schematic. Installing an oversized fuse on the TCPD board compromises the protection of downstream logic modules.

2. Terminal Torque Verification: Use a calibrated screwdriver to tighten all power input and distribution wires. Loose connections on the TCPD board represent a major fire risk and often cause intermittent "Control Power Loss" alarms.

3. Grounding Integrity: Secure the board to the metal standoffs in the Mark V rack to establish a solid ground reference. This ground path is critical for the onboard surge suppression components to function correctly during lightning strikes or grid transients.

FAQs

Q: Does the DS200TCPDG1B include the branch fuses?

A: Yes, this brand-new board comes fully populated with the standard GE factory-specified fuses. We recommend verifying these values against your specific site documentation before energizing.

Q: Can I use the DS200TCPDG1B to replace a DS200TCPDG1A?

A: The "G1B" version serves as a direct, enhanced successor to the "G1A." It features updated component specifications and improved dielectric strength, making it a drop-in replacement for any Mark V core requiring a TCPD board.

Q: How do I know if the board has failed?

A: Failure typically manifests as a "Loss of Control Power" alarm on a specific processor or a visible blown fuse that resets immediately upon replacement. Replacing the entire board with this new unit eliminates internal trace degradation that causes these chronic power issues.
