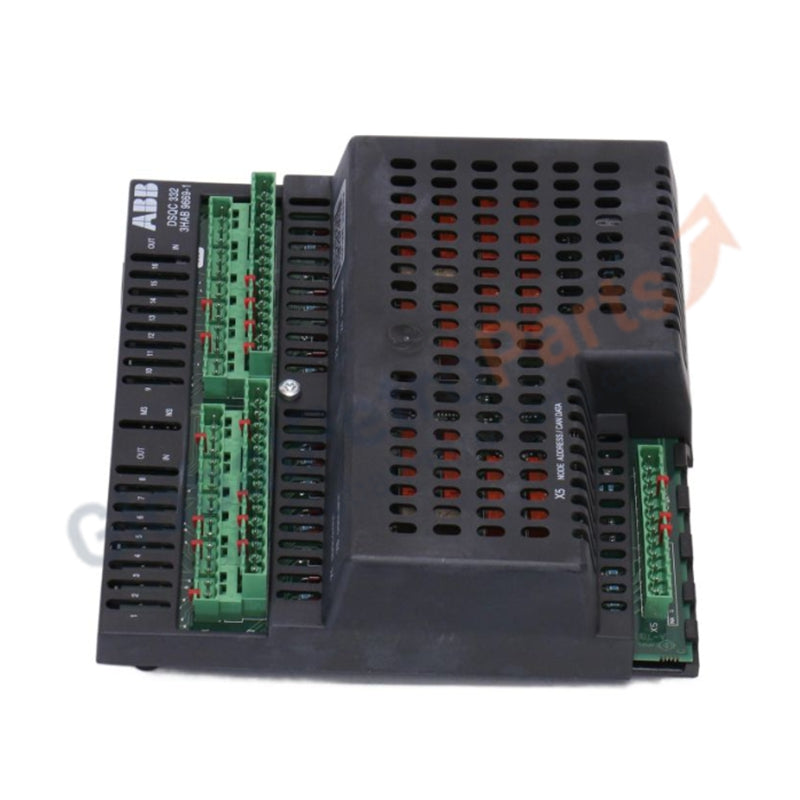

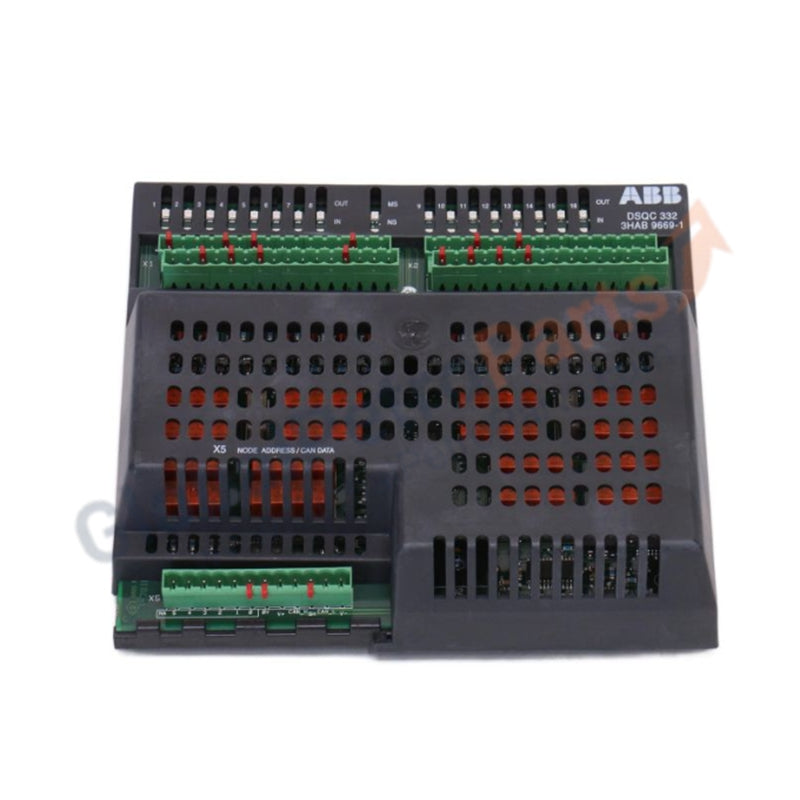

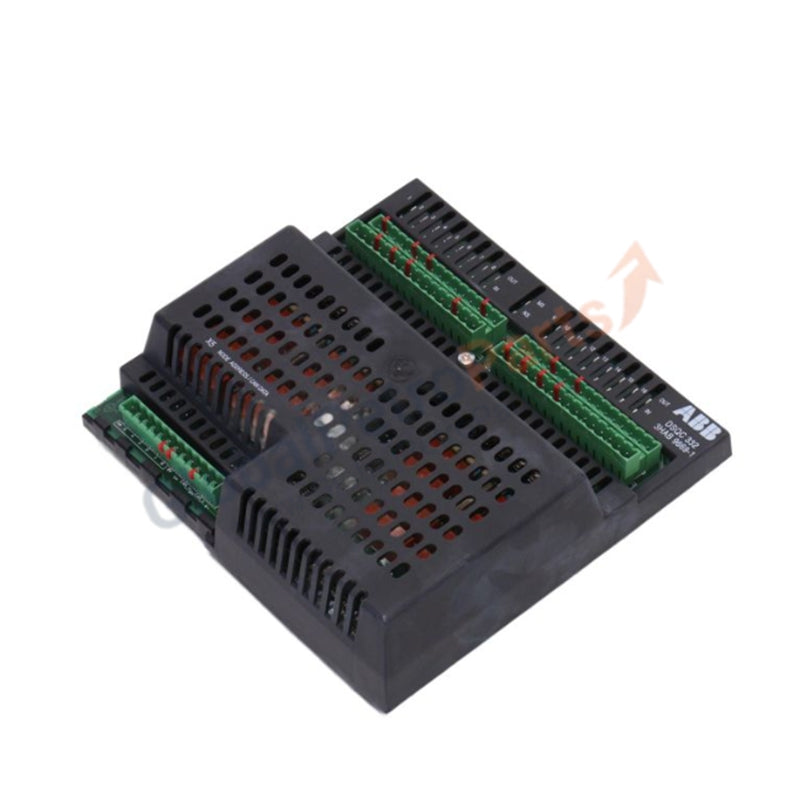

DSQC 332 3HAB 9669-1 | ABB S4 Series | Digital Relay I/O Module

Product Overview

The DSQC 332 (3HAB 9669-1) is a specialized digital relay interface board developed for the ABB S4 robot controller system. Unlike standard transistor-based I/O, this module utilizes physical relay contacts to manage digital signals, providing superior electrical isolation and the ability to switch higher voltage or current loads directly. It serves as a critical link between the robot's control logic and external industrial equipment, such as heavy-duty solenoids, motor starters, and high-voltage safety circuits.

Technical Specifications

The DSQC 332 | 3HAB 9669-1 is engineered for durability in high-cycle industrial environments:

• Manufacturer: ABB

• Model Designation: DSQC 332

• Part Number: 3HAB 9669-1

• Successor Component: 3HAC17973-1

• System Compatibility: ABB S4 Robotics Platform

• I/O Type: Digital Relay Output / Input

• Electrical Isolation: High-level galvanic isolation via relay contacts

• Net Weight: 0.6 kg

• Country of Origin: Sweden

• Customs Code: 85176200

• Mounting: Standard S4 controller internal rack integration

Application and Integration

As a core component of the S4 control architecture, the DSQC 332 (3HAB 9669-1) is primarily used in applications where discrete 24V DC logic is insufficient for the field equipment's power requirements. The relay-based outputs allow for "dry contact" switching, making it highly versatile for interfacing with third-party PLCs or older industrial machinery. When replacing an existing unit, maintenance engineers should verify the mechanical condition of the relay contacts to ensure consistent signal continuity during high-frequency operations.

Functional FAQ

Can the DSQC 332 be used with S4C or IRC5 controllers?

While the DSQC 332 | 3HAB 9669-1 is specifically designed for the S4 series, ABB introduced newer versions like the 3HAC17973-1 for later controller generations. Always check the backplane connector compatibility and software mapping before attempting a cross-generational installation.

What is the benefit of using a relay board over a digital I/O board?

The primary advantage is the robust isolation and the capability to handle varied electrical loads (AC or DC) that would otherwise damage standard transistor outputs.
