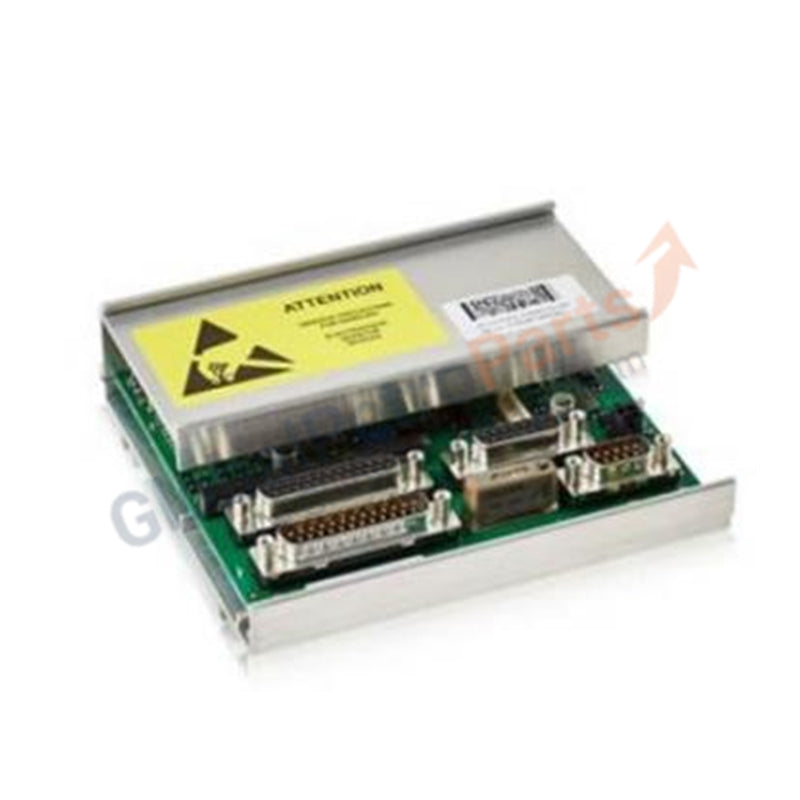

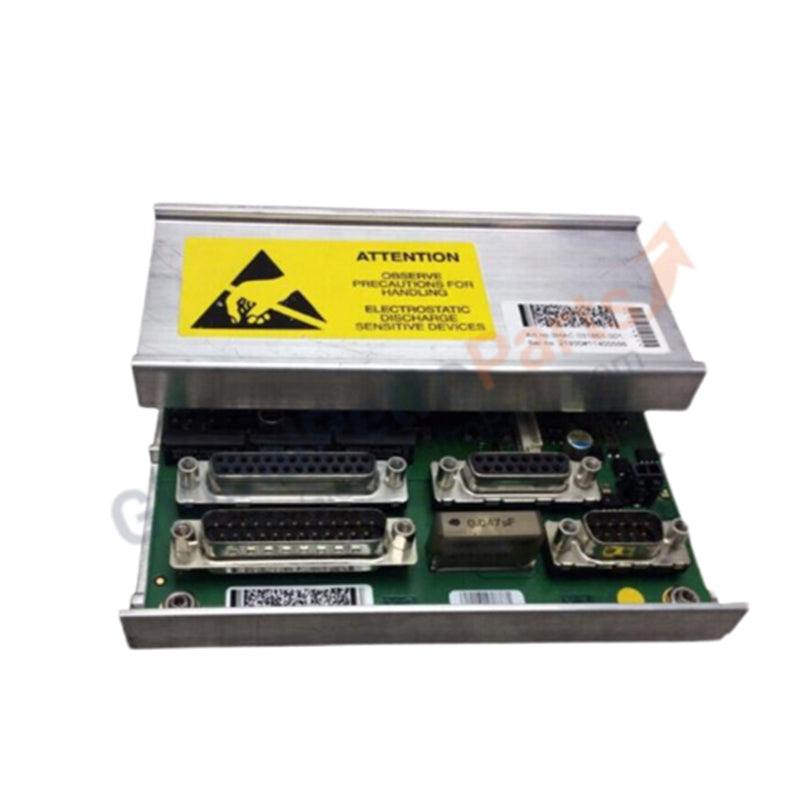

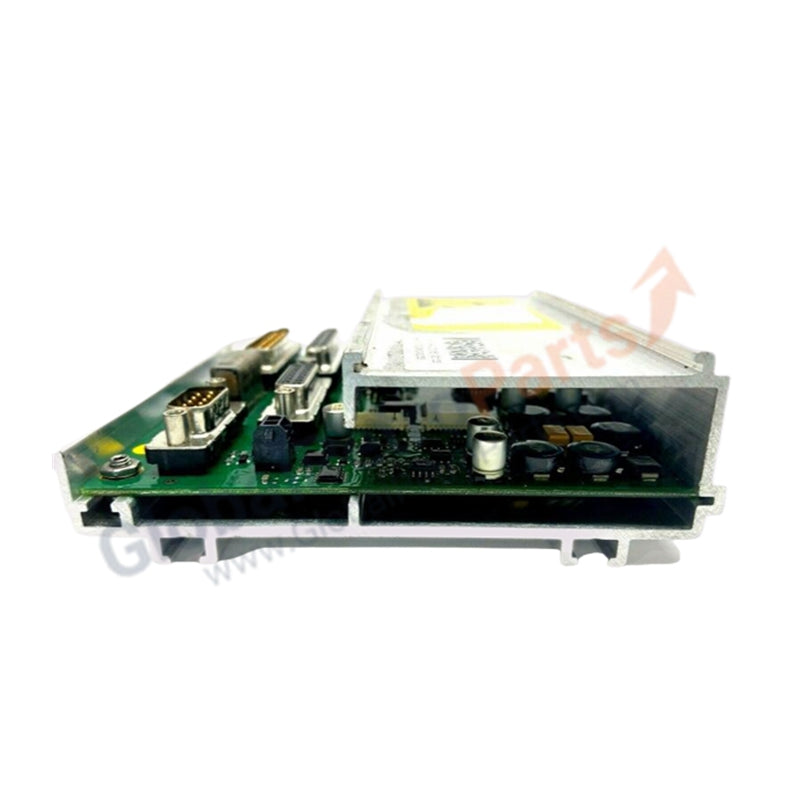

DSQC 633 | ABB Serial Measurement Board 3HAC022286-001 SMB Unit

Functional Role

The ABB DSQC 633 (3HAC022286-001) is a specialized Serial Measurement Board (SMB) utilized within IRC5 and related robotic control systems. This unit functions as the primary interface for resolving and transmitting motor position data from the robot's encoders back to the main controller. By processing feedback from the serial measurement cable, the DSQC 633 ensures the controller maintains an absolute understanding of the manipulator's spatial coordinates, even after power cycles.

Operational Characteristics

Designed for high-precision feedback loops, the DSQC 633 is a critical component for maintaining calibration integrity and path accuracy.

• Data Acquisition: Facilitates the high-speed transfer of rotational data from multi-axis motor resolvers.

• System Continuity: Often integrated with a battery backup (external to the board) to preserve axis revolution counters during shutdown.

• Compatibility: Engineered for the IRC5 controller family and compatible with various ABB industrial manipulator models.

• Legacy Lifecycle: While the DSQC 633 is a standard spare part, it can be superseded or replaced by assembly sets in newer system iterations (e.g., 3HAC046686 series) depending on specific hardware revisions.

Technical Specifications

Industrial Application

This Serial Measurement Unit is typically installed within the base of the robot or inside the controller cabinet. It is essential for applications requiring absolute positioning and high-velocity movements, such as material handling, spot welding, and assembly. In the event of an SMB failure, the robot may lose its revolution counters or experience synchronization errors, making the DSQC 633 a vital component for minimizing downtime and ensuring safe operational restarts.
