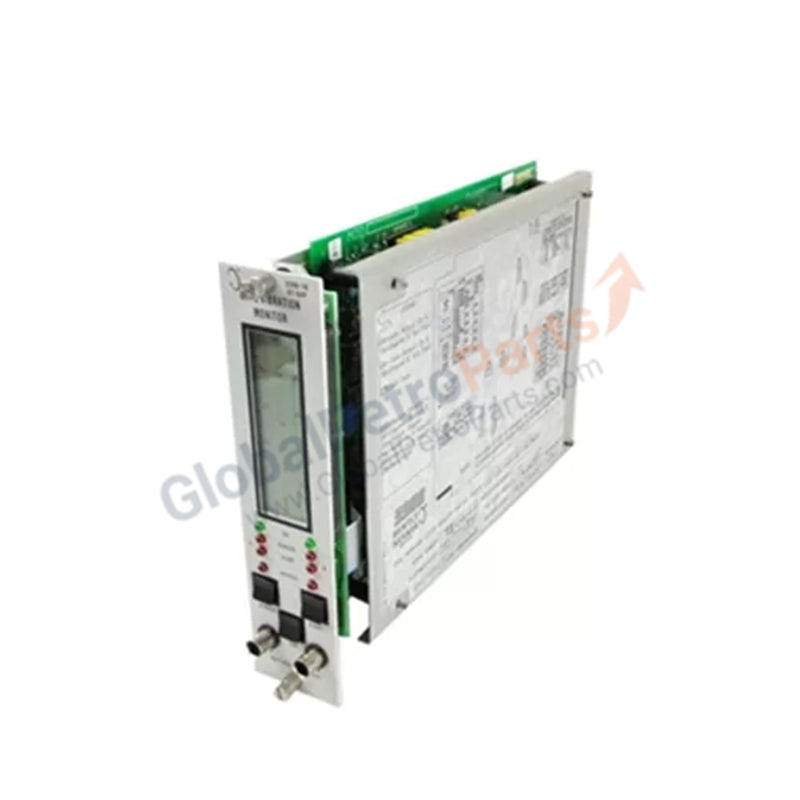

Dual Channel Differential Expansion Monitor Module | Bently Nevada | 3300/45-02-02-03-00

Overview

The Bently Nevada 3300/45-02-02-03-00 Dual Differential Expansion Monitor Module precisely measures the axial expansion between a rotor and its casing to detect and control thermal growth in rotating machinery. It provides continuous monitoring of expansion behavior to prevent contact, misalignment, and thermal stress during start-up and normal operation. Engineered for high response speed and system compatibility, it ensures stable machine performance and long-term reliability in demanding industrial environments.

Technical Specifications

• Model Number: 3300/45-02-02-03-00

• Product Type: Dual Differential Expansion Monitor

• Manufacturer: Bently Nevada (GE Energy)

• Measurement Function: Axial rotor-to-casing expansion

• Input Channels: Two independent channels

• Measurement Range: Configurable (e.g., 0–5 mm, 0–10 mm full scale)

• Input Type: Compatible with Bently Nevada proximity probe and Proximitor® systems

• Output Signal: 4–20 mA analog output for control or monitoring integration

• Response Time: <1 millisecond

• Alarm Configuration: Digitally adjustable alert and danger levels (epoxy-sealed relays)

• Power Supply: 24 VDC nominal

• Operating Temperature: -40°C to +70°C (-40°F to +158°F)

• Construction: EMI/RFI-shielded industrial housing

• Compliance: Meets API 670 and ISO 10816 standards

• Country of Origin: USA

Key Features

• Fast Response Monitoring: Millisecond-level response for immediate detection of thermal expansion changes.

• Dual-Channel Measurement: Independently monitors two expansion points for improved protection coverage.

• Configurable Range: Adjustable full-scale settings adapt to various machinery specifications.

• Robust Signal Output: 4–20 mA interface ensures stable data transmission to PLC or DCS systems.

• Durable Design: Industrial-grade build suitable for continuous operation in high-temperature zones.

• Accurate Protection Logic: Digital alarm thresholds enable precise configuration for machine safety.

Application Scenarios

The Bently Nevada 3300/45-02-02-03-00 monitor is ideal for:

• Steam and gas turbines

• Compressors and expanders

• Generators and large motors

• Machinery requiring close supervision of axial displacement and thermal growth

It is particularly suited for installations where rapid detection of differential expansion is critical to preventing mechanical interference or failure.

FAQ

Q1: What does a Differential Expansion Monitor do?
It measures the relative thermal expansion between the rotor and casing to prevent contact or damage caused by uneven temperature changes.

Q2: Can this module work with existing 3300 racks?
Yes, it integrates seamlessly with standard Bently Nevada 3300 systems and proximity probe setups.

Q3: How fast does it respond to thermal expansion?
The monitor features a response time of less than 1 millisecond, ensuring real-time protection.
