Emerson A6312/06 | AMS 6500 Speed and Key Phase Monitor

Emerson A6312/06 CSI 6500 Speed and Phase Reference Monitor Rev.12

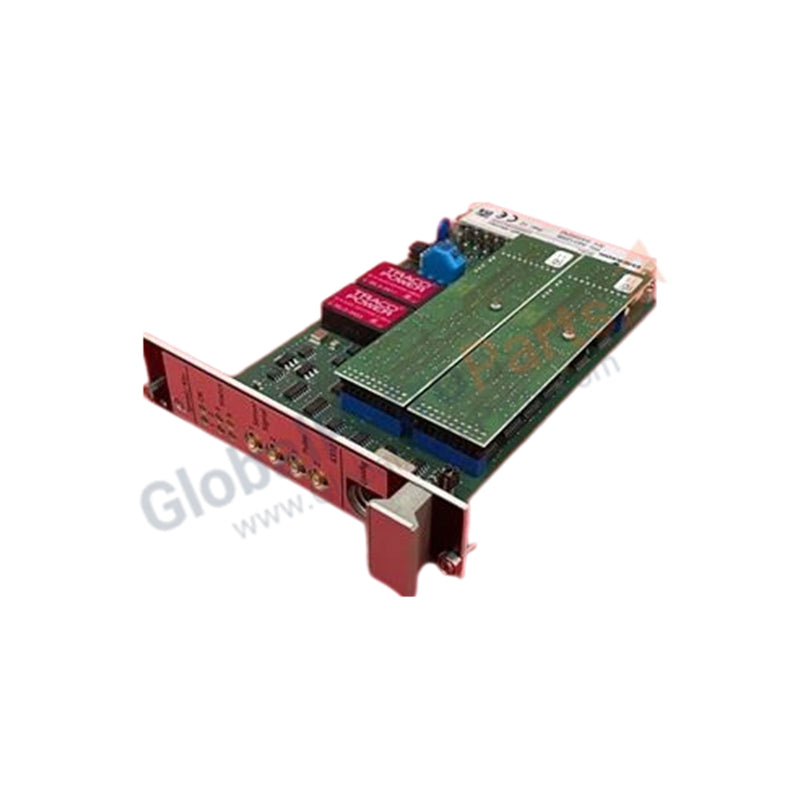

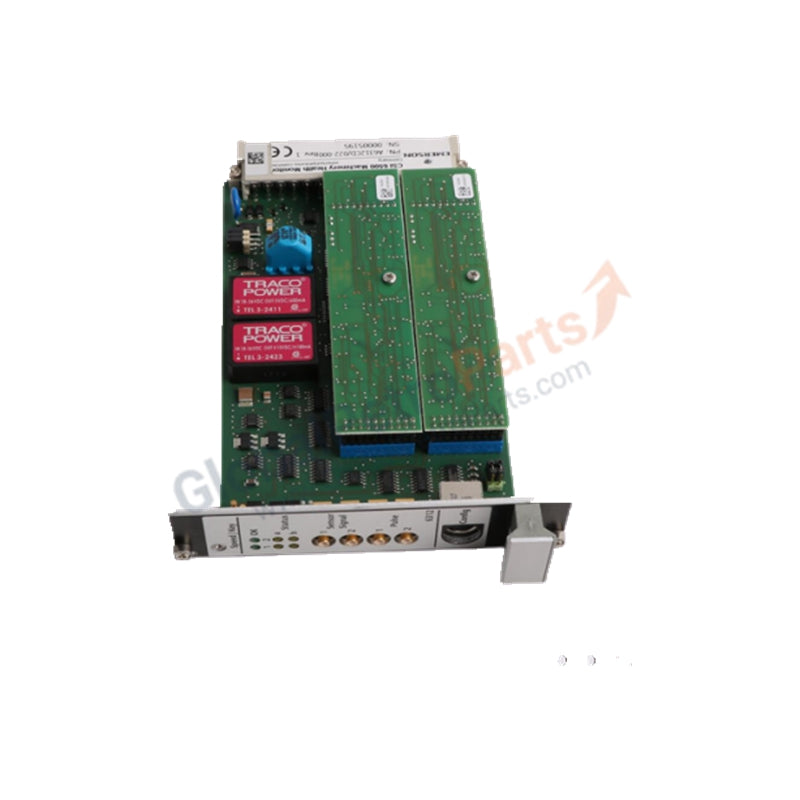

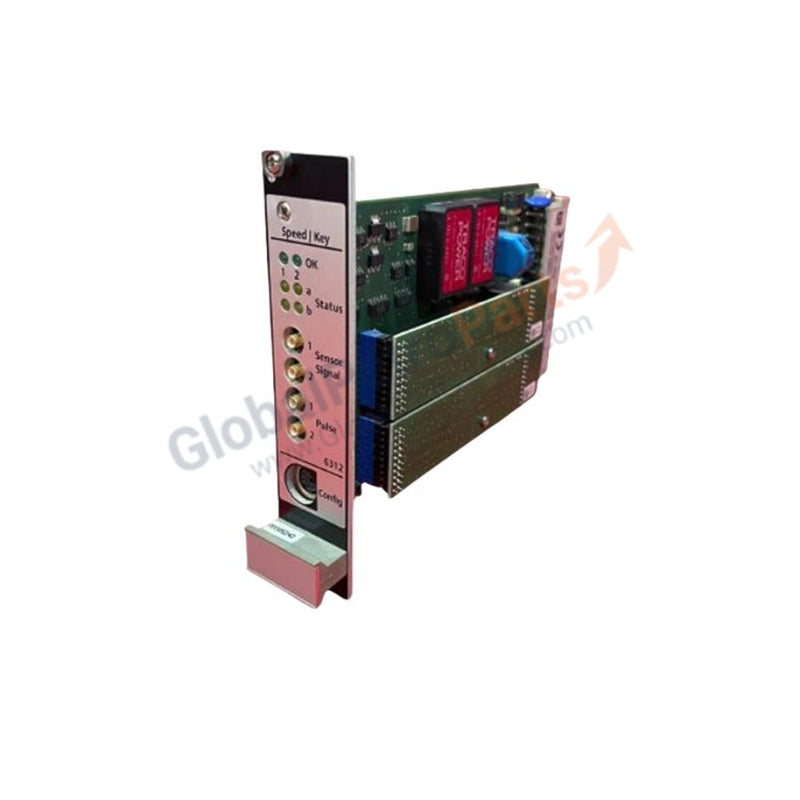

The A6312/06 (Revision: 12) is a specialized dual-channel speed and phase reference monitoring module designed for the Emerson AMS 6500 Machinery Health Monitor system. This module provides the critical timing foundation necessary for order tracking and synchronous sampling, allowing the system to correlate vibration data with shaft rotational position. The A6312/06 (Model: A6312/06) is a 3U plug-in card that captures pulses from proximity probes or magnetic pickups, converting them into precise digital speed values and phase reference (Keyphasor) signals for machinery protection and advanced rotor diagnostics.

Fully compliant with API 670 standards, the A6312/06 (Series: AMS 6500) is engineered for high-availability environments such as power plants and refineries. The Revision 12 (Rev.12) firmware and hardware enhancements ensure stable signal processing even in high-EMI (electromagnetic interference) conditions. By maintaining the Expertise and Trustworthiness (E-E-A-T) of the measurement chain, the module allows operators to detect overspeed conditions, shaft cracks, and misalignments through phase-based analysis before mechanical failure occurs.

Detailed Technical Specifications

The A6312/06 (Rev.12) is optimized for high-resolution timing and frequency acquisition.
