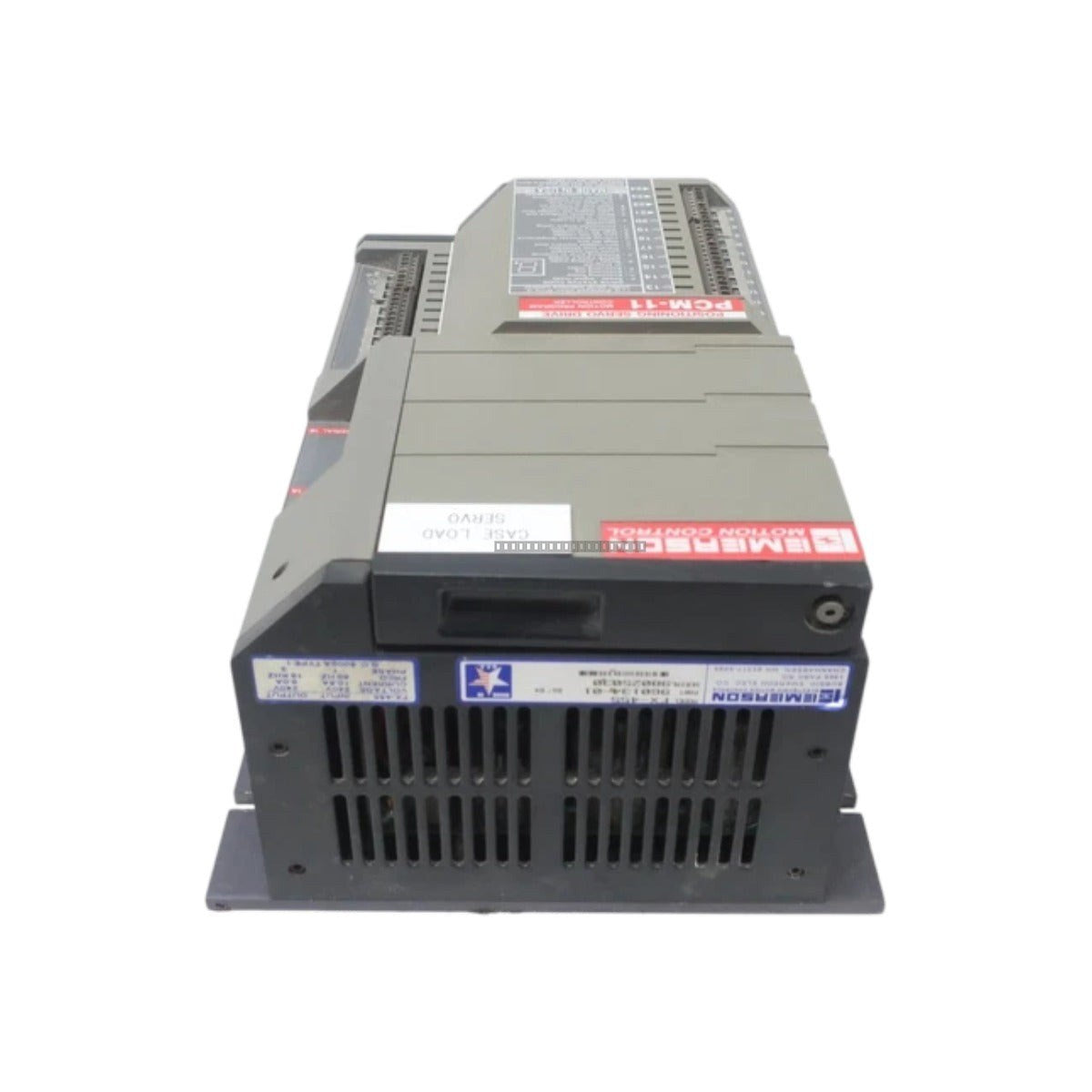

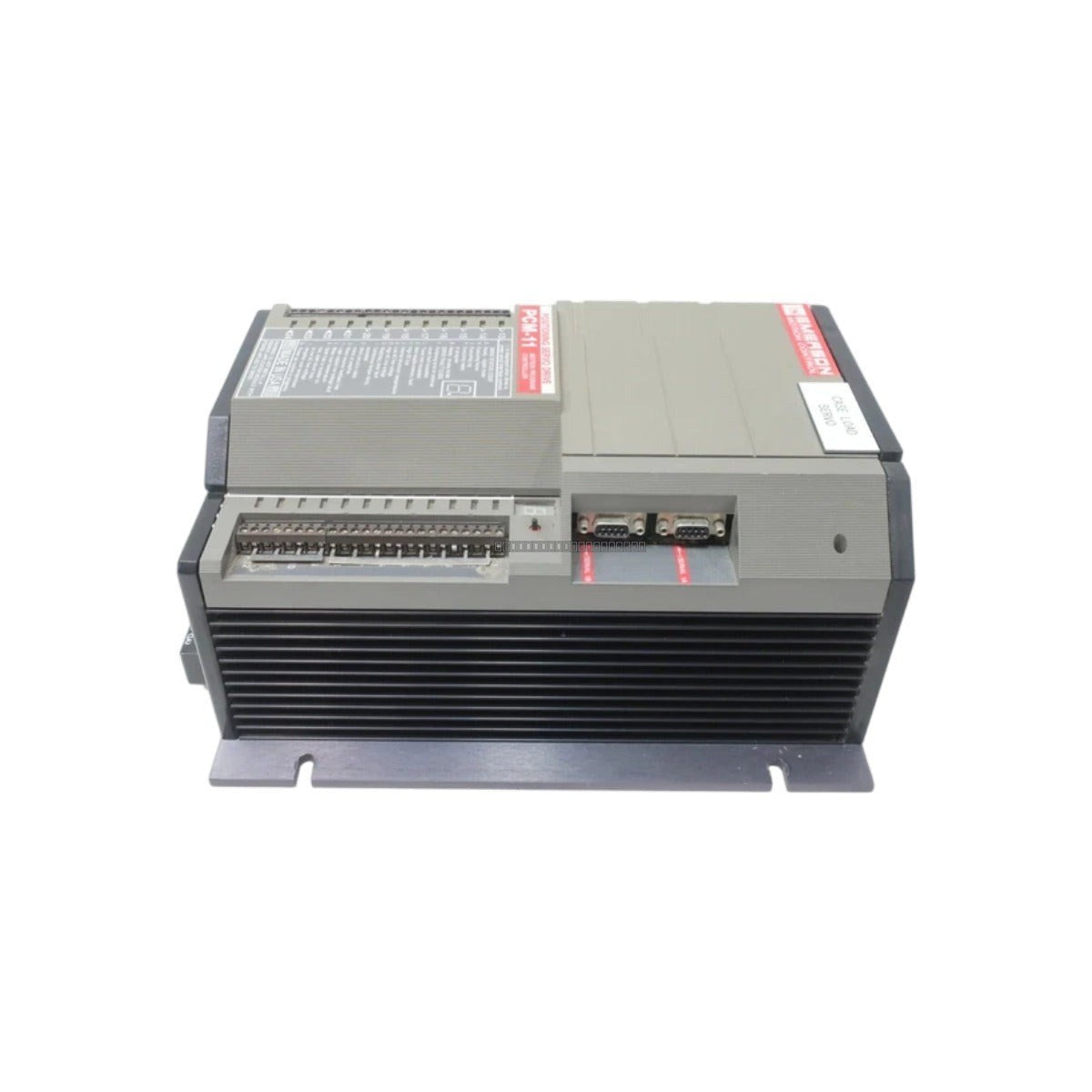

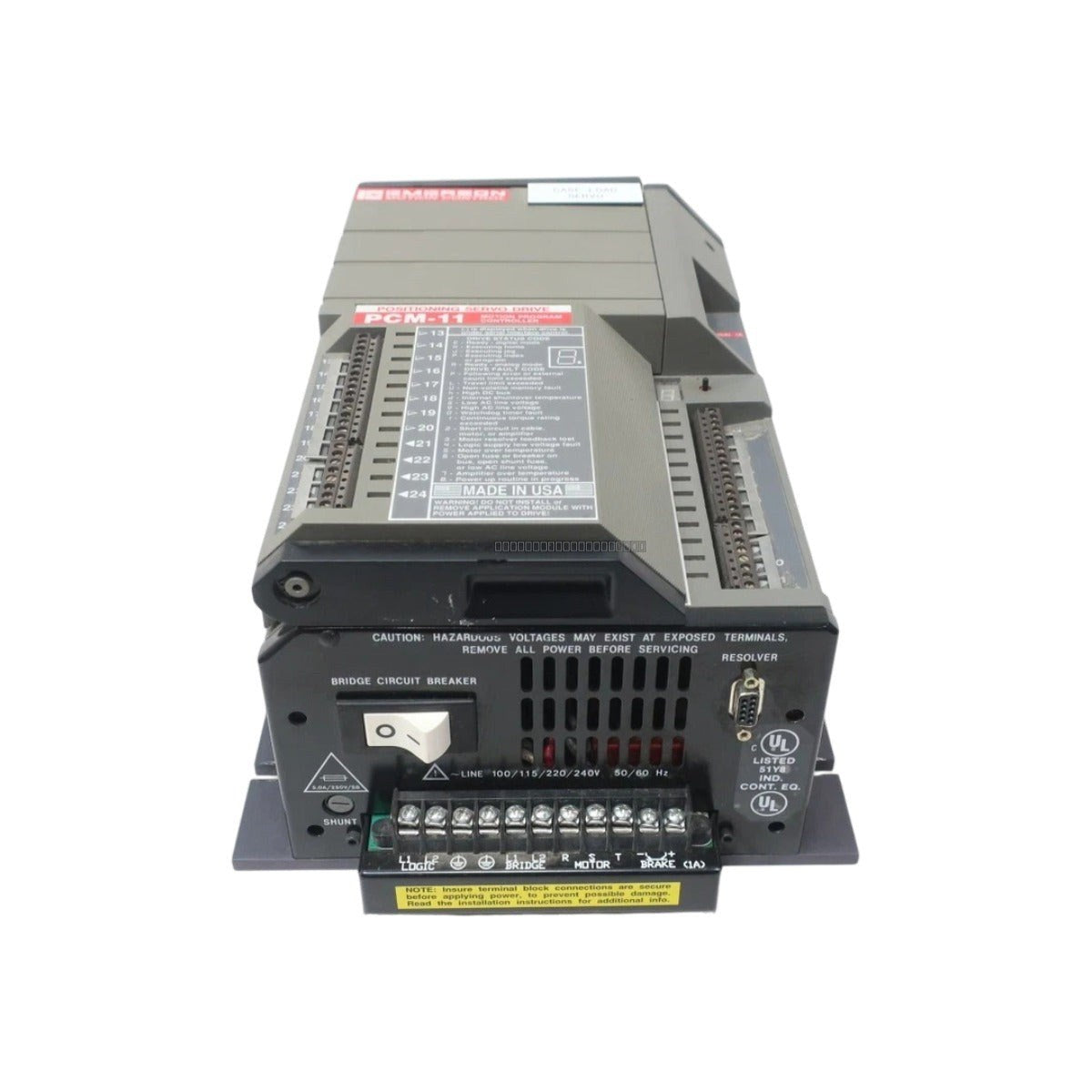

Emerson Control Techniques PCM-11 Motion Control Module

Description

The PCM-11 (PCM11) is a high-performance Application Motion Program Controller designed to provide advanced motion control capabilities within the Emerson and Control Techniques ecosystems. Functioning as a specialized processor module, it executes complex motion profiles and logic programs independently of the primary drive control loop. This module is essential in high-precision industrial sectors such as automated assembly, packaging, and high-speed material handling, where synchronized multi-axis coordination is required. By offloading motion-specific tasks from the main controller, the PCM-11 significantly reduces system overhead and increases the deterministic response of the machinery, playing a central role in maximizing throughput and minimizing mechanical wear through optimized motion trajectories.

Features

• Dedicated microprocessor for high-speed program execution and real-time task management.
• Onboard non-volatile flash memory for storage of sophisticated motion programs and parameters.
• Direct interface with drive internal bus for instantaneous parameter adjustment and high-resolution feedback monitoring.
• Supports electronic camming, gearing, and precise positioning functions.
• Ruggedized hardware design for reliable operation in demanding thermal environments.
• Acts as a localized master in distributed control networks.

Applications

The PCM-11 is typically utilized in industrial automation environments requiring high-speed, multi-axis synchronization. Common applications include:

• Automated assembly lines
• High-speed packaging machinery
• Material handling and conveyor systems
• Precision positioning and electronic gearing applications

Technical Specifications

Installation Guidelines

• Ensure the drive is powered down and isolated before inserting or removing the PCM-11 module.
• Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
• Ensure the module is fully seated in the drive backplane slot to maintain reliable bus communication.
• Maintain adequate clearance around the module to allow for natural convection cooling; do not obstruct ventilation paths.
• Route communication cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to ensure signal integrity.
• Verify that the ambient temperature remains within the specified 0 to 50 deg C range during operation.

FAQ

What is the primary function of the PCM-11 module?

The PCM-11 serves as an application motion program controller that offloads complex motion logic from the main drive processor to improve system response time and coordination.

How is the PCM-11 powered?

The module receives its power supply directly through the drive backplane connection, requiring no external power wiring.

What programming environment is used for this module?

The PCM-11 supports programs typically developed using specialized motion languages or IEC 61131-3 compliant environments, which are loaded via the RS485/Serial interface.
