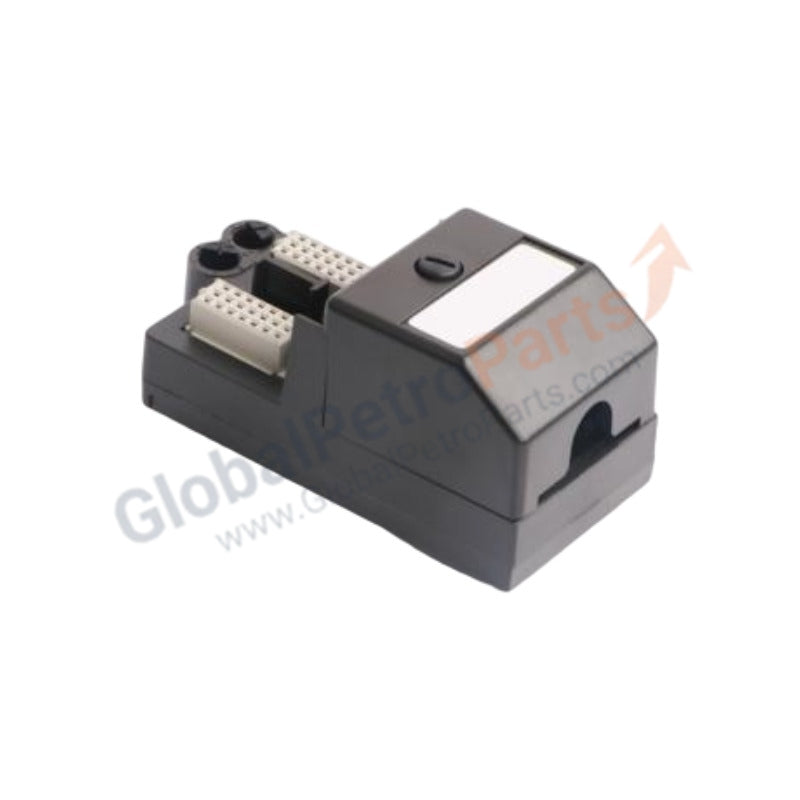

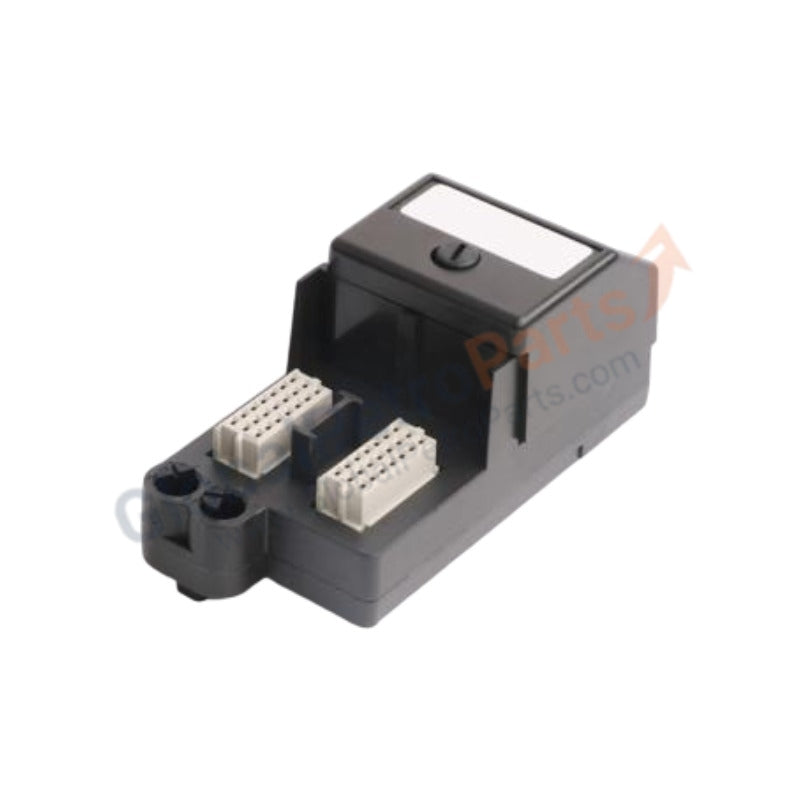

Emerson DeltaV 16-CH AI Terminal Block KJ3223X1-EA1
  • Emerson DeltaV 16-CH AI Terminal Block KJ3223X1-EA1
  • Emerson DeltaV 16-CH AI Terminal Block KJ3223X1-EA1
  • Emerson DeltaV 16-CH AI Terminal Block KJ3223X1-EA1
Emerson DeltaV 16-CH AI Terminal Block KJ3223X1-EA1

Emerson

Emerson DeltaV 16-CH AI Terminal Block KJ3223X1-EA1

10 left

  • Manufacturer: Emerson

  • Product No.: KJ3223X1-EA1

  • Product Type: 16-CH AI Terminal Block

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 200g

  • Shipping port: Xiamen

  • Warranty: 12 months

Special offer ends!
00 :
00 :
00

Product Overview

Emerson designed KJ3223X1-EA1 to provide precise field signal termination for DeltaV analog input modules.
It supports sixteen input channels and ensures stable signal transmission in demanding industrial environments.

Moreover, KJ3223X1-EA1 simplifies wiring while improving signal integrity through structured terminal layout and shielding design.
Engineers rely on this terminal block to achieve consistent measurement accuracy and efficient cabinet organization.

Technical Specifications

Parameter Detailed Specification
Model KJ3223X1-EA1
Manufacturer Emerson
Product Type 16-Channel Analog Input Terminal Block
Series DeltaV Distributed Control System
Channel Capacity 16 analog input channels
Signal Type Voltage and current input signals
Wiring Method Screw-type terminal connections
Terminal Count 32+ terminals for signal and common wiring
Backplane Interface Connector for DeltaV I/O interface module
Mounting Type Panel mounting or carrier-mounted configuration
Dimensions (W × H × D) Approximately 180 mm × 120 mm × 60 mm
Weight Approximately 0.5 kg
Material Flame-retardant industrial plastic with metal connectors
Shielding Integrated shield connections for noise reduction
Grounding Dedicated grounding terminals for system stability
Isolation Channel-to-ground isolation supported via system design
Operating Temperature 0°C to 60°C
Storage Temperature -40°C to 85°C
Humidity 5% to 95% non-condensing
Compliance Meets industrial automation and ATEX-related requirements
Cable Size Range Typically supports 0.5 mm² to 2.5 mm² wiring
Connection Layout Clearly labeled terminals for each channel input
Maintenance Access Front-access terminals for easy inspection and replacement



FAQ

Q1: Is this product original and new?
Yes, we supply KJ3223X1-EA1 as brand-new and original from Emerson.

Q2: Do you have stock available?
Yes, we keep KJ3223X1-EA1 in stock for immediate and flexible order handling.

Q3: How fast can you ship the order?
We ship within 3 days to 2 weeks depending on order size and availability.

Q4: Which logistics services do you use?
We usually use DHL and other major international logistics providers for fast delivery.

Q5: What is the return policy?
We support returns within 30 days if any quality issue appears after delivery.

Q6: What signal types does this terminal block support?
The KJ3223X1-EA1 supports both voltage and current analog input signals.

Q7: How many channels does this terminal block provide?
The KJ3223X1-EA1 provides sixteen independent analog input channels.
Return policy

​We aim to provide reliable products and a smooth purchasing experience. If there is a problem with your order, please contact us and we will assist according to our Refund Policy.
Shipping

We provide international shipping options to meet different delivery requirements. Please review details regarding methods and timelines in our Shipping Policy.
Warranty

We provide a 12-month warranty for all products, subject to normal use and proper installation.
