Emerson DeltaV KJ1710X1-BA1 Single Port Fiber Switch

Overview

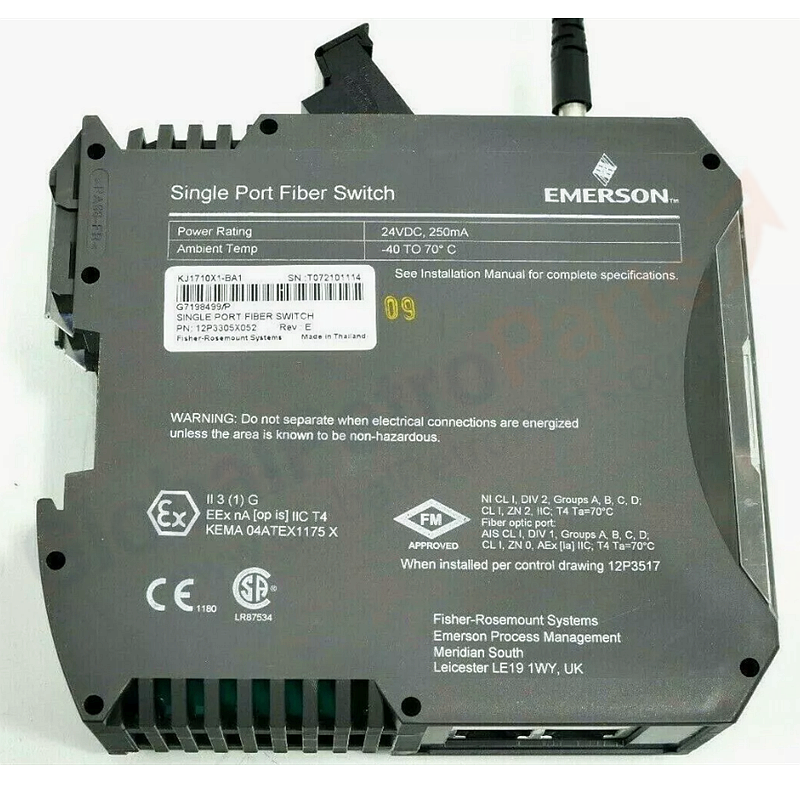

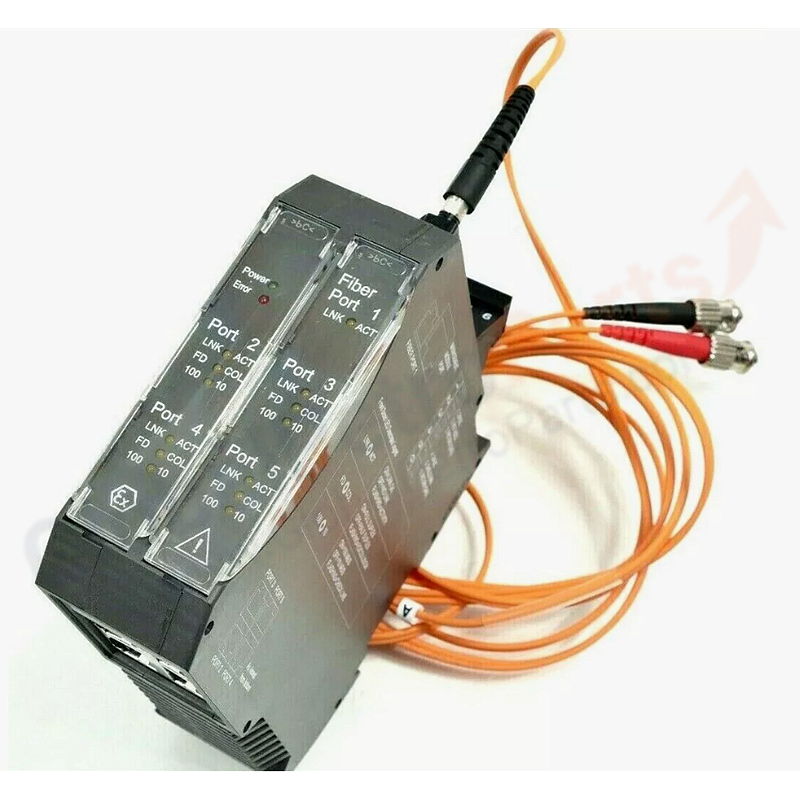

The Emerson KJ1710X1-BA1 is a Single Port Fiber Switch designed for industrial automation networks. It provides reliable fiber-optic communication within DeltaV™ distributed control systems and is certified for hazardous atmospheres.

Technical Specifications

• Manufacturer: Emerson
• Model: KJ1710X1-BA1
• Also Known As: VE6019, 12P3305X
• Type: Single Port Fiber Switch
• Input Power: 19.2 – 28.8 VDC @ 250 mA
• Weight: 0.23 – 0.55 kg

Environmental & Safety Ratings

• Operating Temperature: −40 °C to +70 °C
• Shock: 10 G, ½ sine wave for 11 ms
• Vibration: 1 mm p-p (5–16 Hz); 0.5 g (16–150 Hz)
• Relative Humidity: 5 % – 95 % non-condensing
• Airborne Contaminants: ISA-S71.04-1985 Class G3
• Hazardous Area: II 3G Ex nA [op is] IIC T4; Zone 2 / Class I Div. 2

Key Features

• Single-port fiber switching for extended network reach and EMI immunity
• Wide input voltage range (19.2–28.8 VDC) tolerates plant power fluctuations
• Hazardous-atmosphere approved for global deployment
• Compact form factor for space-constrained control cabinets

FAQ

Q: What fiber type does this switch support?
A: Refer to the product label for specific fiber connector type (typically ST or SC multimode for DeltaV fiber switches).

Q: Can this be used in a redundant network ring?
A: As a single-port device, it is typically used at the network edge. For ring redundancy, multi-port switches (e.g., KJ1740X1-BA1) are recommended.

Q: Is grounding required?
A: Yes, proper chassis grounding is essential for EMC performance and safety in hazardous areas.

Installation Guidelines

1. Mount on a DIN rail or panel in a suitably rated enclosure.
2. Connect 24 VDC power to the terminal block.
3. Attach the fiber patch cable to the port and verify link LED illumination.
4. Ensure the enclosure maintains IP rating for the installed environment.

Selection Tips

• Choose KJ1710X1-BA1 when you need a single fiber port extension in a DeltaV network.
• Verify fiber connector type (ST/SC/LC) matches your plant cabling standard.
• For multi-port fiber switching, consider the 4-port KJ1740X1-BA1.
