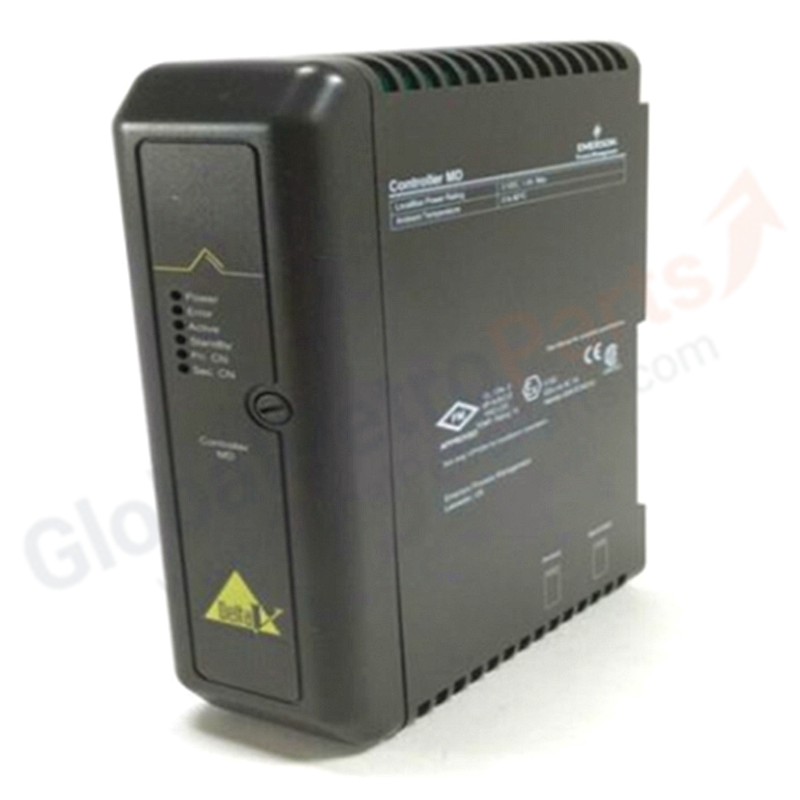

Emerson DeltaV KJ2003X1-PW1 Redundant Safety Logic Solver (SLS) Controller Module

Overview

The Emerson KJ2003X1-PW1 is a Redundant Safety Logic Solver (SLS) Controller Module for DeltaV™ distributed control systems. It executes safety interlock logic independently of standard control loops, processing discrete and analog field variables to govern safety-critical final elements.

Data Conflict Note: Sources disagree on the exact classification of KJ2003X1-PW1. Verified industrial suppliers (5GPLC, PLC DCS Pro) consistently identify it as a Redundant SLS Controller Module for safety logic execution. A minority source describes it as a power supply module, and another (CSDN blog) lists analog output parameters that do not align with the SLS controller description. The specifications below reflect the dominant and functionally detailed classification.

Technical Specifications

• Manufacturer: Emerson
• Model: KJ2003X1-PW1
• Type: Redundant Safety Logic Solver (SLS) Controller Module
• Subsystem Class: Redundant SLS
• Redundancy: 1:1 hardware redundancy with synchronized failover
• Failover Delay: Zero-millisecond tracking delay via dedicated hardware sync line
• Dimensions: ~30 × 20 × 20 cm
• Weight: ~2.0 kg

Environmental & Safety Ratings

• Operating Temperature: −40 °C to +70 °C
• Shock: 10 g, ½ sine wave for 11 ms
• Vibration: 1 mm p-p (2–13.2 Hz); 0.7 g (13.2–150 Hz)
• Relative Humidity: 5 % – 95 % non-condensing
• Airborne Contaminants: ISA-S71.04-1985 Class G3
• Mounting: DIN rail assembly

Key Features

• Dedicated safety logic execution independent of process control loops
• 1:1 redundant architecture with instantaneous failover
• Processes discrete and analog field variables over safety instrumented sub-buses
• Continuous channel-to-channel isolation metrics protect against voltage spikes and ground loops
• Supports online hot-swap in redundant configuration without tripping final elements

FAQ

Q: What does SLS stand for?
A: Safety Logic Solver. It is the dedicated processor that executes safety interlock equations and drives safety outputs.

Q: How fast is the redundant failover?
A: The module uses a dedicated hardware synchronization line to replicate runtime registers, enabling failover with zero-millisecond data tracking delay.

Q: Can I replace a faulted card while the system is running?
A: Yes. In a redundant pair, the faulted card can be hot-swapped while the remaining partner continues active safety execution without shifting final elements to a tripped state.

Installation Guidelines

1. Install the module pair in a redundant-capable DeltaV safety chassis.
2. Connect safety instrumented sub-bus cabling to both primary and partner modules.
3. Verify the hardware sync link is firmly seated between the redundant pair.
4. Commission the safety logic offline before energizing field outputs.

Selection Tips

• Choose KJ2003X1-PW1 for SIL-rated safety loops requiring redundant logic solvers.
• Always deploy as a redundant pair; single-module operation is not recommended for safety applications.
• Verify your DeltaV safety chassis supports SLS module mounting and sync-link routing.
