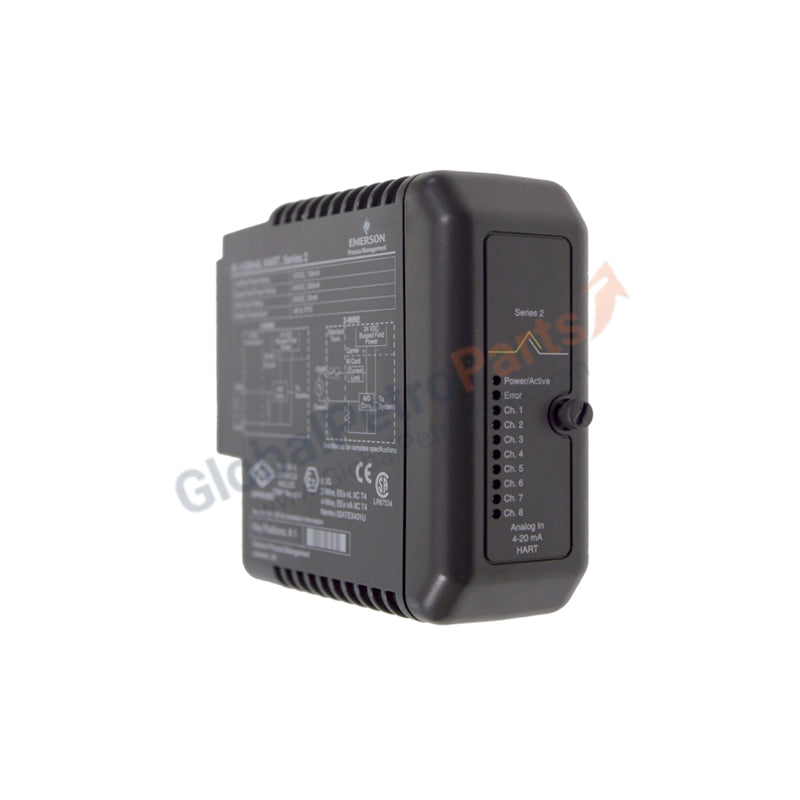

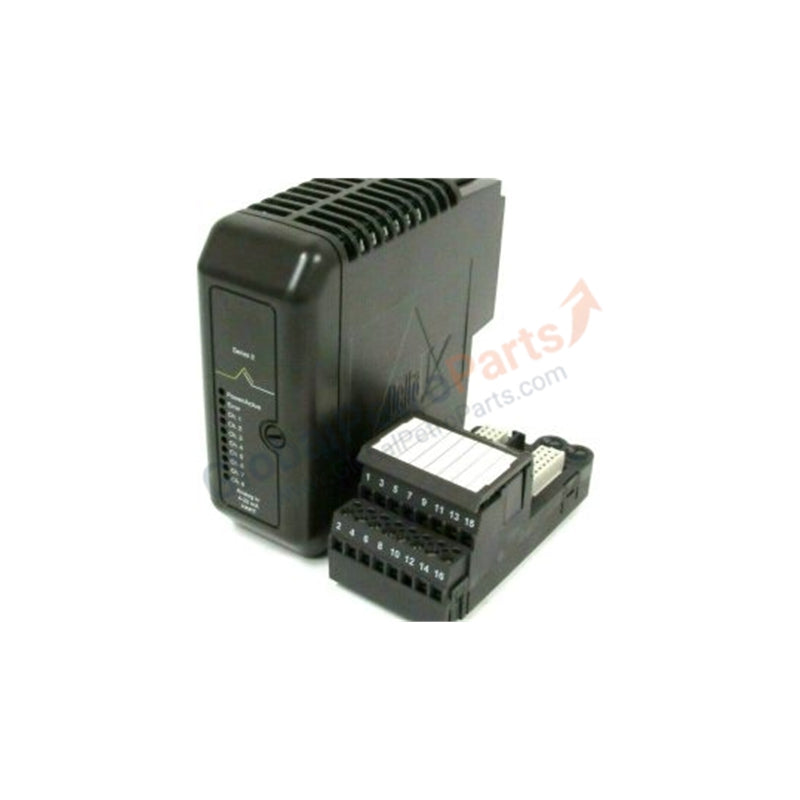

Emerson DeltaV KJ3222X1-BA1 Series 2 HART Analog Input Module

Emerson DeltaV KJ3222X1-BA1 8-Channel 4-20mA HART Analog Input Card

The KJ3222X1-BA1 (P/N: 12P2532X092) is a high-performance Analog Input (AI) module specifically engineered for the Emerson DeltaV Series 2 I/O subsystem. This module provides eight channels of high-accuracy signal acquisition, designed to interface with 4-20 mA field transmitters. A critical feature of the KJ3222X1-BA1 is its integrated HART (Highway Addressable Remote Transducer) support, which enables the DeltaV system to communicate with "smart" field devices for advanced diagnostics, configuration, and secondary process variables without additional hardware.

Detailed Technical Specifications

The technical data provided below corrects common misinformation regarding this module's channel count and signal type. The KJ3222X1-BA1 (P/N: 12P2532X092) is an 8-channel analog card, not a 16-channel digital card.

• Manufacturer: Emerson (DeltaV)

• Model Number: KJ3222X1-BA1

• Part Number: 12P2532X092

• Series: DeltaV M-Series / Series 2

• Module Type: Analog Input (AI) with HART support

• Input Channels: 8 Isolated Channels

• Signal Range: 4–20 mA DC (Standard current loop)

• A/D Resolution: 16-bit (Typical for Series 2 AI modules)

• Isolation: Optical and galvanic isolation between channels and system backplane

• HART Support: Integrated HART pass-through (Revision 5, 6, and 7 compatibility)

• Local Bus Power: 12 VDC at 150 mA (typical)

• Field Circuit Power: 24 VDC (supplied via I/O carrier)

• Operating Temperature: -40 °C to +70 °C

• Vibration Resistance: 1 mm peak-to-peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz

• Airborne Contaminants: ISA-S71.04-1985 Class G3 (Conformal Coated)

• Dimensions: 130 x 40 x 120 mm

• Weight: 0.18 kg (0.40 lbs)
