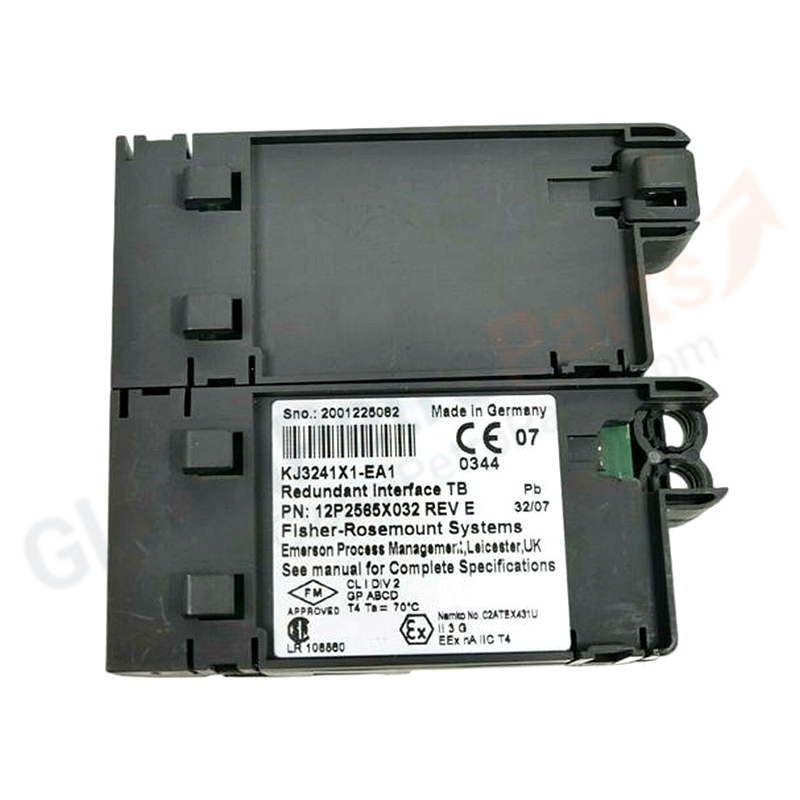

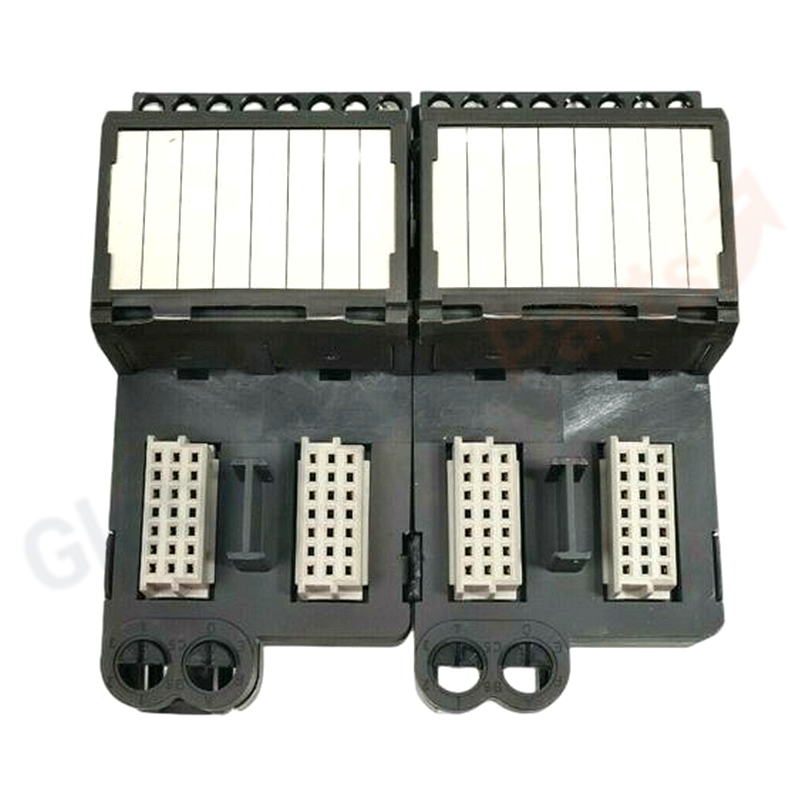

Emerson DeltaV KJ3241X1-EA1 Redundant Serial Interface Terminal Block

Overview

The Emerson KJ3241X1-EA1 is a Redundant Serial Interface Terminal Block for DeltaV™ distributed control systems. It supports RS-232 and RS-485 communication protocols with dual-channel redundancy, ensuring uninterrupted serial data flow in critical industrial applications.

Technical Specifications

• Manufacturer: Emerson
• Model: KJ3241X1-EA1
• Type: Redundant Serial Interface Terminal Block
• Communication Protocol: RS-232 / RS-485
• Voltage Rating: 35 VDC
• Max Current: 1 A
• Weight: 0.45 – 1.0 kg

Environmental & Safety Ratings

• Operating Temperature: −40 °C to +70 °C
• Shock: 10 g, ½ sine wave for 11 ms
• Vibration: 1 mm p-p (2–13.2 Hz); 0.7 g (13.2–150 Hz)
• Relative Humidity: 5 % – 95 % non-condensing
• Airborne Contaminants: ISA-S71.04-1985 Class G3
• IP Rating: IP20

Key Features

• Dual-channel redundancy with automatic failover
• Supports both RS-232 and RS-485 serial standards
• Built-in diagnostics monitor communication health and fault status
• Modular design enables quick replacement and minimal downtime

FAQ

Q: What does the redundant design protect against?
A: If the primary serial channel fails, the backup channel assumes communication instantly, preventing data loss or control interruption.

Q: Is this compatible with Modbus RTU?
A: Yes, RS-485 mode supports Modbus RTU and similar master-slave protocols common in process automation.

Q: Can I hot-swap this terminal block?
A: Field power and serial cabling must be de-energized before removal or insertion.

Installation Guidelines

1. Set the rotary key position to match the serial interface card.
2. Connect primary and backup serial cables to the redundant terminals.
3. Ensure shielded twisted-pair cabling is used for RS-485 runs.
4. Verify termination resistors are installed at the end of long RS-485 networks.

Selection Tips

• Choose KJ3241X1-EA1 for serial device integration where communication uptime is critical.
• Verify your serial interface card requires the EA1 terminal block key position.
• For long-distance RS-485 networks, confirm baud rate vs. cable length compatibility.
