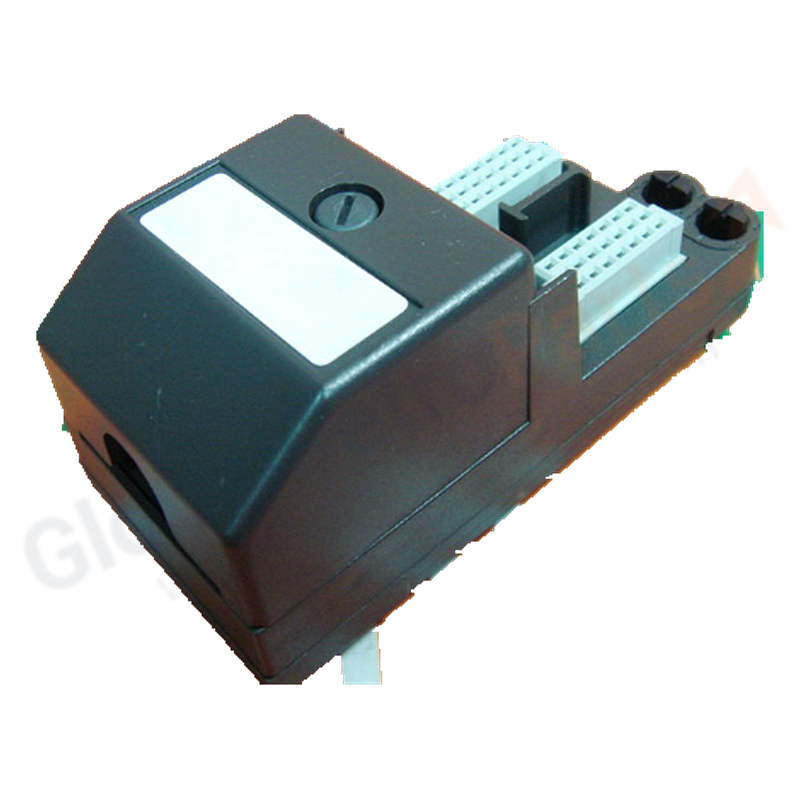

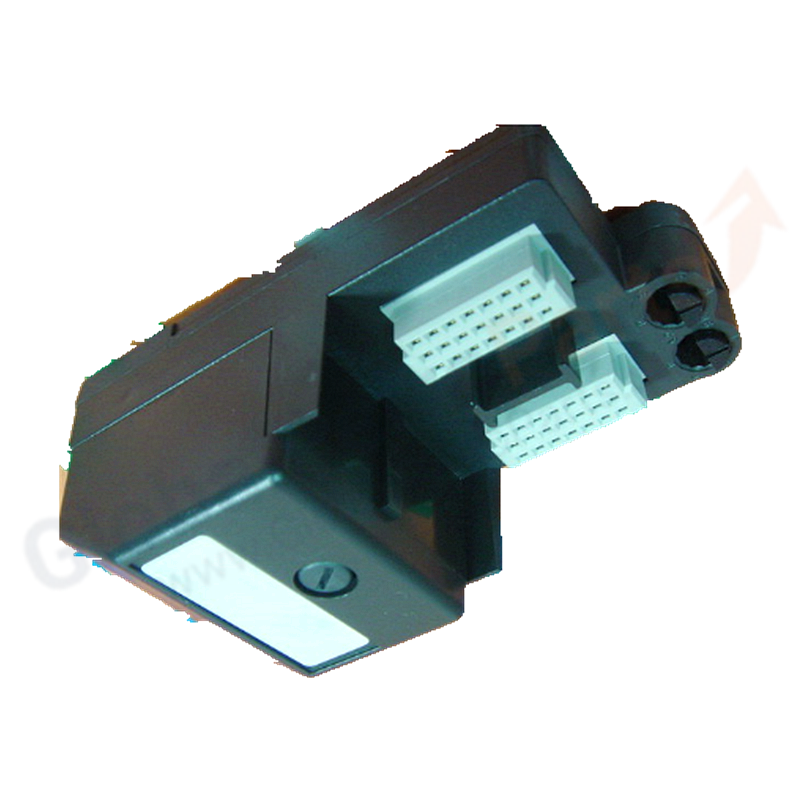

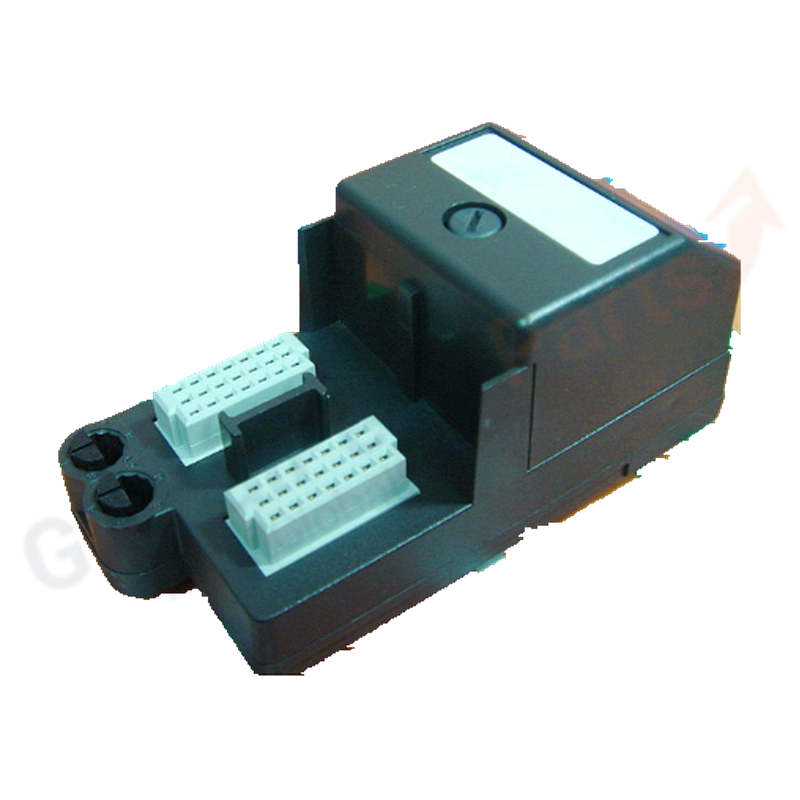

Emerson DeltaV KJ4001X1-CF1 Mass Terminal Block

Overview

The Emerson KJ4001X1-CF1 is a 24-Pin Mass Terminal Block designed for DeltaV™ Electronic Marshalling and distributed control systems. It provides high-density wiring termination in a compact footprint, certified for hazardous-area operation.

Technical Specifications

• Manufacturer: Emerson
• Model: KJ4001X1-CF1
• Type: 24-Pin Mass Terminal Block
• Input Power Rating: 30 VDC @ 1 A per cable
• Weight: 0.55 kg

Environmental & Safety Ratings

• Operating Temperature: −40 °C to +70 °C
• Shock: 10 g, ½ sine wave for 11 ms
• Vibration: 1 mm p-p (2–13.2 Hz); 0.7 g (13.2–150 Hz)
• Relative Humidity: 5 % – 95 % non-condensing
• Airborne Contaminants: ISA-S71.04-1985 Class G3
• Hazardous Area: ATEX certified for explosive atmospheres
• IP Rating: IP20

Key Features

• 24-pin mass termination for high-density field wiring
• Compact design reduces cabinet space requirements
• No user-serviceable parts—maintenance-free operation
• Compatible with DeltaV Electronic Marshalling architecture

FAQ

Q: What is a “mass terminal block”?
A: It is a high-density termination assembly that consolidates multiple field wires into a single connector interface, simplifying wiring and reducing installation time.

Q: Is this compatible with standard I/O cards?
A: Yes, when matched to the correct I/O card via the keying system and used within the Electronic Marshalling framework.

Q: Can I install this with power on?
A: No. De-energize system and field power before removal or insertion.

Installation Guidelines

1. Verify the rotary key position matches the I/O card.
2. Slide the terminal block onto the carrier until fully latched.
3. Route field cables through the cabinet gland and terminate per pinout diagram.
4. Torque screws to specification to prevent loosening under vibration.

Selection Tips

• Use KJ4001X1-CF1 when high-density 24-pin termination is required.
• Confirm your I/O card calls for the CF1 mass terminal block.
• For hazardous locations, verify ATEX markings on the product label.
