Emerson DeltaV KJ4002X1-BF3 0.8-meter, 44-pin Extender Cable

Overview

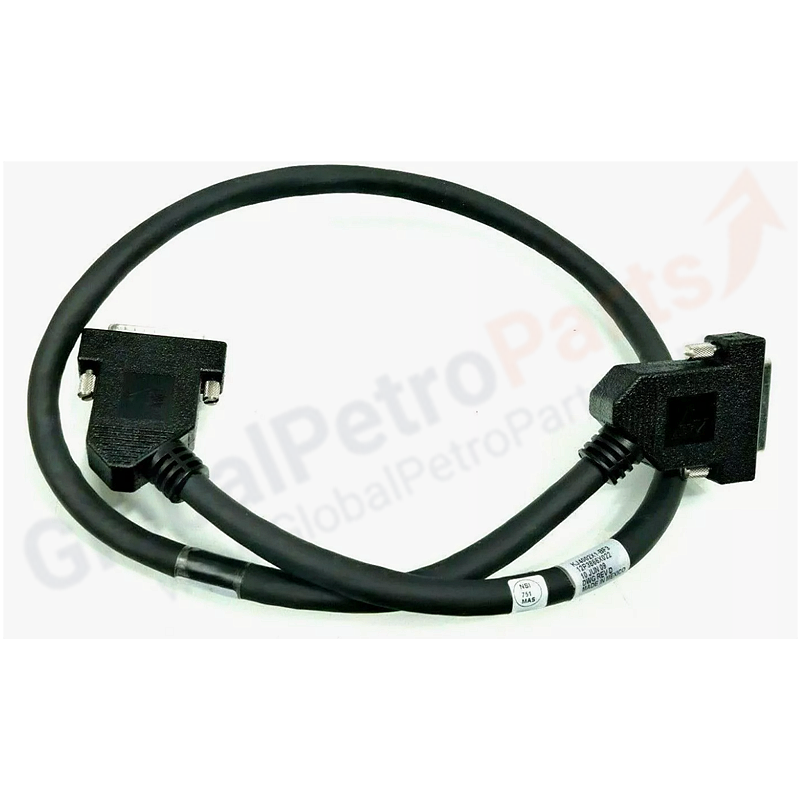

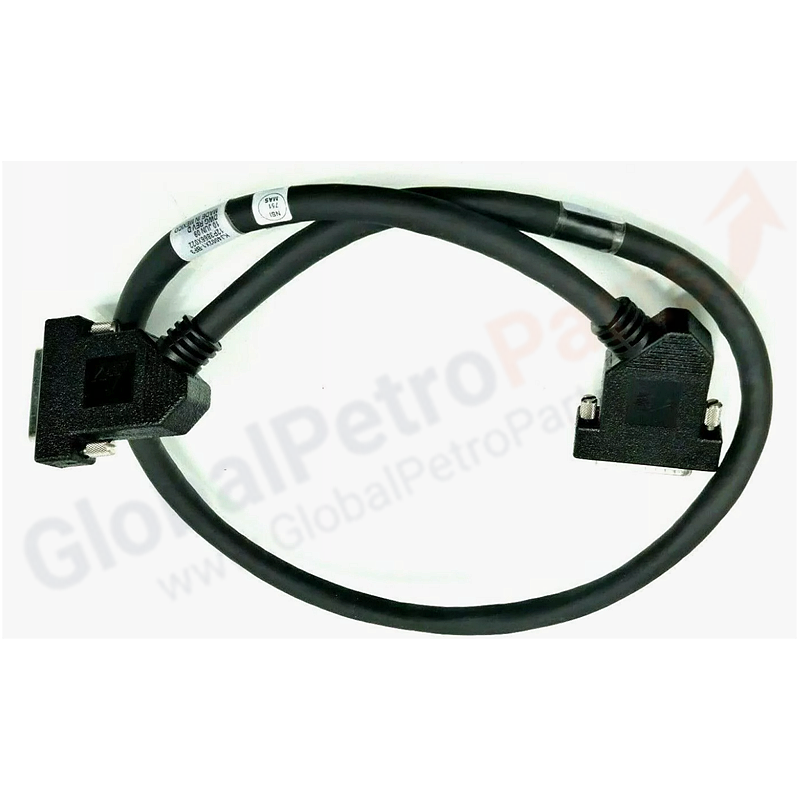

The Emerson KJ4002X1-BF3 is a Bottom Extender Cable Assembly for DeltaV™ distributed control systems. It links horizontal I/O carriers via the LocalBus, enabling flexible cabinet layouts while maintaining reliable signal transmission and power distribution.

Technical Specifications

• Manufacturer: Emerson
• Model: KJ4002X1-BF3
• Type: Bottom Extender Cable Assembly
• Cable Length: 0.8 meters (fixed)
• Connector Type: 44-pin DeltaV-compatible D-type connector (male-to-female)
• LocalBus Circuit Power: 12.6 VDC at 15 A
• Contact Plating: Gold-plated
• Weight: 0.1 kg

Environmental & Safety Ratings

• Operating Temperature: −40 °C to +70 °C
• Storage Temperature: −40 °C to +85 °C
• Shock: 10 g, ½ sine wave for 11 ms
• Vibration: 1 mm p-p (5–16 Hz); 0.5 g (16–150 Hz)
• Relative Humidity: 5 % – 95 % non-condensing
• Airborne Contaminants: ISA-S71.04-1985 Class G3
• IP Rating: IP20

Key Features

• Fixed 0.8 m length for standardized carrier spacing
• Gold-plated contacts prevent oxidation and ensure low-resistance connections
• Supports 15 A LocalBus current for fully loaded carriers
• Rugged construction for harsh industrial environments

FAQ

Q: Can I cut or extend this cable?
A: No. The 0.8 m length is fixed. Do not attempt to modify the cable assembly.

Q: Can I disconnect this while the system is running?
A: No. Disconnecting the LocalBus extender cable during active operation causes immediate downstream I/O dropouts and CPU fault states.

Q: How many cables can I use in one system?
A: The total combined length of carriers and extenders must not exceed 6.5 meters.

Installation Guidelines

1. Position adjacent horizontal carriers within 0.8 m of each other.
2. Align the 44-pin male connector to the female receptacle on the carrier.
3. Press firmly until the connector locks; avoid tight bends or tension on the cable.
4. Secure the cable with strain relief to prevent fatigue at the connector.

Selection Tips

• Order KJ4002X1-BF3 when you need to link two horizontal carriers with a 0.8 m bottom cable.
• Verify carrier spacing in your cabinet drawing before installation.
• For longer runs, use LocalBus extenders (HB1/NB1) rather than multiple cable assemblies.
