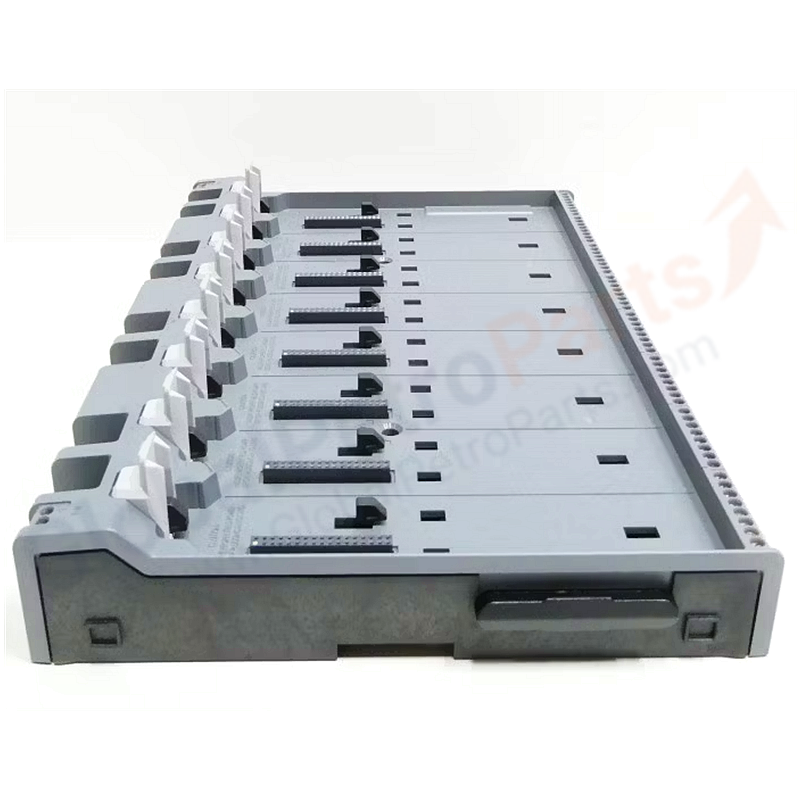

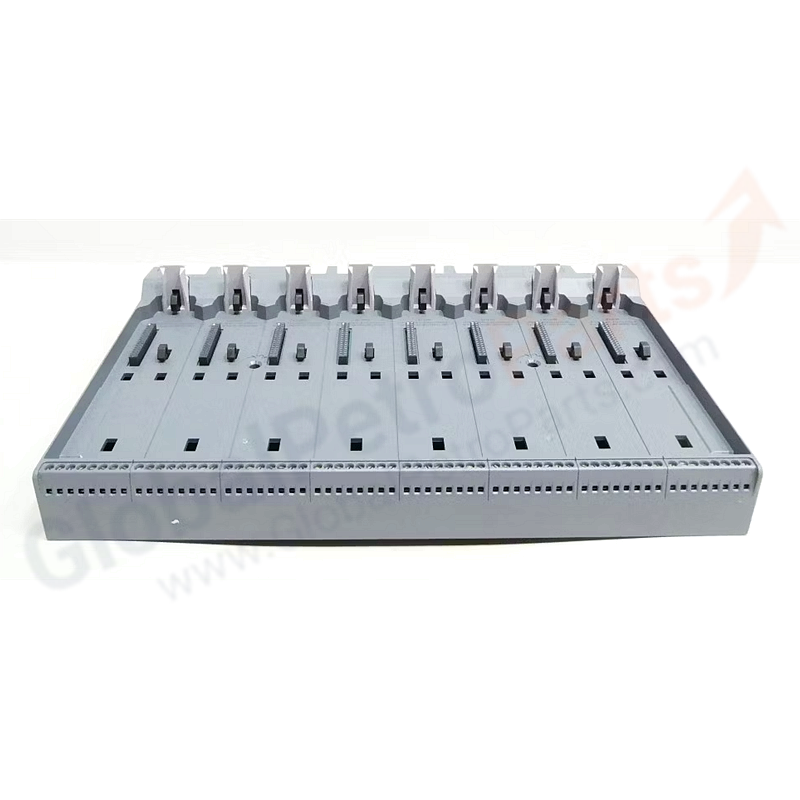

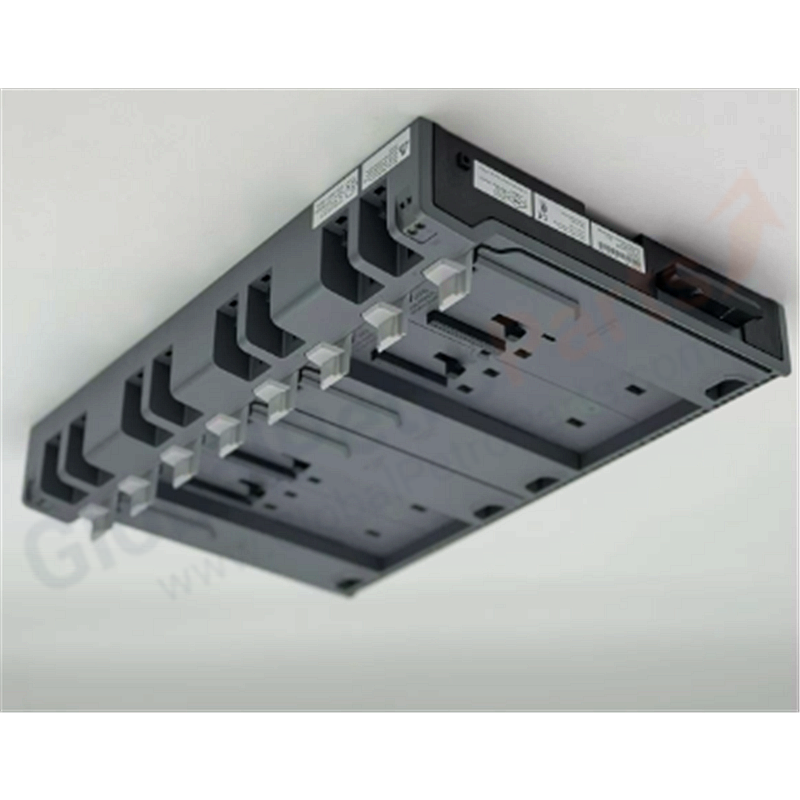

Emerson DeltaV KJ4005X1-BE1 8 Wide I/O Carrier 12P4684

Overview

The Emerson KJ4005X1-BE1 is an 8-wide horizontal I/O carrier for DeltaV™ S-Series distributed control systems. It serves as the structural and electrical backbone that interconnects up to eight I/O modules via a high-current local bus while distributing field power through integrated buss plugs.

Technical Specifications

• Manufacturer: Emerson
• Model: KJ4005X1-BE1
• Also Known As: SE4050E0C0, 12P4684
• Type: 8-Wide Horizontal I/O Carrier
• Slot Capacity: Up to 8 I/O modules
• Local Bus Power: 12 VDC at 15 A maximum
• Field Power per Card: 30 VDC at 3 A (via power buss plugs)
• Power Input: 24 VDC nominal for system feed
• Mounting: T-type DIN rail or panel mount with carrier shield bar
• Weight: 1.5 – 2.0 kg (carrier only)

Environmental & Safety Ratings

• Operating Temperature: −40 °C to +70 °C
• Shock: 10 g, ½ sine wave for 11 ms
• Vibration: 1 mm p-p (2–13.2 Hz); 0.7 g (13.2–150 Hz)
• Relative Humidity: 5 % – 95 % non-condensing
• Airborne Contaminants: ISA-S71.04-1985 Class G3
• IP Rating: IP20 (enclosure recommended)

Key Features

• Modular backplane supports hot-swappable I/O insertion and automatic addressing
• Integrated power buss plugs simplify field power distribution
• Carrier shield bar included for EMI protection
• Diagnostic feedback routes to the controller for module health monitoring

FAQ

Q: How many I/O modules fit on this carrier?
A: The KJ4005X1-BE1 accepts up to eight I/O modules in a single horizontal row.

Q: What is the maximum local bus current?
A: 15 A at 12 VDC, sufficient for a fully loaded carrier.

Q: Can I mix analog and digital I/O on the same carrier?
A: Yes, provided each module is compatible with the S-Series local bus and keying system.

Installation Guidelines

1. Mount the carrier on a T-type DIN rail using the locking clips.
2. Install the carrier shield bar for grounding and EMI protection.
3. Insert power buss plugs into the field power slots.
4. Slide I/O modules into the slots from left to right, ensuring each latches securely.

Selection Tips

• Order KJ4005X1-BE1 for standard S-Series I/O expansion requiring eight slots.
• Verify total local bus current draw of all eight modules does not exceed 15 A.
• For redundant power architectures, use carriers with dual power feed points.
