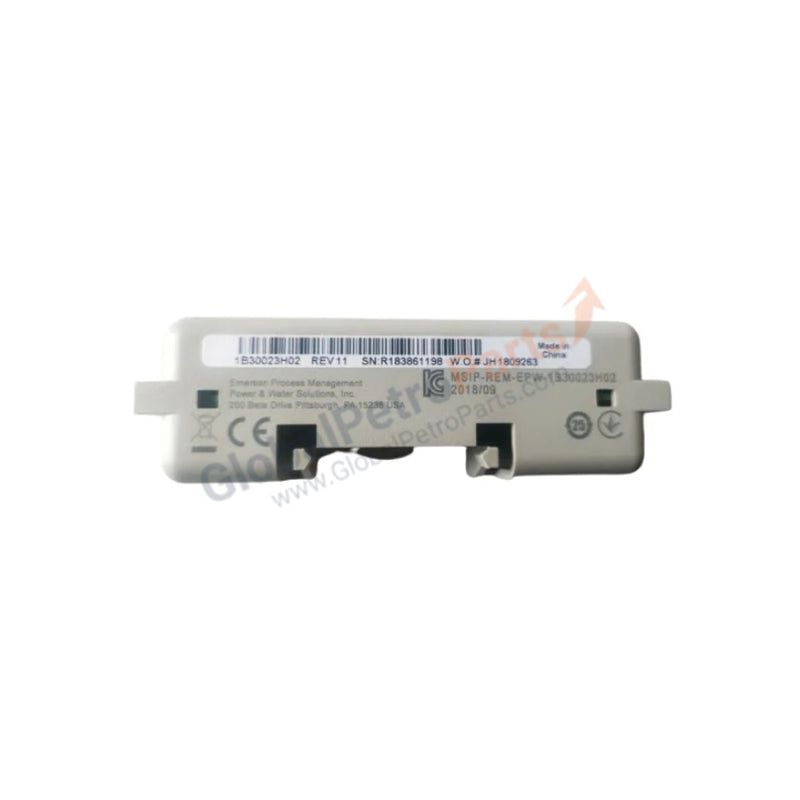

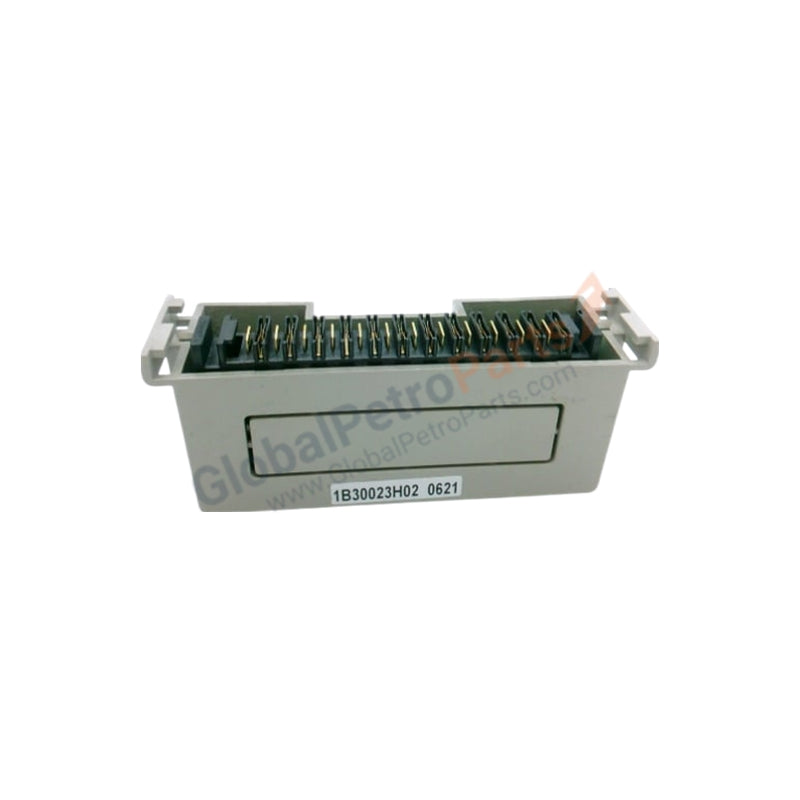

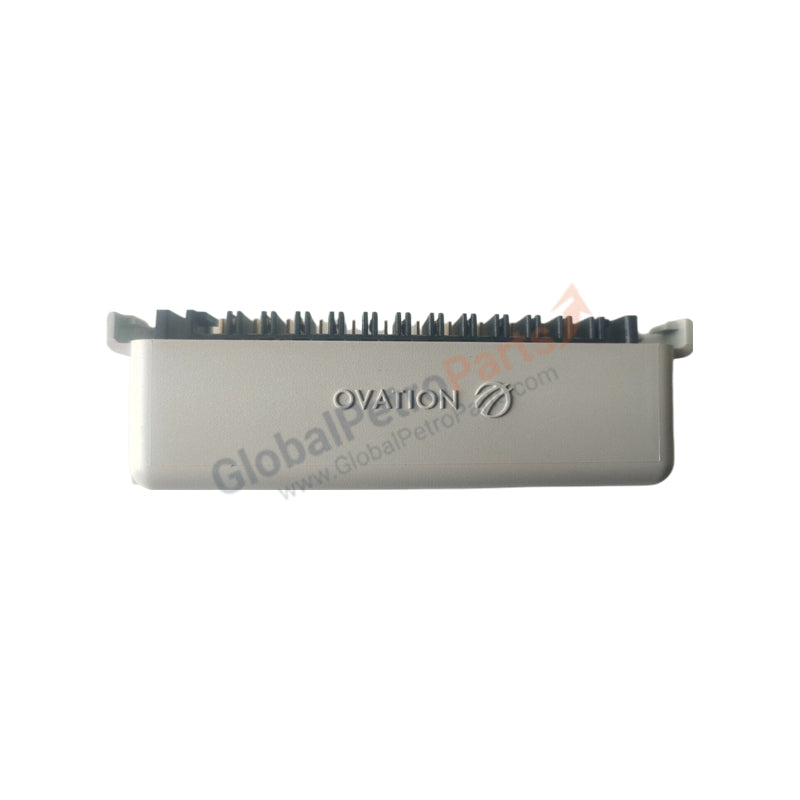

Emerson Ovation 1B30023H02 | 1B30023H02 I/O Bus Terminator

Emerson Ovation 1B30023H02 Input/Output Bus Terminator Module

The 1B30023H02 (Part # 1B30023H02) is an essential passive electronics module within the Emerson Ovation™ Distributed Control System (DCS). Specifically designed for the Ovation I/O subsystem, this bus terminator is required to maintain signal integrity across the I/O backplane or extended branch. By providing proper impedance matching, the 1B30023H02 prevents signal reflections and electrical noise from corrupting data transmission between field modules and the Ovation controller. It is a critical hardware component for ensuring the deterministic performance required in high-availability environments like power plants and water treatment facilities.

Detailed Technical Specifications

The following technical data defines the physical and operational parameters for the 1B30023H02 (Part # 1B30023H02).

• Manufacturer: Emerson (Ovation™ Series)

• Model Number: 1B30023H02

• Module Type: Input/Output Bus Terminator

• System Compatibility: Emerson Ovation™ DCS I/O Subsystem

• Primary Function: Termination of the I/O bus to prevent signal reflection

• Network Role: Ensures high-speed communication stability between controller and I/O nodes

• Signal Support: Analog and Digital I/O Bus Architectures

• Electrical Interface: Standard Ovation plug-in connector

• Operating Temperature: 0°C to +60°C

• Storage Temperature: –40°C to +85°C

• Relative Humidity: 5–95% non-condensing

• Vibration/Shock Resistance: Industrial-grade for plant floor environments

• Dimensions: Standard Ovation I/O form factor

• Weight: 0.059 kg (0.13 lbs)

• Status: Discontinued by Manufacturer (Available as certified replacement)
