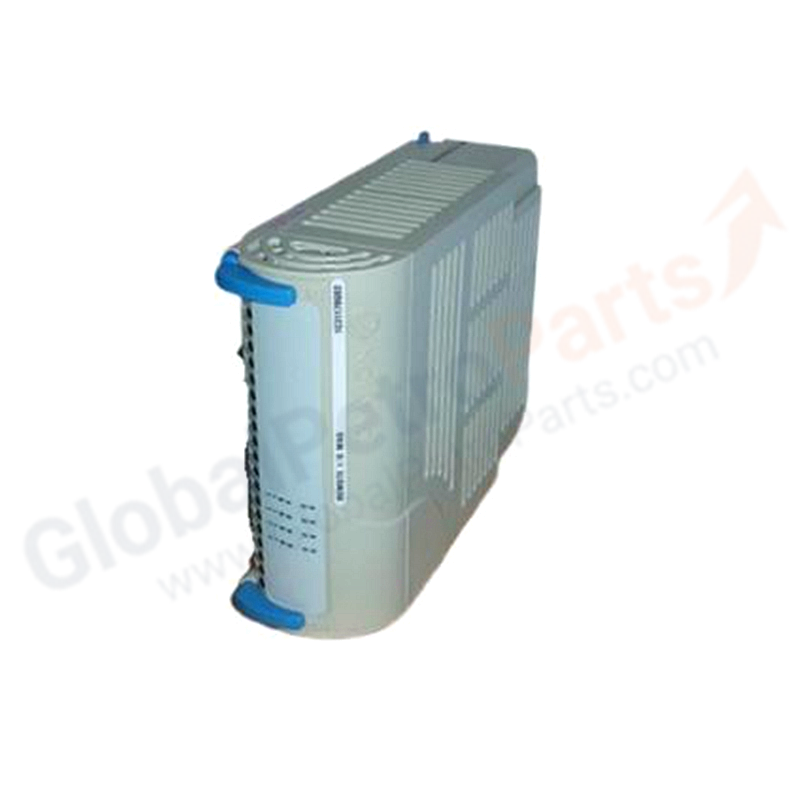

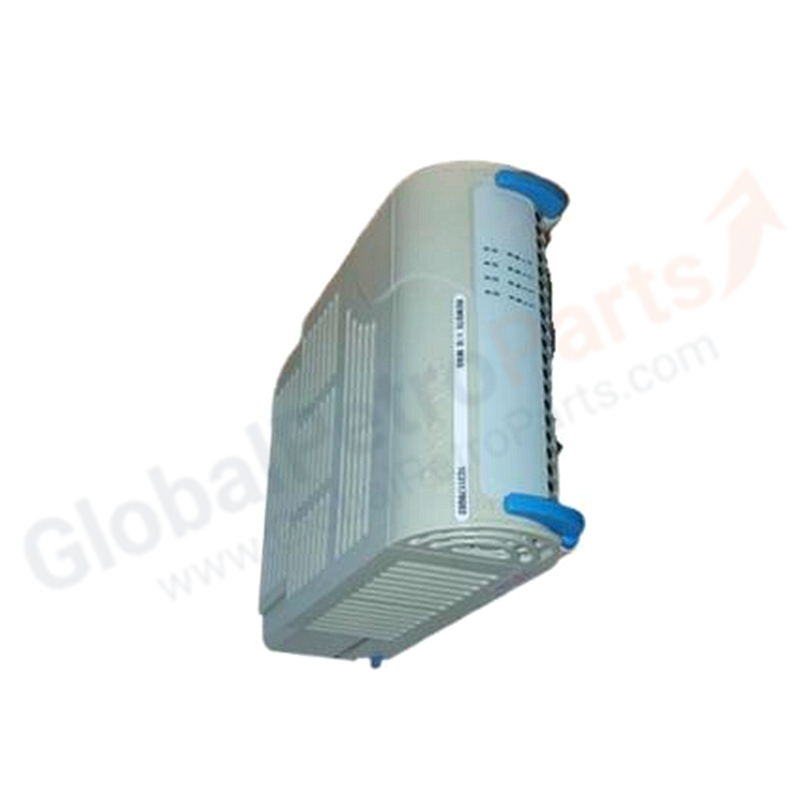

Emerson Ovation 1C31192G01 Speed Detector Personality Module

Overview

The Emerson 1C31192G01 is a Speed Detector Personality Module for the Ovation™ distributed control system. It pairs with the 1C31189G01 Speed Detector Electronics Module to configure the speed input channels for specific sensor types and signal conditioning requirements.

Technical Specifications

• Manufacturer: Emerson (Westinghouse)
• Model: 1C31192G01
• Type: Speed Detector Personality Module
• Input Voltage Range: DC 12 V to 24 V
• Output Signal: 4–20 mA
• Speed Detection Range: 0 to 10,000 RPM
• Resolution: 0.01 RPM
• Response Time: < 10 ms
• Power Consumption: ≤ 1 W

Environmental & Safety Ratings

• Operating Temperature: −40 °C to +70 °C
• Communication Protocol: Modbus RTU

Key Features

• Configures 1C31189G01 electronics module for specific speed sensor types
• High-resolution speed detection (0.01 RPM)
• Fast response time for overspeed protection applications
• Low power consumption minimizes heat generation

FAQ

Q: Do I need both 1C31189G01 and 1C31192G01?
A: Yes. The 1C31189G01 is the electronics module; the 1C31192G01 is the personality module that configures it for your specific sensor type.

Q: What is the maximum RPM this can measure?
A: The module supports speed detection up to 10,000 RPM with 0.01 RPM resolution.

Installation Guidelines

1. Insert the 1C31192G01 personality module into the 1C31189G01 electronics module.
2. Install the combined assembly into the Ovation I/O chassis.
3. Configure sensor type and scaling via Ovation Workbench.

Selection Tips

• Order 1C31192G01 as the companion personality module for 1C31189G01 speed detection.
• Verify sensor output signal type (4–20 mA, pulse, etc.) matches the personality module configuration.
