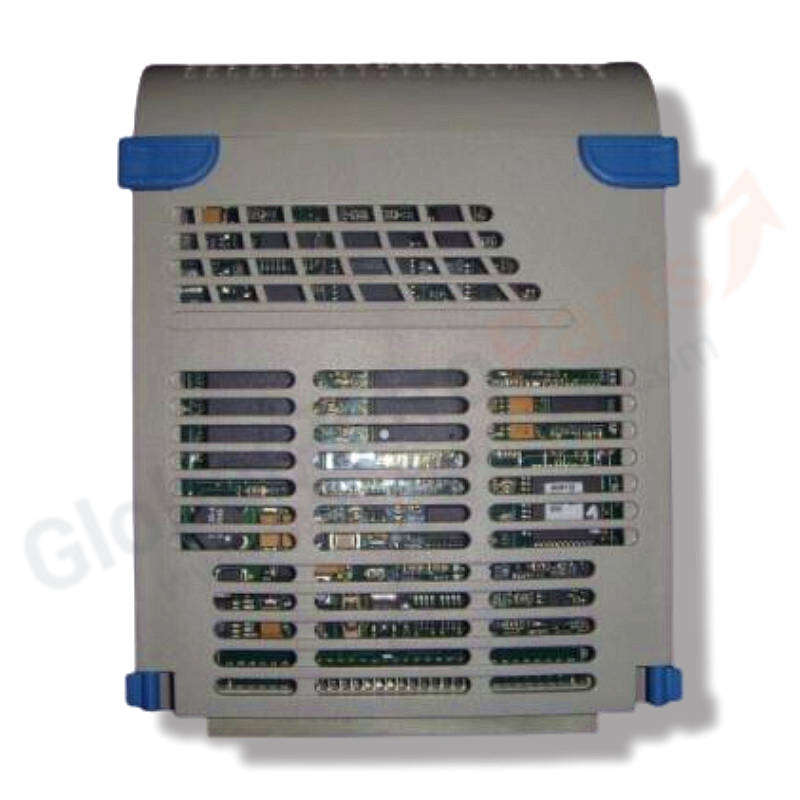

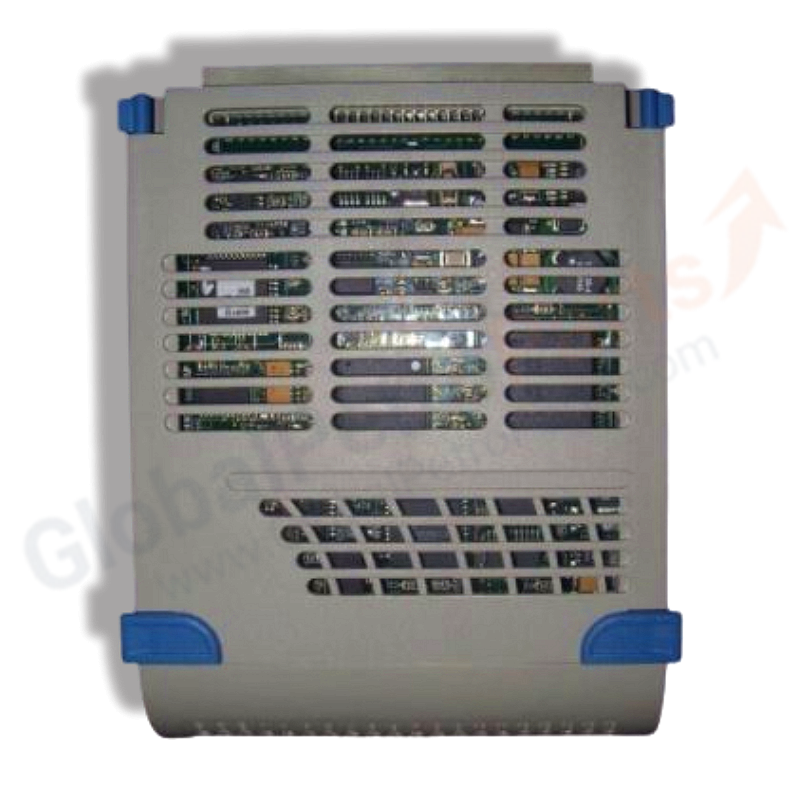

Emerson Ovation 1C31199G01 Servo Driver Module

Emerson Ovation 1C31199G01 – Servo Driver Electronics Module

The Emerson Ovation 1C31199G01 is a Servo Driver Electronics Module within the Ovation DCS. It provides the electronic interface between the Ovation controller and servo drive systems, enabling precise position, speed, and torque control for servomechanisms in turbines, pumps, and rotating equipment.

• Module Type: Servo Driver Electronics Module
• Function: High-precision servo control with built-in readback monitoring
• Output: 1 kHz LVT output at 19 VPP for control feedback
• Channels: 6 independent output channels
• Isolation: 1000 VAC/DC channel-to-channel and channel-to-logic
• Noise Rejection: 60 dB normal-mode at 50/60 Hz, 120 dB common-mode at DC and powerline frequency
• Main Power: 2.5 W, 3.38 W maximum
• Auxiliary Power: 24 VDC, supporting 8 inputs at 20 mA each (3.84 W)
• Operating Temperature: 0°C to +60°C
• Storage Temperature: −40°C to +85°C
• Humidity: 0–95% non-condensing

Technical Specifications

FAQ

1. Difference From 1C31201G01
   1C31199G01 is the electronics module (signal processing). 1C31201G01 is the personality module (configuration/interface). They function as a matched pair in the servo drive loop.
2. Standard VFD Control
   This module is designed for servo drives requiring LVT feedback. For standard VFD 4–20 mA control, use analog output modules.
3. Servo Loop Capacity
   One module handles 6 independent servo channels depending on personality configuration.
4. Hot-Swap Capability
   Hot-swap capability depends on the I/O base revision. Consult the Ovation hardware manual for the specific chassis model.

Installation Guide

• Step 1: Install 1C31199G01 into the servo drive slot of the Ovation I/O base.
• Step 2: Install the matching personality module (1C31201G01) if required for the servo type.
• Step 3: Connect LVT feedback cables to channel inputs. Connect servo drive command outputs to the drive amplifier.
• Step 4: Configure servo loop parameters in Ovation Control Builder: gain, deadband, velocity feedforward, and position limits.
• Step 5: Commission with small step changes. Verify position feedback linearity and response time (50 ms for small moves).

Selection Tips

Select 1C31199G01 for precision servo control in power generation (turbine valve servos) or large industrial drives. Always pair with the correct personality module (1C31201G01 for standard servos). Verify the servo drive accepts 1 kHz LVT command signals. For variable-speed motor control, analog output modules are more cost-effective.
