Emerson Ovation 5X00059G01 Input Analog Module 0.5 Amp125 V Acrs-232 Serial Port

Product Summary

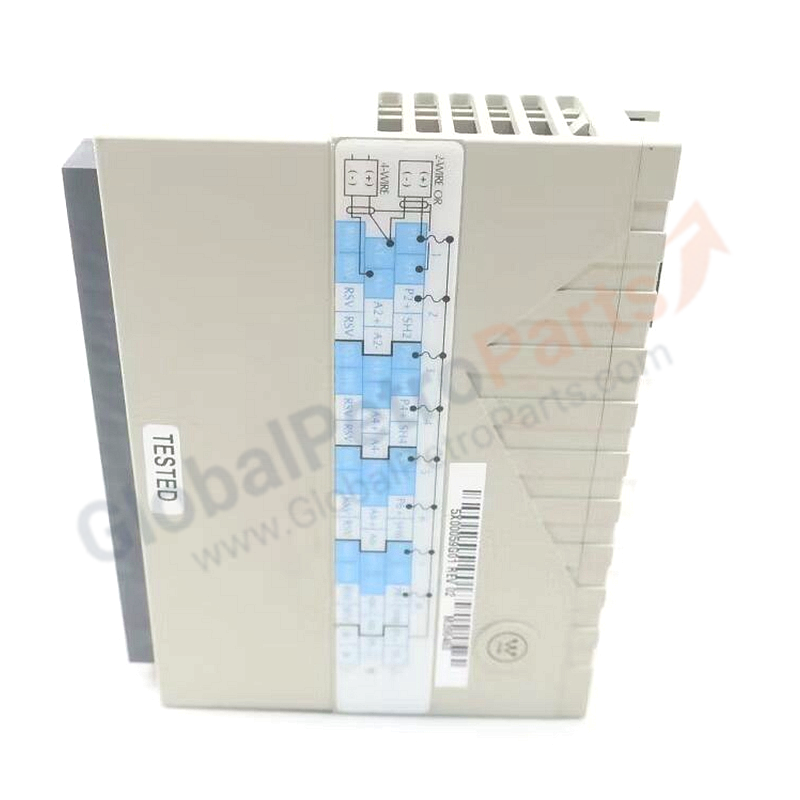

The Emerson Ovation 5X00059G01 is a HART Analog Input Module for the Emerson Ovation distributed control system (DCS). It provides 8 channels of 4-20mA analog input with integrated HART digital communication for smart transmitter configuration and diagnostics. Each channel features a user-replaceable fuse to protect the auxiliary power supply from field-side faults.

Core Specifications

• Model Number: 5X00059G01
• Type: HART Analog Input Module
• Channels: 8 analog inputs
• Input Signal: 4–20 mA DC
• Input Types: Two-wire loop-powered transmitters; non-fused active-source (four-wire isolated current output)
• Fuse: User-replaceable, one per channel
• Resolution: 12–16 bit (per configuration)
• Accuracy: ±0.1% of full scale
• HART Protocol: HART 5/6/7 compatible
• Input Impedance: 250–400 Ω
• Current: 0.5 A
• Voltage: 125 V AC
• Serial Port: RS-232
• Power Supply: 12–36 V DC
• Dimensions: 100 × 60–65 × 22–30 mm (varies by source)
• Weight: 0.12–3 lbs (varies by source)
• Manufacturer: Emerson (formerly Westinghouse)

Key Features

• 8-channel HART analog input for smart transmitter integration
• User-replaceable fuse per channel protects auxiliary power supply
• HART digital communication for device configuration and diagnostics
• Supports two-wire loop-powered and four-wire active-source transmitters
• RS-232 serial port for local configuration and diagnostics

Environmental Limits

• Operating Temperature: -40°C to +70°C (-40°F to 158°F)
• Storage Temperature: -50°C to +85°C (-58°F to 185°F)
• Humidity: 5% to 95% RH, non-condensing

Frequently Asked Questions

What is the 5X00059G01 used for?

It is an 8-channel HART analog input module for Emerson Ovation DCS, acquiring 4-20mA signals from smart field transmitters with per-channel fuse protection.

What does the user-replaceable fuse do?

Each channel has a user-replaceable fuse that protects the auxiliary power supply from short circuits or wiring faults on the field side.

What transmitter types are supported?

Two-wire loop-powered transmitters and four-wire active-source transmitters with isolated current output.

What is the difference between 5X00059G01 and 5X00058G01?

The 5X00059G01 is a later revision (Rev 03) of the HART analog input module. The 5X00058G01 is an earlier revision. Both have similar functionality with potential firmware or hardware improvements in the -59 revision.

Installation Guide

Safety Precautions

• De-energize the Ovation rack before installation
• Use proper ESD protection when handling the module
• Verify field device signal type and fuse rating before wiring

Step-by-Step Procedure

1. Power down the Ovation I/O rack
2. Align the module with the rack slot and insert firmly
3. Secure the module retaining clips
4. Connect 4-20mA field wiring to the terminal base unit
5. Install appropriate fuses per channel (if not pre-installed)
6. Power up and verify module status LEDs
7. Configure HART device parameters via Ovation engineering station

Selection Tips

• Verify HART protocol version compatibility with your field devices
• Ensure spare fuses are stocked for maintenance
• For high-speed sampling requirements, consider 5X00070G01 instead
• For enhanced diagnostics and wire-break detection, consider 5X00106G01

Related Part Numbers

• 5X00058G01 — HART Analog Input Module (earlier revision)
• 5X00059G01 — HART Analog Input Module Rev 03 (this part)
• 5X00070G01 — 4-20mA Analog Input Module, High Speed
• 5X00106G01 — HART High-Performance Analog Input Module
• 5X00109G02 — PMOD Analog Input Module, HART High Performance with Current Limiting
