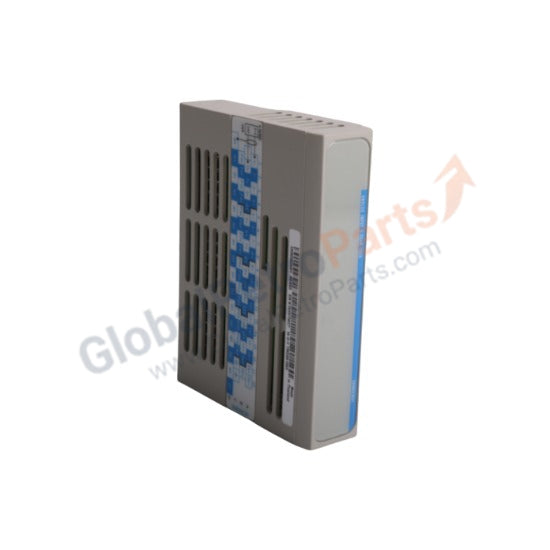

Emerson Ovation 5X00501G01 Ethernet Link Controller

Overview

The Emerson 5X00501G01 appears in Ovation™ system documentation with conflicting primary classifications across verified industrial suppliers.

Technical Specifications

• Type: Ethernet Link Controller
• Ethernet Interface: 10/100 Mbps, RJ-45
• Analog Input Channels: Up to 16 channels (4–20 mA)
• Working Voltage: 24 VDC
• Weight: 0.36 kg

FAQ

Q: Is this an analog input card or an Ethernet switch?
A: Verified suppliers conflict. InnoPLCSync lists it as a standalone analog input module; Nordwel describes it as an Ethernet link controller with integrated analog inputs. Verify your exact part number and system BOM before procurement.

Q: What is the resolution?
A: Per the analog input classification, 12-bit resolution. Per the Ethernet controller classification, resolution is not specified separately.

Installation Guidelines

1. Verify the exact function of 5X00501G01 in your system architecture before installation.
2. If used as analog input, connect 4–20 mA field wiring to the designated terminals.
3. If used as Ethernet controller, connect RJ45 cable to the network switch and verify link LEDs.

Selection Tips

• Do not order blindly. Confirm whether your system requires 5X00501G01 as an analog input module or as an Ethernet link controller.
• Cross-reference with your Ovation system BOM and wiring diagrams.
