Emerson Ovation 5X00605G01 Analog Input Module

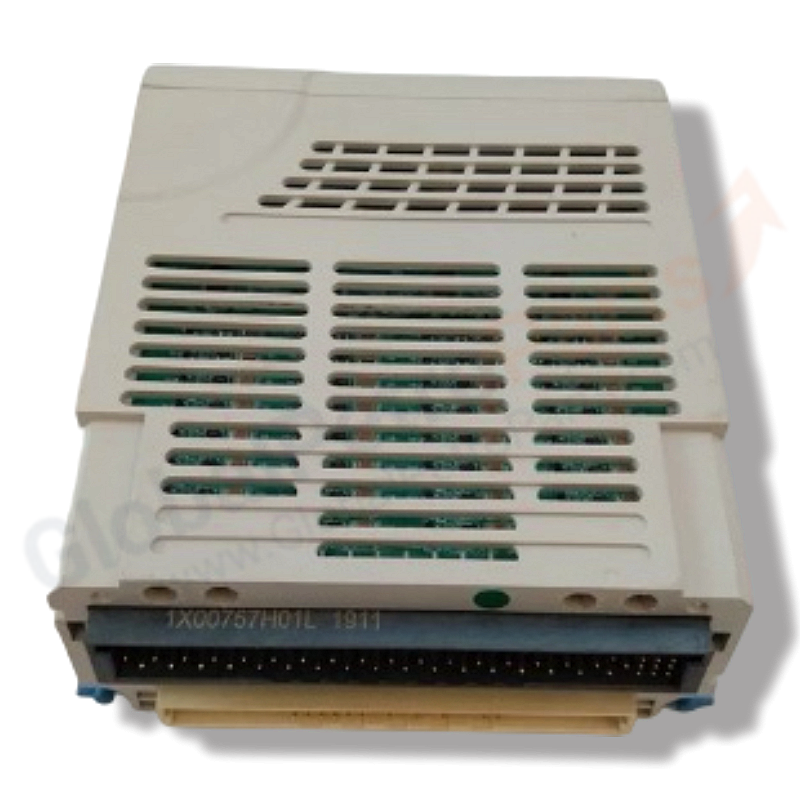

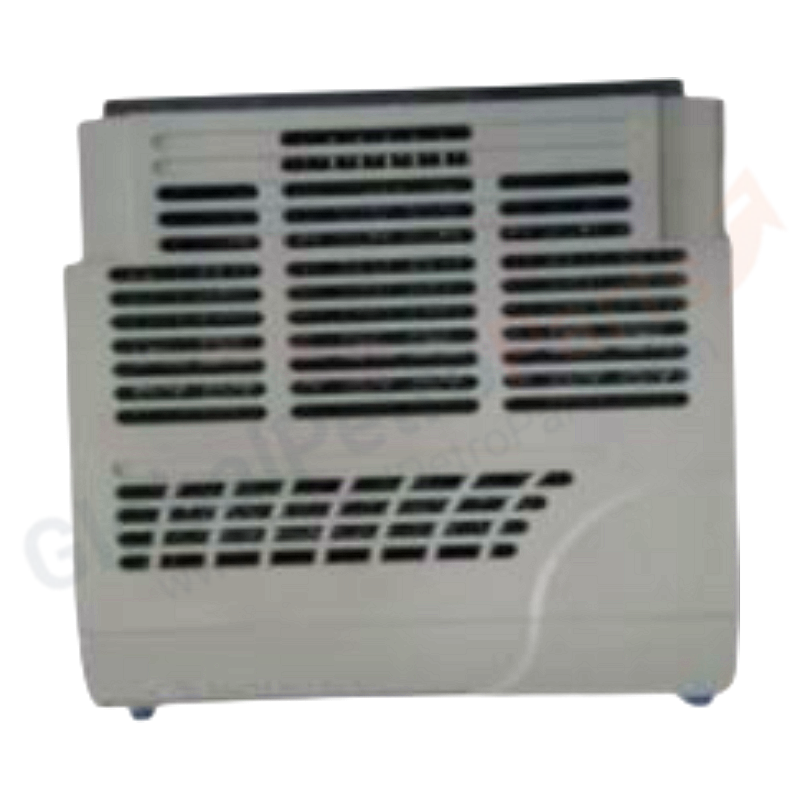

Emerson Ovation 5X00605G01 – 16-Channel Analog Input Module

The Emerson Ovation 5X00605G01 is a 16-channel single-ended analog input module for high-density process signal acquisition in the Ovation DCS. It converts field analog signals into digital data with 16-bit resolution and high noise immunity.

• Channels: 16 single-ended analog inputs
• Input Types: 4–20 mA, 1–5 V, and other standard analog signals
• Resolution: 16-bit A/D conversion
• Accuracy: 0.1% of full scale
• Isolation: 1500 V RMS between channels and system ground
• Update Rate: 10 ms per channel
• Power Requirements: 24 VDC nominal, backplane-fed
• Operating Temperature: −40°C to +70°C
• Storage Temperature: −40°C to +85°C
• Weight: 0.36 kg
• Dimensions: 42 mm × 126 mm × 105 mm
• Compliance: CE, RoHS, UL

Technical Specifications

FAQ

1. OCR1100 Controller Compatibility
   The 5X00605G01 is fully compatible with Ovation OCR1100 and legacy Ovation controller families.
2. 0–10 V Signal Handling
   The standard personality supports 4–20 mA and 1–5 V. For 0–10 V signals, use a signal conditioner or verify personality file availability.
3. Single-Ended vs Differential Inputs
   Single-ended inputs share a common ground reference, suitable for most 4–20 mA loops. Differential inputs (e.g., 5X00606G01) reject common-mode noise for low-level signals.
4. HART Pass-Through
   The 5X00605G01 is a standard analog input module without HART. Use 5X00784G01 for HART analog input requirements.

Installation Guide

• Step 1: Insert the module into the Ovation analog input slot. Ensure chassis keying aligns.
• Step 2: Connect field transmitters. For 4–20 mA, wire + to channel +, − to common. For 1–5 V, connect across channel and ground.
• Step 3: In Ovation Developer Studio, add 5X00605G01, assign 16 channel tags, and select input type per channel.
• Step 4: Configure alarm limits, scaling (EU = engineering units), and filtering for noisy signals.
• Step 5: Perform loop check. Inject 4 mA, 12 mA, and 20 mA. Verify digital readings match expected EU values within 0.1%.

Selection Tips

Choose 5X00605G01 for 16-channel high-density analog input for transmitters and sensors. It is ideal for tank level, pressure, and flow monitoring. For low-level mV signals or thermocouples, select specialized input modules. For HART-enabled transmitters, use 5X00784G01.
