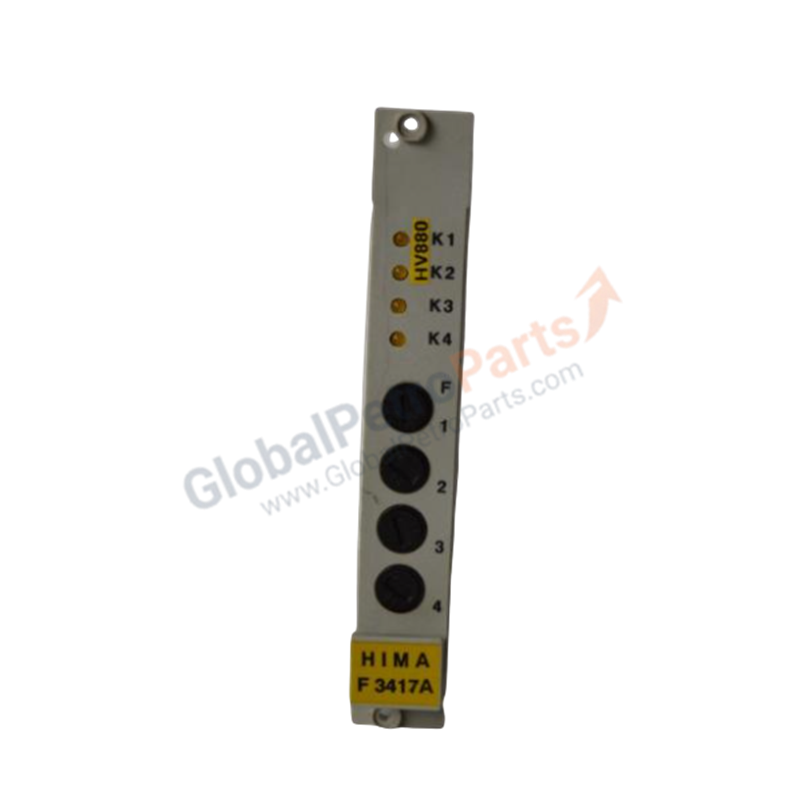

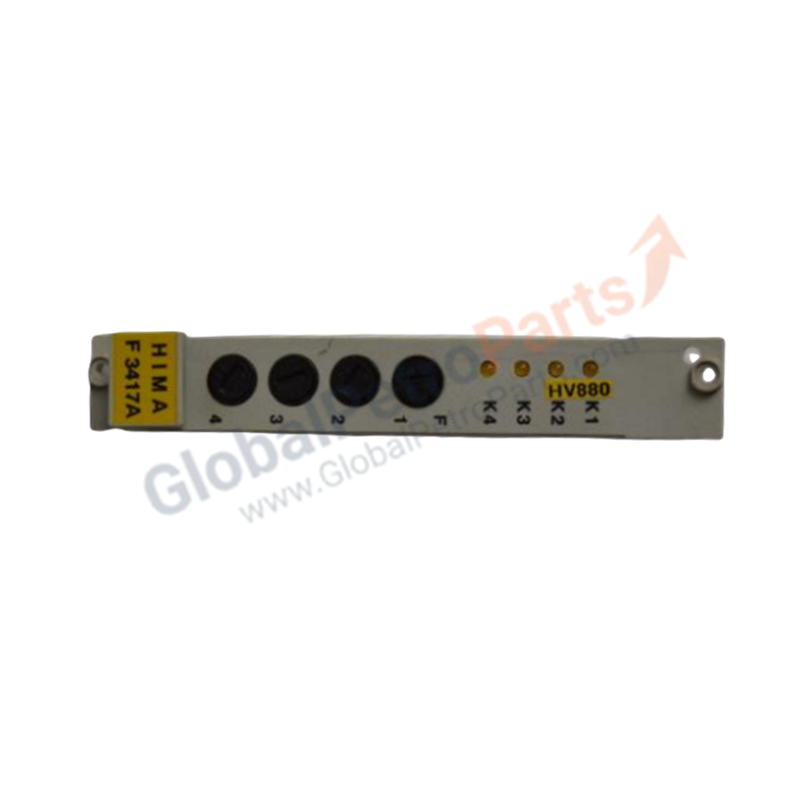

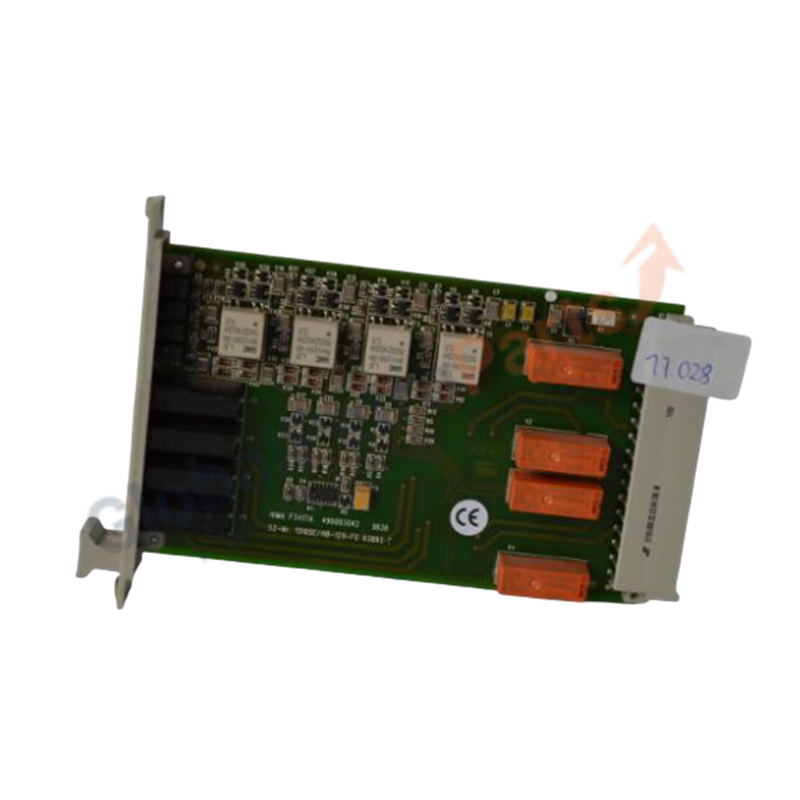

F 3417A | HIMA HIMatrix | 4-Fold Fail-Safe Relay Amplifier

Product Overview

The HIMA F 3417A functions as a high-integrity 4-fold fail-safe relay amplifier within the HIMatrix safety architecture. This module provides critical galvanic isolation and power amplification between the safety controller's logic circuits and field-level inductive loads. By integrating four independent channels, the F 3417A enables the simultaneous control of multiple safety-critical actuators, such as Emergency Shutdown (ESD) valves and motor contactors, while maintaining the highest safety integrity.

Condition: 100% Brand New and Original Factory Sealed.

Technical Specifications

The F 3417A offers a robust mechanical and electrical profile designed for continuous operation in demanding process environments.

• Manufacturer: HIMA Paul Hildebrandt GmbH

• Module Type: 4-Fold Fail-Safe Relay Amplifier

• Origin: Germany

• Dimensions: 3.2 cm x 21.0 cm x 13.3 cm

• Weight: 0.4 kg

• Safety Function: Galvanic isolation and signal amplification

• Configuration: 4 Independent fail-safe channels

• Mounting: Standard HIMA subrack compatible

Engineering Advantages

• Hardware-Based Fail-Safe Logic: The F 3417A utilizes a forced-guided relay architecture. This design ensures that the safety system identifies a welded contact immediately, preventing a "fail-to-danger" scenario and maintaining compliance with SIL 3 requirements.

• Elimination of Signal Noise: The amplifier provides superior galvanic isolation between the sensitive logic bus and the "noisy" field environment. This isolation protects the central CPU from back-EMF spikes generated by large solenoids or contactors during switching cycles.

• Compact High-Density Switching: By packing four fail-safe relay channels into a 3.2 cm wide module, the F 3417A significantly reduces the required DIN rail or rack space. This allows for complex safety logic implementations in constrained control rooms or modular skid packages.

• Low Thermal Signature: Optimized coil management within the relay circuits minimizes heat dissipation. This feature prevents thermal buildup within the subrack, extending the lifespan of the F 3417A and adjacent electronic modules in high-ambient-temperature industrial zones.

FAQs

• Does the F 3417A require an external power supply for the relay coils?

  The module typically draws power from the system bus for logic-side operations, but you must provide the appropriate field-side voltage to the relay contacts to drive your specific actuators. Always consult the HIMA wiring diagram for your specific voltage requirements.

• What is the difference between the F 3417 and the F 3417A?

  The "A" version denotes a hardware revision that often includes improved component longevity or updated manufacturing standards. The F 3417A maintains full backward compatibility with systems originally designed for the F 3417.

• How do I test the functionality of the fail-safe relays?

  The HIMatrix system performs internal diagnostic tests. However, we recommend functional proof-testing during scheduled maintenance intervals by cycling the outputs and verifying the mechanical transition of the field devices.

• Can I use the F 3417A for high-frequency switching applications?

  Relay amplifiers like the F 3417A are designed for safety shutdown functions. Due to the mechanical nature of relays, they are not suitable for high-frequency pulse-width modulation (PWM) or rapid cycling; use solid-state outputs for those specific tasks.
